Agilent 6890 Gas Chromatograph Service Manual
Micro-cell Electron Capture Detector (µ-ECD) 341
Replacement procedures
5. Insert the gang fitting through the cutout in the manifold bracket and
install it onto the new manifold assembly so that the tubing runs back
and away from the fitting.
• Be sure the left tube clears the inner edge of the bracket. See
Figure 341-12.
• Be sure that the O-rings are in place.
Tighten the gang fitting screw firmly to compress the O-rings.
6. Route the ribbon cable behind the manifold assembly as shown in
Figure 341-11. Then, slide the manifold and bracket assembly into the
slot until the bracket seats flush against the end of the rails. See
Figure 341-12.

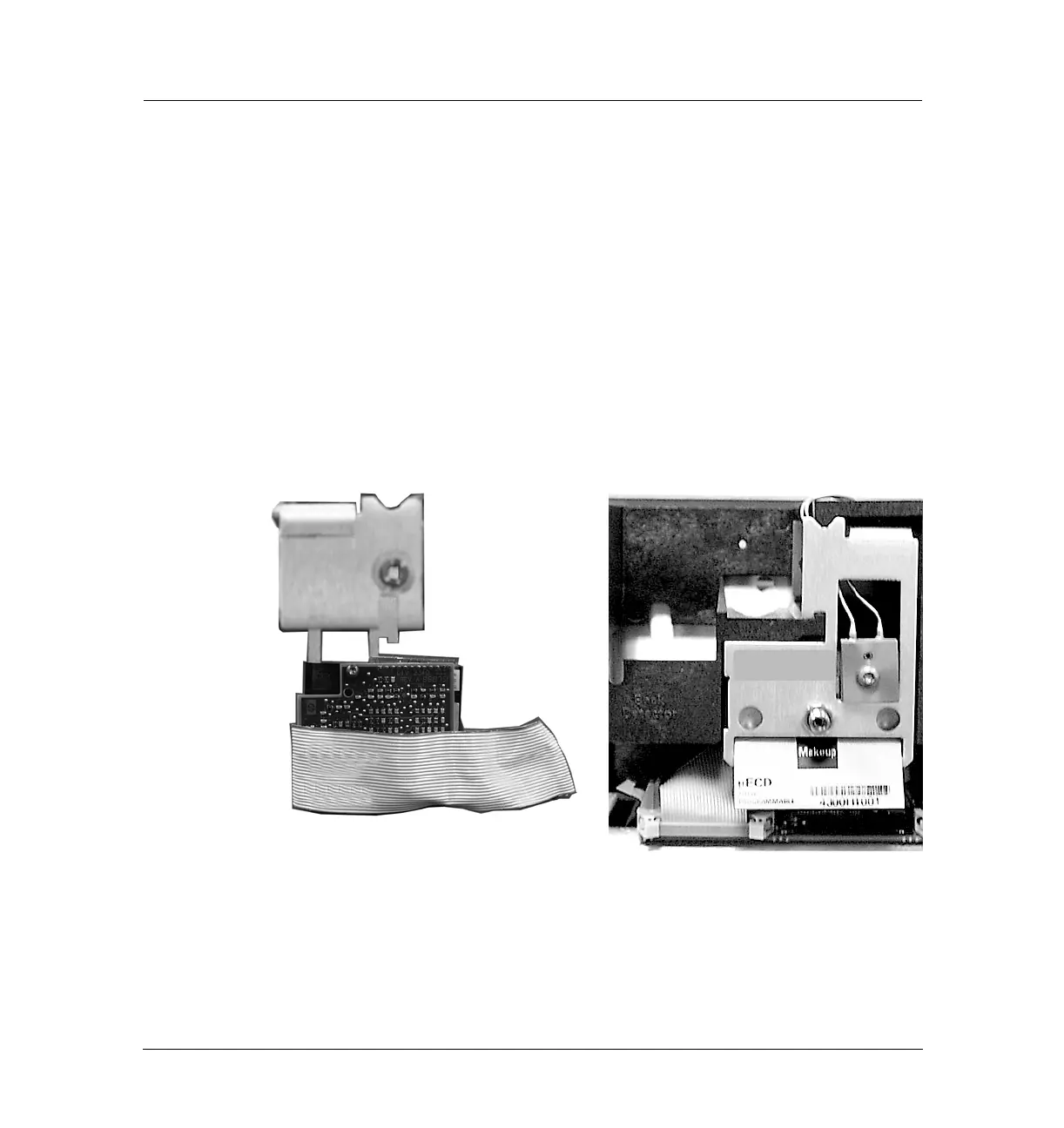

Figure 341-11 Routing the ribbon cable
Made in U. S. A.
Back view of manifold Manifold installed with cable routed to left
