27 of 36
Jun 2001
Detectors
Agilent 6890 Gas Chromatograph Service Manual
Flame Photometric Detector (FPD) 350
Replacement procedures

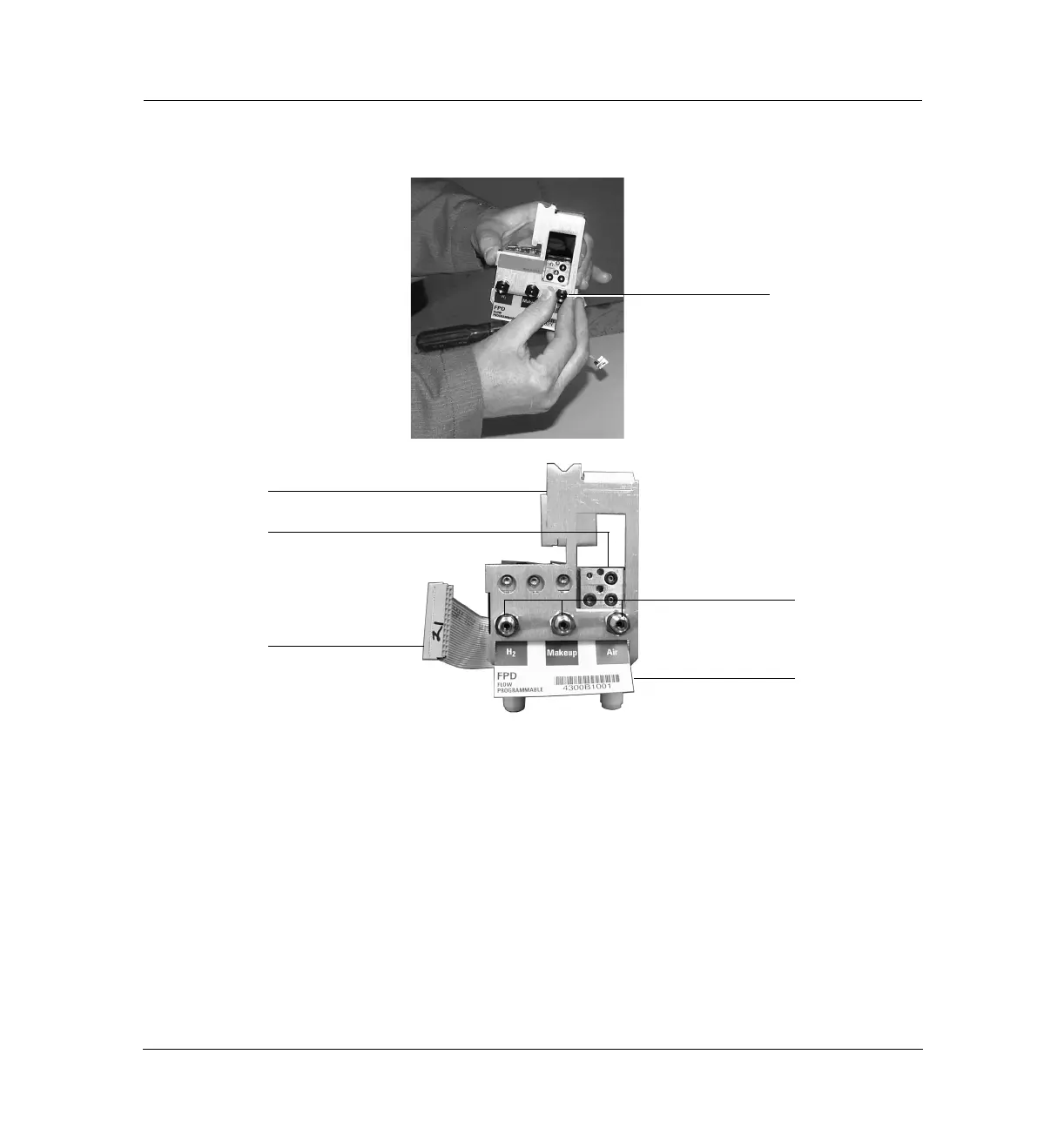

Figure 350-15 Bracket mounted onto the manifold
3. Peel the blank label from its backing and paste it on the mounting bracket
over the screw heads. See Figure 350-16.
4. If the tubing from the gang fitting bends to the left, reshape it so that it
bends up and back from the block as shown in Figure 350-17.
5. Insert the gang fitting through the cutout in the manifold bracket and
install it onto the new manifold assembly so that the tubing runs back
and away from the fitting.
Finger-tighten nuts.
Do not use a wrench.
7/16-inch hex nuts
Mounting bracket
Label ID tag through
Ribbon cable
slot in bracket
Gang fitting installs here
