350 Flame Photometric Detector (FPD)
Replacement procedures
28 of 36
Jun 2001
Detectors
Agilent 6890 Gas Chromatograph Service Manual
• Be sure the left tube clears the inner edge of the bracket. See
Figure 350-17.
• Be sure that the O-rings are in place.
Tighten the gang fitting screw firmly to compress the O-rings.
6. Route the ribbon cable behind the manifold assembly as shown in
Figure 350-16. Then, slide the manifold and bracket assembly into the
slot until the bracket seats flush against the end of the rails. See
Figure 350-17.

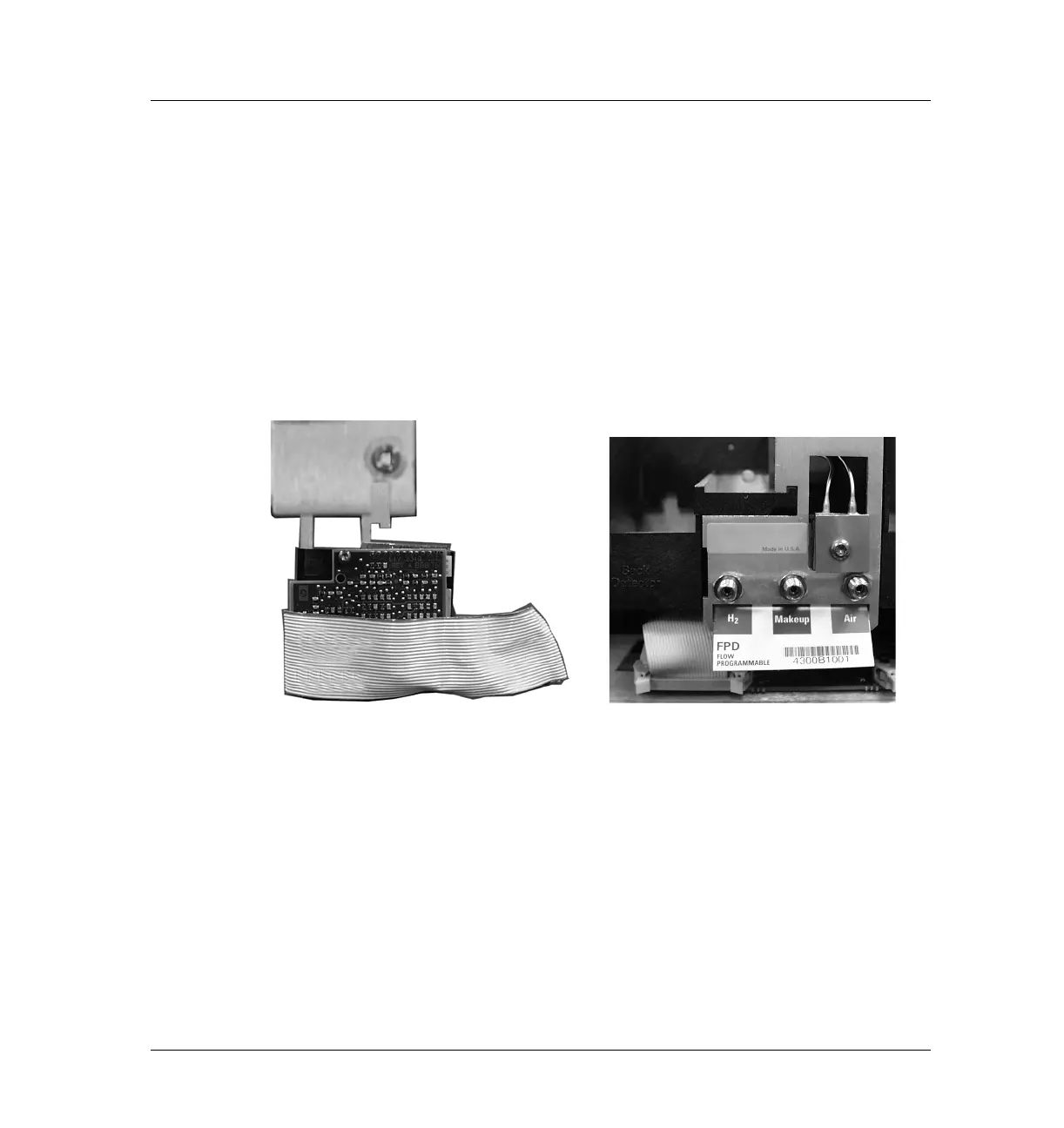

Figure 350-16 Routing the ribbon cable
Back view of manifold
Manifold installed with cable routed to left
