Agilent 6890 Gas Chromatograph Service Manual
Power/Electronics Replacement 430
Installing an MIO card (6890A and 6890 Plus)

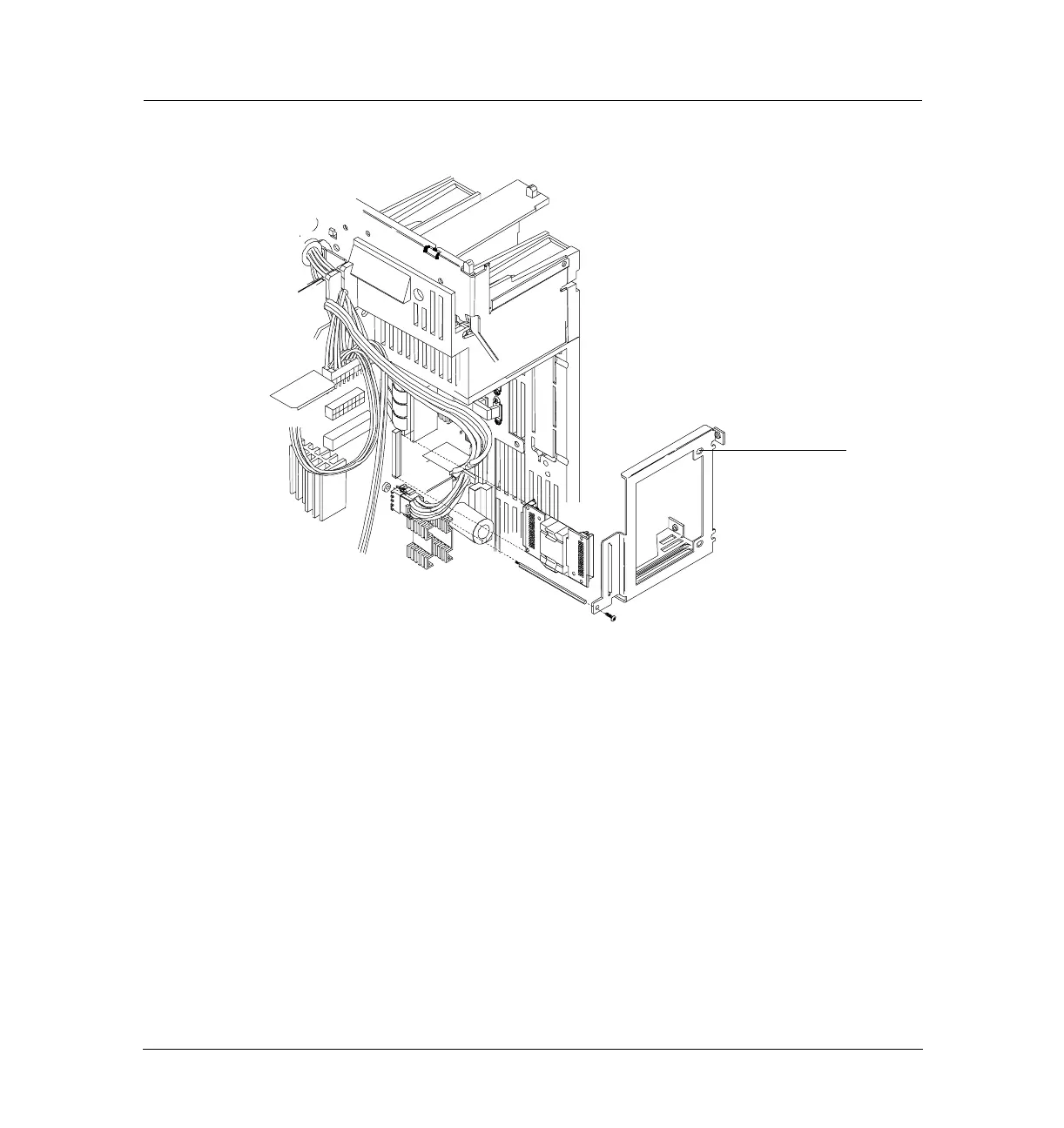

Figure 430-7 Installing the MIO support bracket and jumper card
8. Screw the bracket onto the standoff using a Torx T-10 screw. Do not fully
tighten this screw yet.
9. From the back of the instrument, secure the bracket with three T-20
screws, starting with the bottom right screw.
Insert from rear
of instrument
