510 Environmental
Benchtop space requirements
4 of 6
Jun 2001
Site Preparation
Agilent 6890 Gas Chromatograph Service Manual

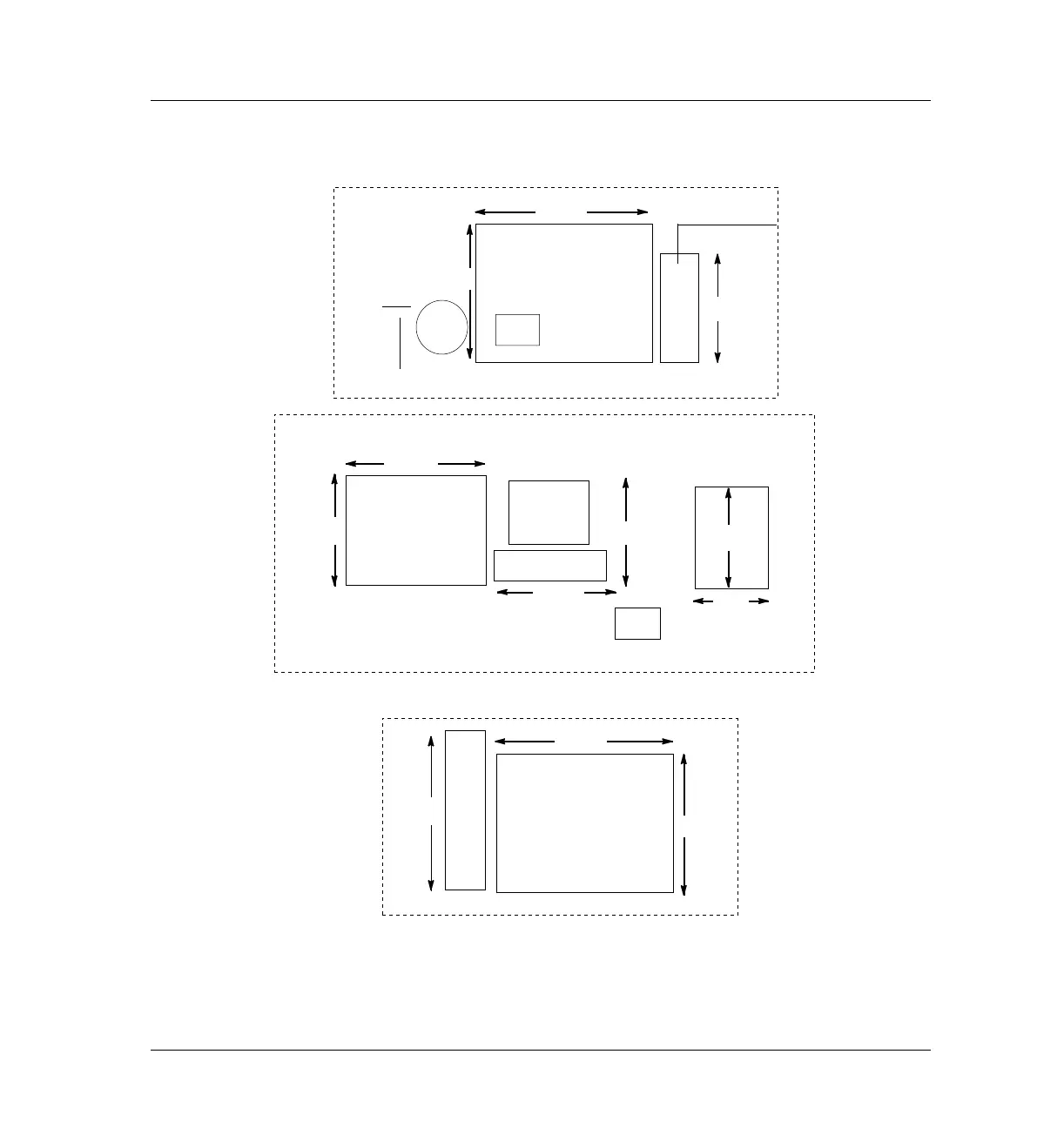

Figure 510-1 Common GC-system configurations—top view
59* cm
50 cm
50 cm
47 cm
54 cm
44 cm
40 cm
28 cm
23 cm
65 cm
17 cm
GC
59* cm
50 cm
10 cm
31 cm
GC with Automatic Liquid Sampler
GC with ChemStation
GC with 5972A Mass Selective Detector
*68 cm for non-EPC version.
Tra y—30.3 cm
left of GC
ALS Controller
Injector—44 cm
above GC
Computer
Keyboard
GC
Printer
GC
7673
59 cm
Mouse pad
