Cabling Configuration and Electronics
Agilent 6890 Gas Chromatograph Service Manual

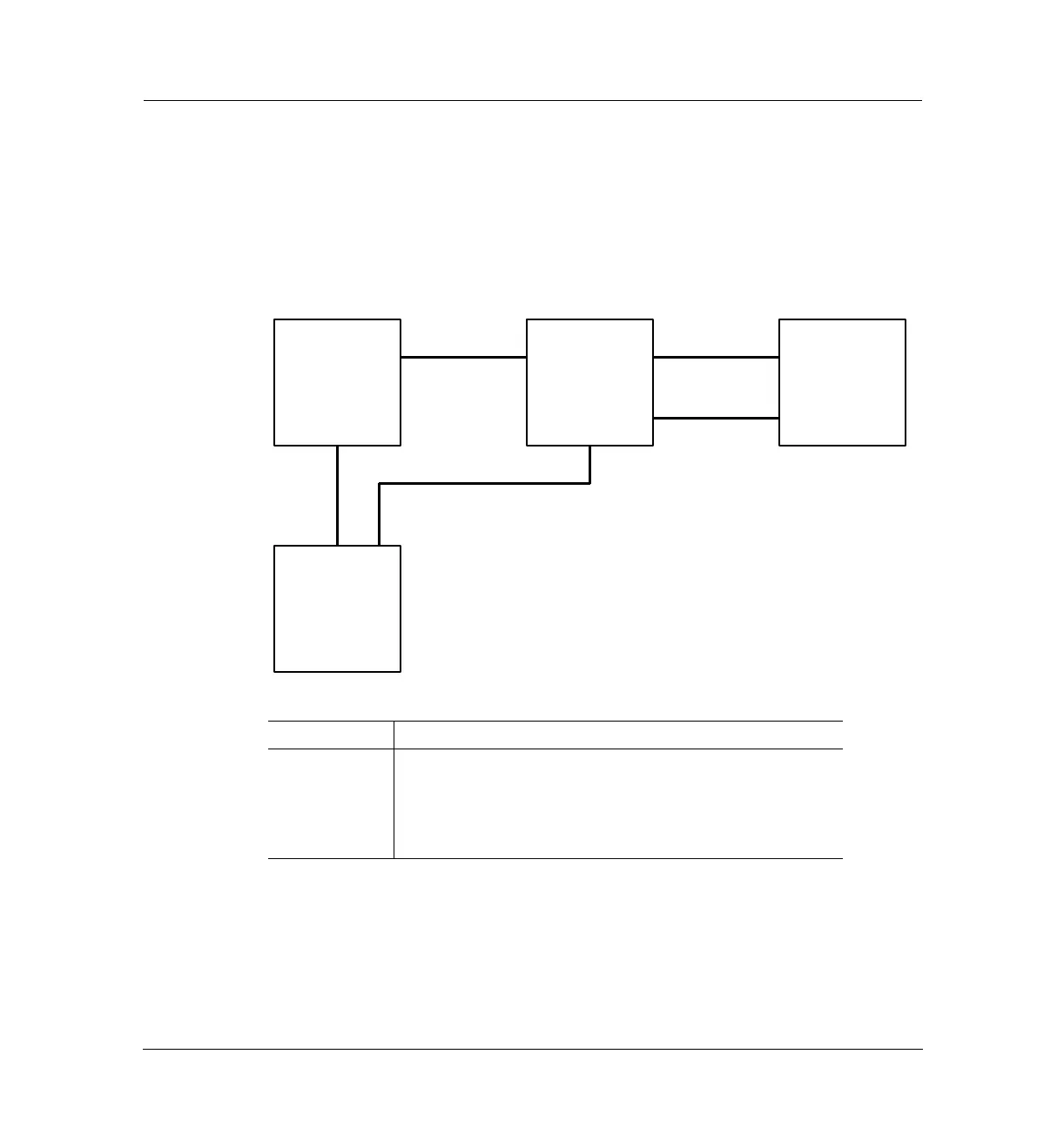

Cabling Diagrams, 6890A and 6890 Plus 1010
6890 GC Mass Selective Detector GC ChemStation GC Automatic Liquid Sampler
6890 GC
Mass Selective Detector
GC ChemStation
GC Automatic Liquid Sampler
Figure 1010-3
Number Part no. and description
1 G1530-60930, 2-m APG remote cable, 9-pin male/9-pin male
2 8120-3446, 2-m GPIB cable
3 G1530-60600, 2-m RS-232 cable, 9-pin female/9-pin female
4 G1530-60930, 2-m APG remote cable, 9-pin male/9-pin male
6890 GC
GC ChemStation
MSD
ALS
1 APG remote
3 RS-232
4 APG remote
2 GPIB
2 GPIB
The 7683 ALS
controller is internal to
the 6890 Plus GC.
The G2613A injector
and G2614A tray
plug into the GC.
