1010 Cabling Diagrams, 6890A and 6890 Plus
6890 GC 35900C/D/E Analog-to-Digital Converter GC Automatic Liquid Sampler
8 of 14
Jun 2001
Cabling Configuration and Electronics
Agilent 6890 Gas Chromatograph Service Manual
6890 GC
35900C/D/E Analog-to-Digital Converter
GC Automatic Liquid Sampler

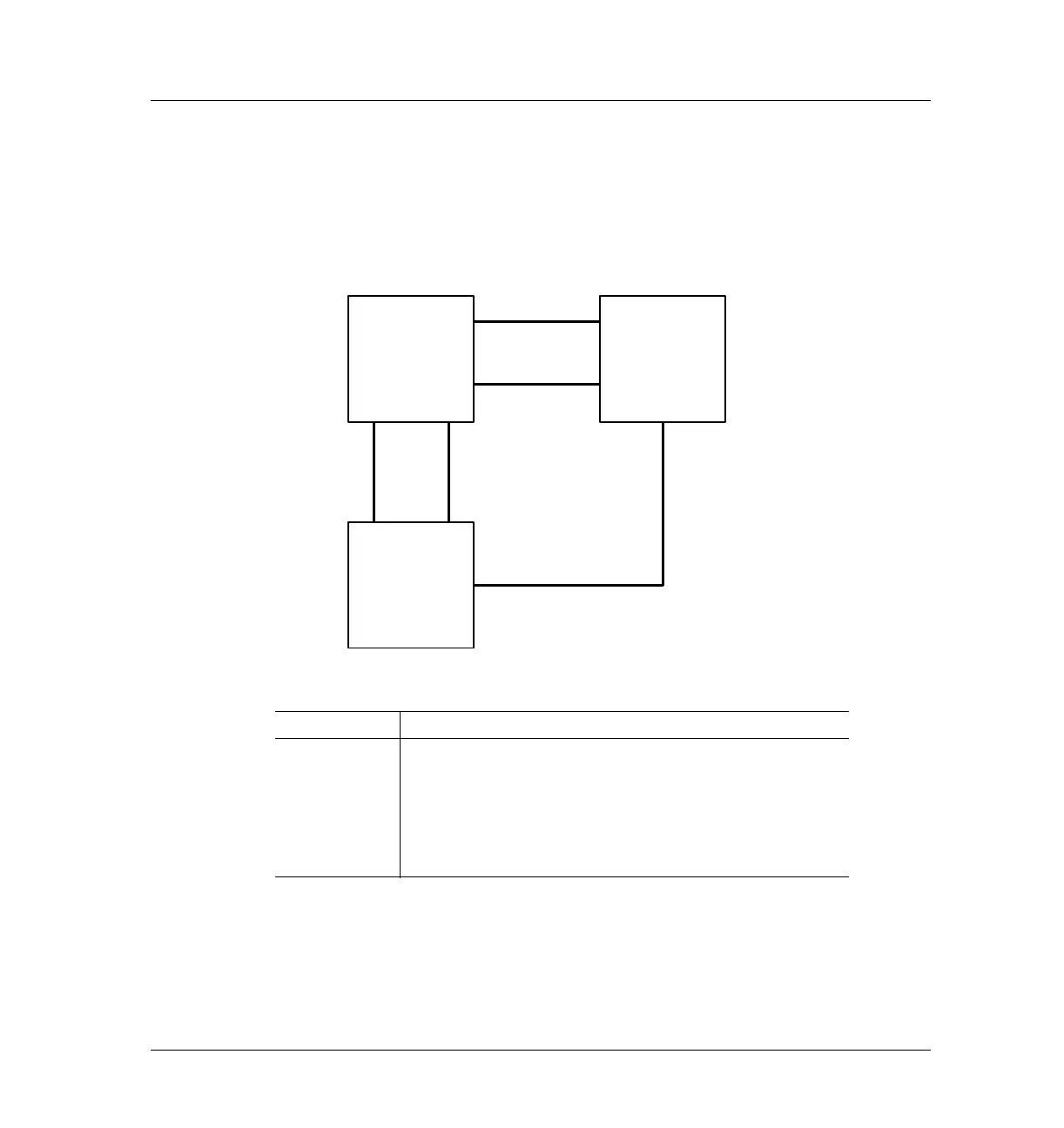

Figure 1010-8
Number Part no. and description
1 G1530-60600, 2-m RS-232 cable, 9-pin female/9-pin female
2 G1530-60930, 2-m APG remote cable, 9-pin male/9-pin male
3 G1530-60930, 2-m APG remote cable, 9-pin male/9-pin male
4 G1530-60570, 2-m Analog cable, 6-pin
5 35900-60850, BCD cable
6890 GC
ALS
1 RS-232
2 APG remote
3 APG remote
4 Analog
33900 C/D/E
A/D converter
5 BCD
The 7683 ALS
controller is internal to
the 6890 Plus GC.
The G2613A injector
and G2614A tray
plug into the GC.
To Next Page
