Cabling Configuration and Electronics
Agilent 6890 Gas Chromatograph Service Manual

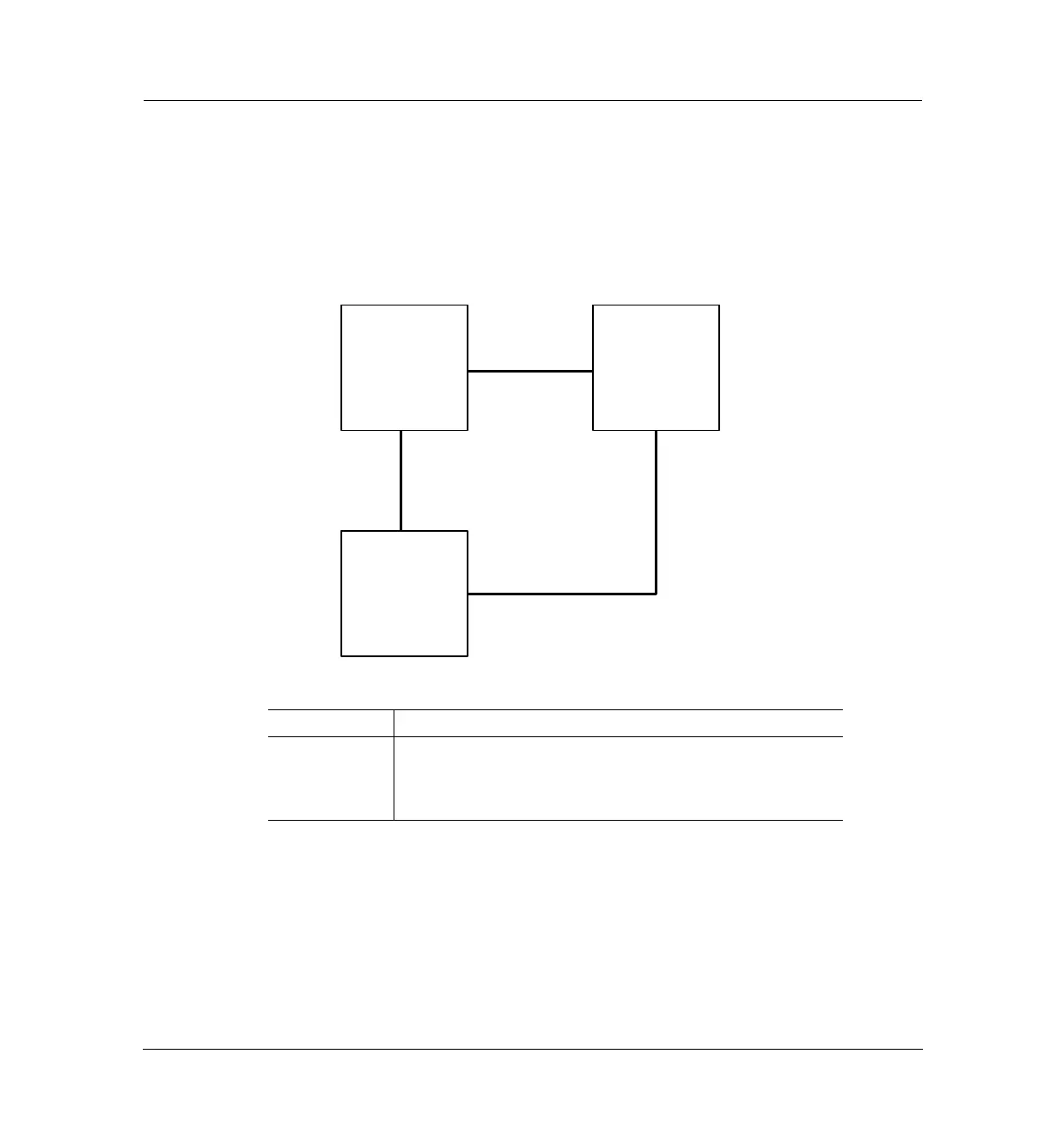

Cabling Diagrams, 6890A and 6890 Plus 1010
6890 GC 7694 Headspace Sampler GC ChemStation
6890 GC
7694 Headspace Sampler
GC ChemStation
Figure 1010-9
Number Part no. and description
1 G1290-60575, APG remote cable, 3-pin male/4-pin male
2 8120-3446, 2-m GPIB cable
3 24542U, RS-232 cable, 9-pin female/9-pin female
6890 GC
7694 HS
1 APG remote
2 GPIB
GC ChemStation
3 RS-232
