1010 Cabling Diagrams, 6890A and 6890 Plus
6890 GC 7694 Headspace Sampler 3396B/C INET Integrator
10 of 14
Jun 2001
Cabling Configuration and Electronics
Agilent 6890 Gas Chromatograph Service Manual
6890 GC
7694 Headspace Sampler
3396B/C INET Integrator

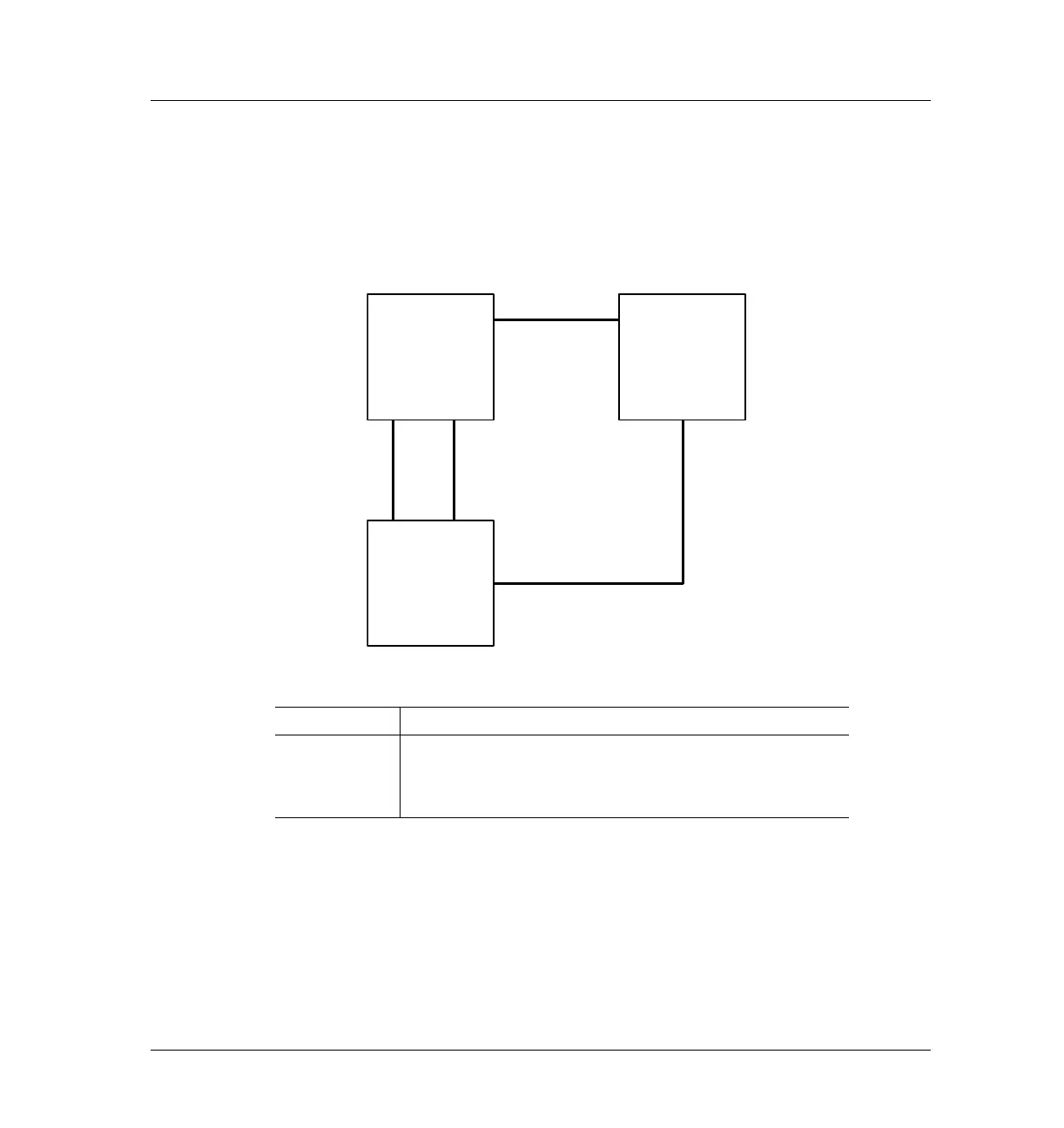

Figure 1010-10
Number Part no. and description
1 G1290-60575, APG remote cable, 3-pin male/4-pin male
2 Two 82167-60003, 5-m INET cables
3 03396-60530, RS-232 cable, 15-pin male/9-pin female
6890 GC
2 INET
INET Integrator
7694 HS
1 APG remote
3 RS-232
