11 of 14
Jun 2001
Cabling Configuration and Electronics
Agilent 6890 Gas Chromatograph Service Manual

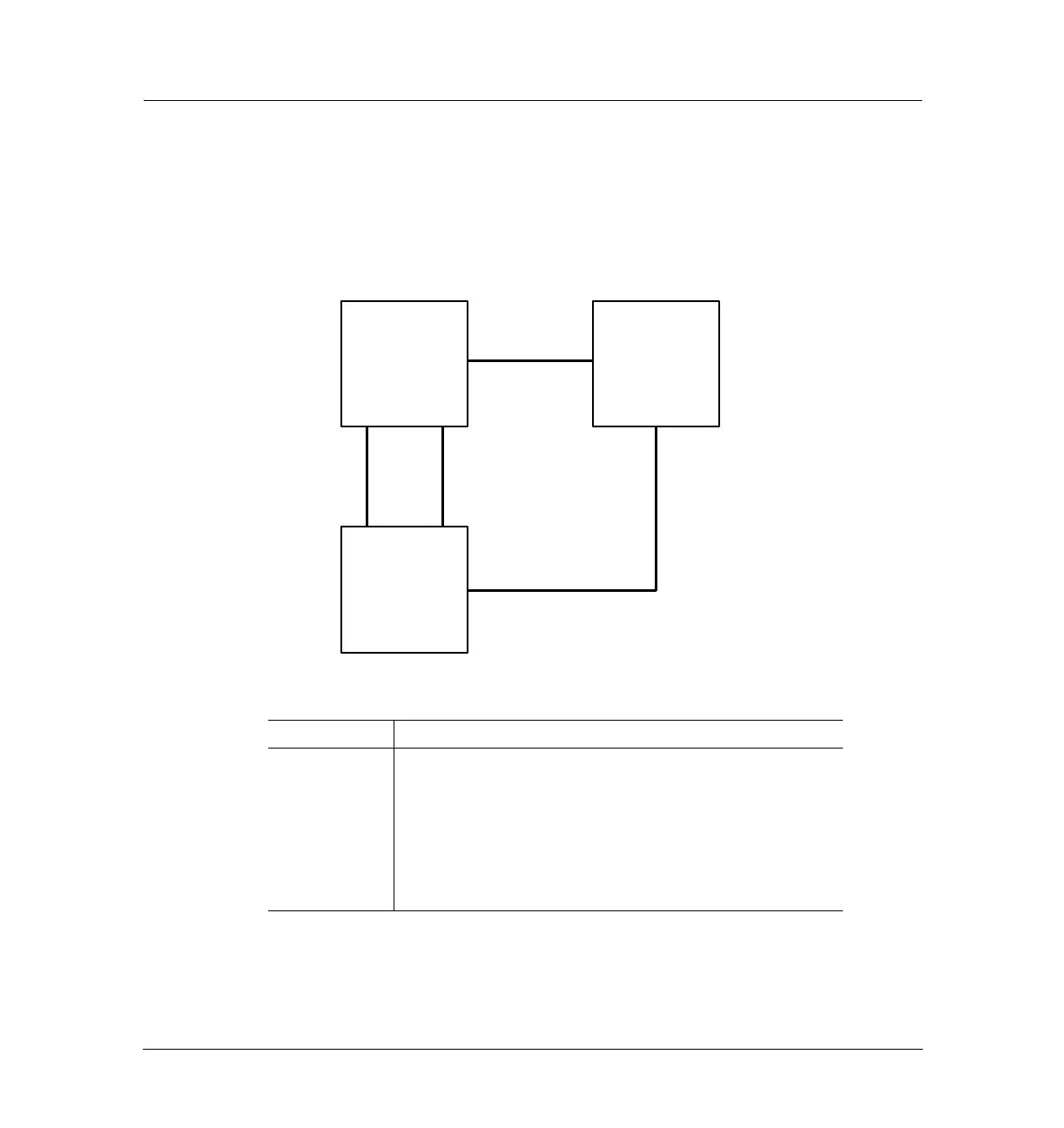

Cabling Diagrams, 6890A and 6890 Plus 1010
6890 GC 7694 Headspace Sampler Non-INET Integrator
6890 GC
7694 Headspace Sampler
Non-INET Integrator
Figure 1010-11
Number Part no. and description
1 G1290-60575, APG remote cable, 3-pin male/4-pin male
2 03396-61010, APG remote cable, 9-pin/15-pin (for 3395B/
3396C)
OR 03396-61020, APG remote cable, 9-pin/15-pin (for 3395A/
3396B)
3 G1530-60570, 2-m Analog cable, 6-pin
4 03396-60530, RS-232 cable, 15-pin male/9-pin female
6890 GC
3 Analog
Non-INET
7694 HS
1 APG remote
4 RS-232
2 APG remote
Integrator
To Next Page
