1010 Cabling Diagrams, 6890A and 6890 Plus
6890 GC 7694 Headspace Sampler
12 of 14
Jun 2001
Cabling Configuration and Electronics
Agilent 6890 Gas Chromatograph Service Manual
6890 GC
7694 Headspace Sampler

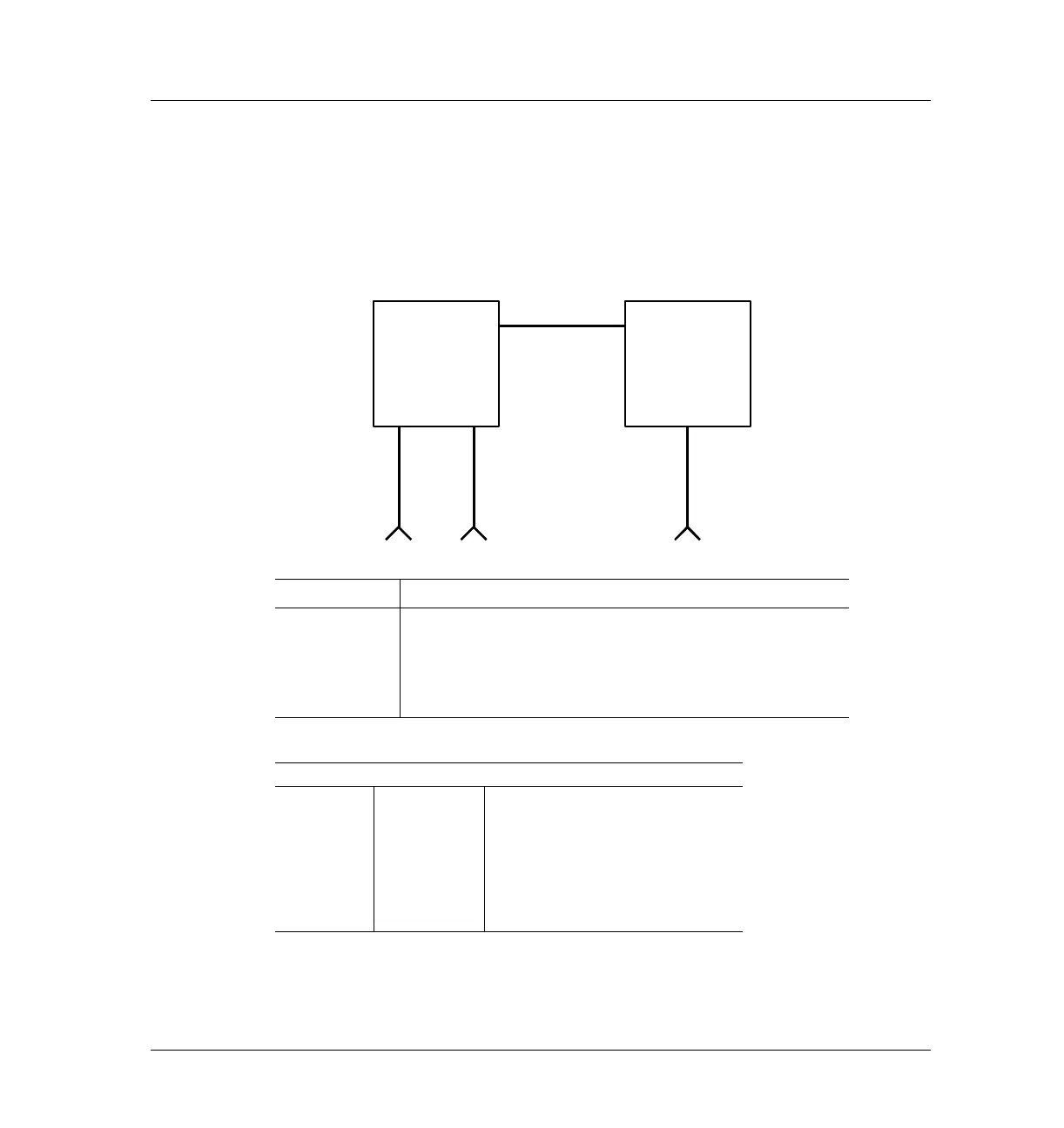

Figure 1010-12
Number Part no. and description
1 G1290-60575, APG remote cable, 3-pin male/4-pin male
2 35900-60670, 2-m APG remote cable, 9-pin male/spade lugs
3 G1530-60560, Analog cable, 6-pin/spade lugs
4 03396-60570, Binary-coded decimal cable
G1530-60560 analog cable spade lug identification
Pin Color Signal
1 Black 1 mV COM
2 Red 1 V and 1 DV COM
3 White 1 mV
4 Orange 1 V
5 Brown Chassis ground
6 Blue 1 DV
6890 GC 7694 HS
1 APG remote
2 APG remote
3 Analog 4 BCD
To Next Page
