Agilent Technologies 6890 Plus User Manual

1015 Cabling Diagrams, 6890N
6890N GC Mass Selective Detector GC ChemStation/Cerity Headspace Sampler
14 of 14
Jun 2001
Cabling Configuration and Electronics
Agilent 6890 Gas Chromatograph Service Manual
6890N GC
Mass Selective Detector
GC ChemStation/Cerity
Headspace Sampler

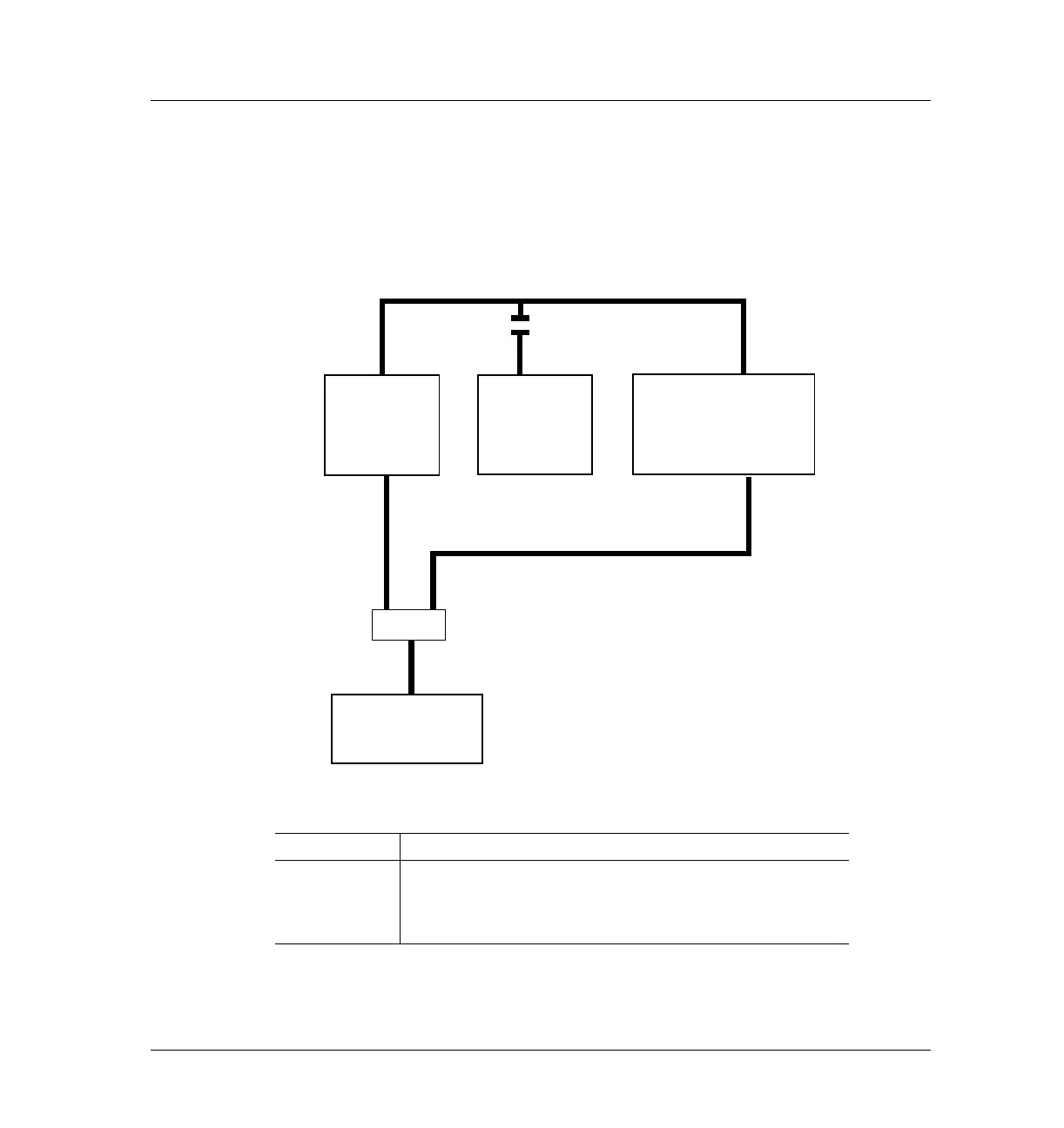

Figure 1015-12
Number Part no. and description
1 G1530-61200, 2m APG Y-cable
2 G1530-61485, Cable, 100 Base T-LAN
3 G1290-60575, Headspace Remote Start/Stop cable
6890N GC
GC ChemStation
MSD
2 LAN
2 LAN
The 7683 ALS
controller is internal to
the 6890N GC.
The G2613A injector
and G2614A tray
plug into the GC.
Hub
7694
1 APG Y-cable
3 Headspace
Remote Start/Stop Cable
