1 of 18
Jun 2001
Cabling Configuration and Electronics
Agilent 6890 Gas Chromatograph Service Manual
1020 Cable Electronics
Analog signal outputs
There are two channels of analog output available on the back panel, labeled
Sig 1 and Sig 2. Two cables are available — one for 3395/6 series integrators
and one for general use.

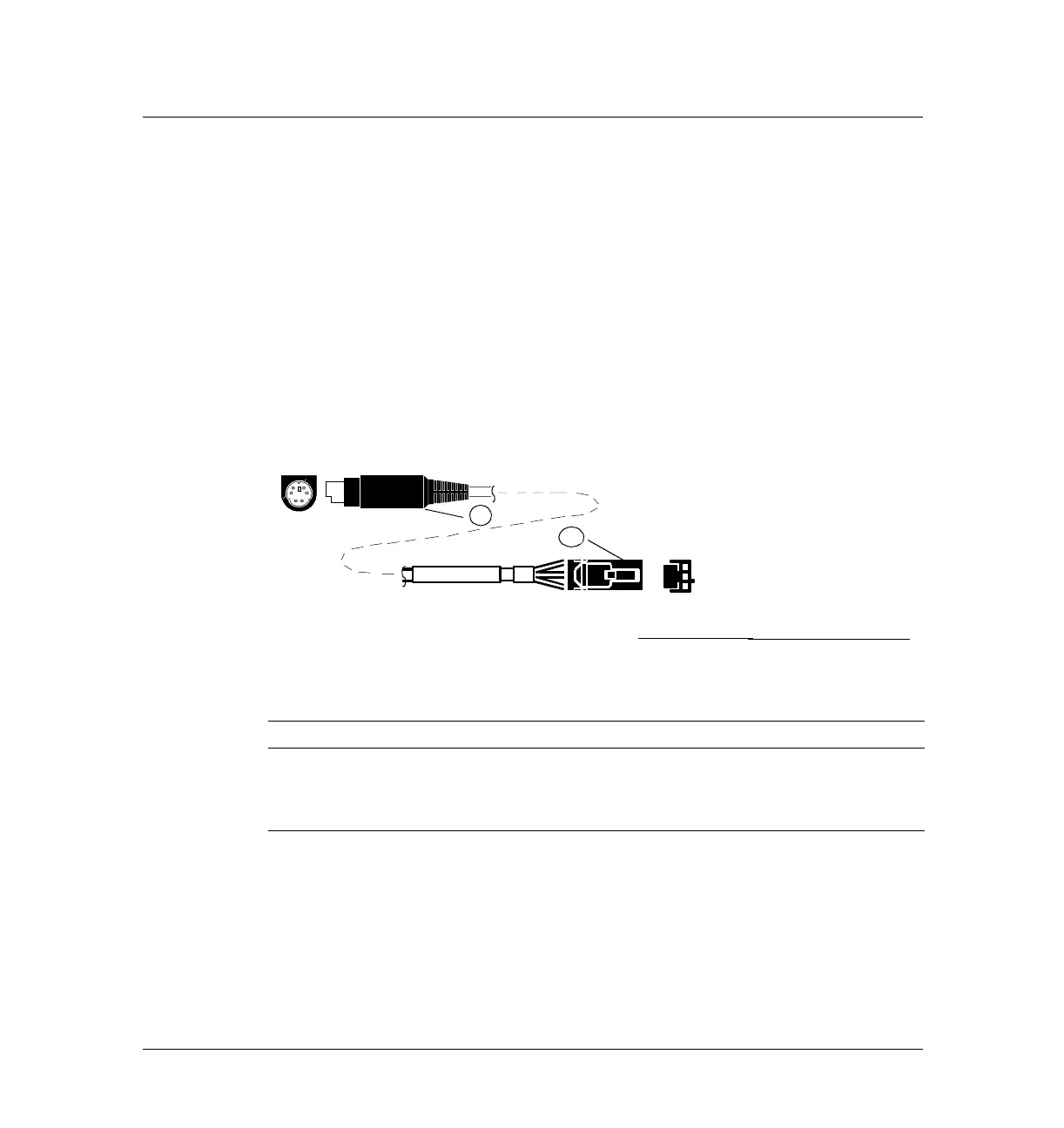

Analog cable — GC to 3395A/B or 3396B/C Integrators and 35900
C/D/E Analog to Digital Interface instrument
Connector 1 Signal Name Color Connector 2
4 1 V Black 3
2 Common White 2
Shell Ground Orange 1
4
Part no. G1530-60570
*1 next to triangle etched on connector
56
3
1
2
G1530-60570
3
2
1*
1
2
