1020 Cable Electronics
Remote
14 of 18
Jun 2001
Cabling Configuration and Electronics
Agilent 6890 Gas Chromatograph Service Manual

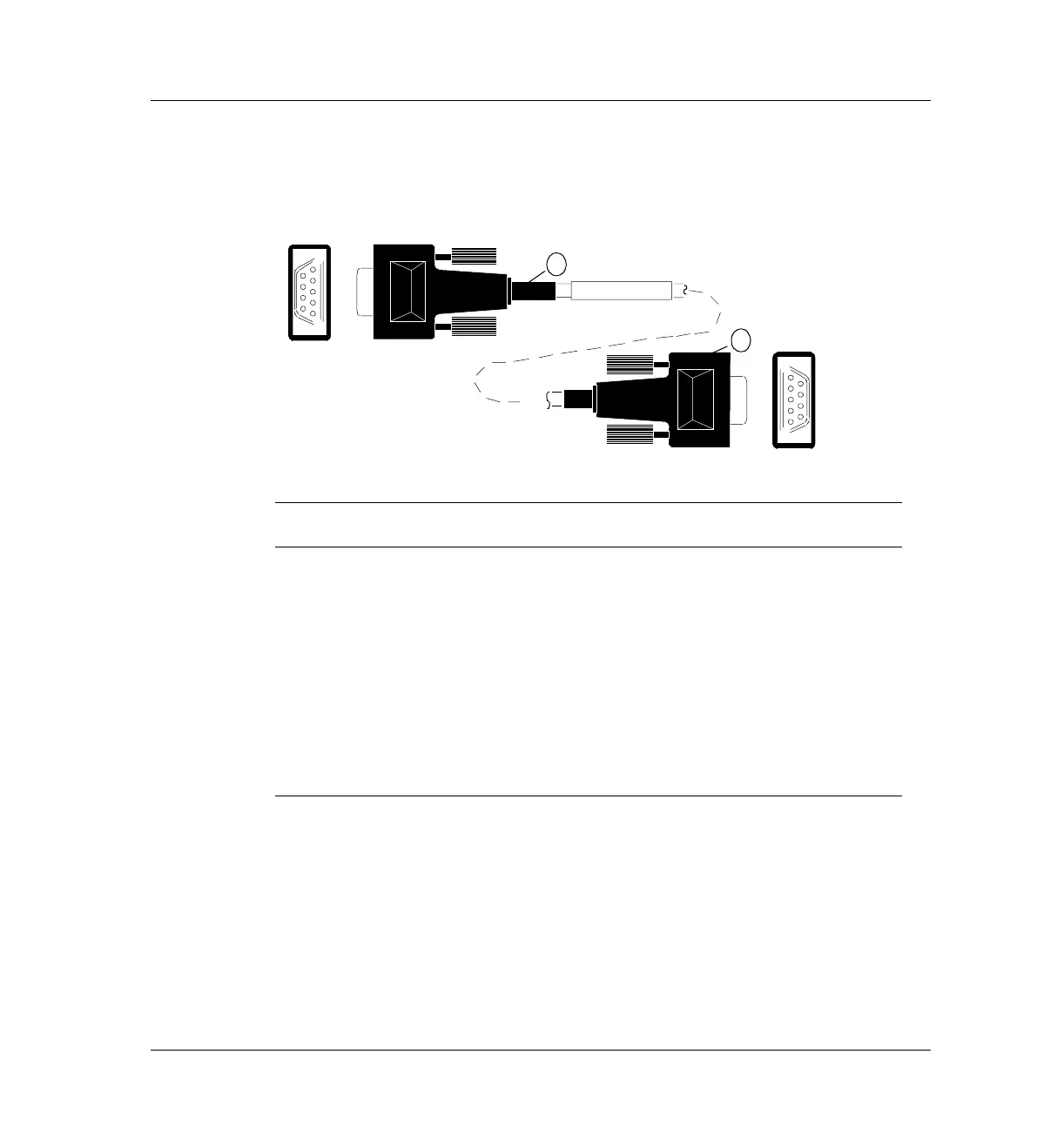

Cable pinouts, GC to 35900C, D, E/MSD/Sampler, 2 meters
Connector 1
(male)
Signal name
Connector 2
(male)
1 GND 1
2 Prepare 2
3 Start 3
4 Shut down (6890A/Plus); start relay (6890N) 4
5 Reserved (6890A/Plus); start relay (6890N) 5
6 Power on (6890A/Plus); no connection (6890N) 6
7 Ready 7
8 Stop 8
9 Start request (6890A/Plus); no connection (6890N) 9
6
9
1
5
5
1
9
6
G1530-60930
Part no. G1530-60930
9
6
5
1
1
2
