Cabling Configuration and Electronics
Agilent 6890 Gas Chromatograph Service Manual
Cable Electronics 1020
Remote

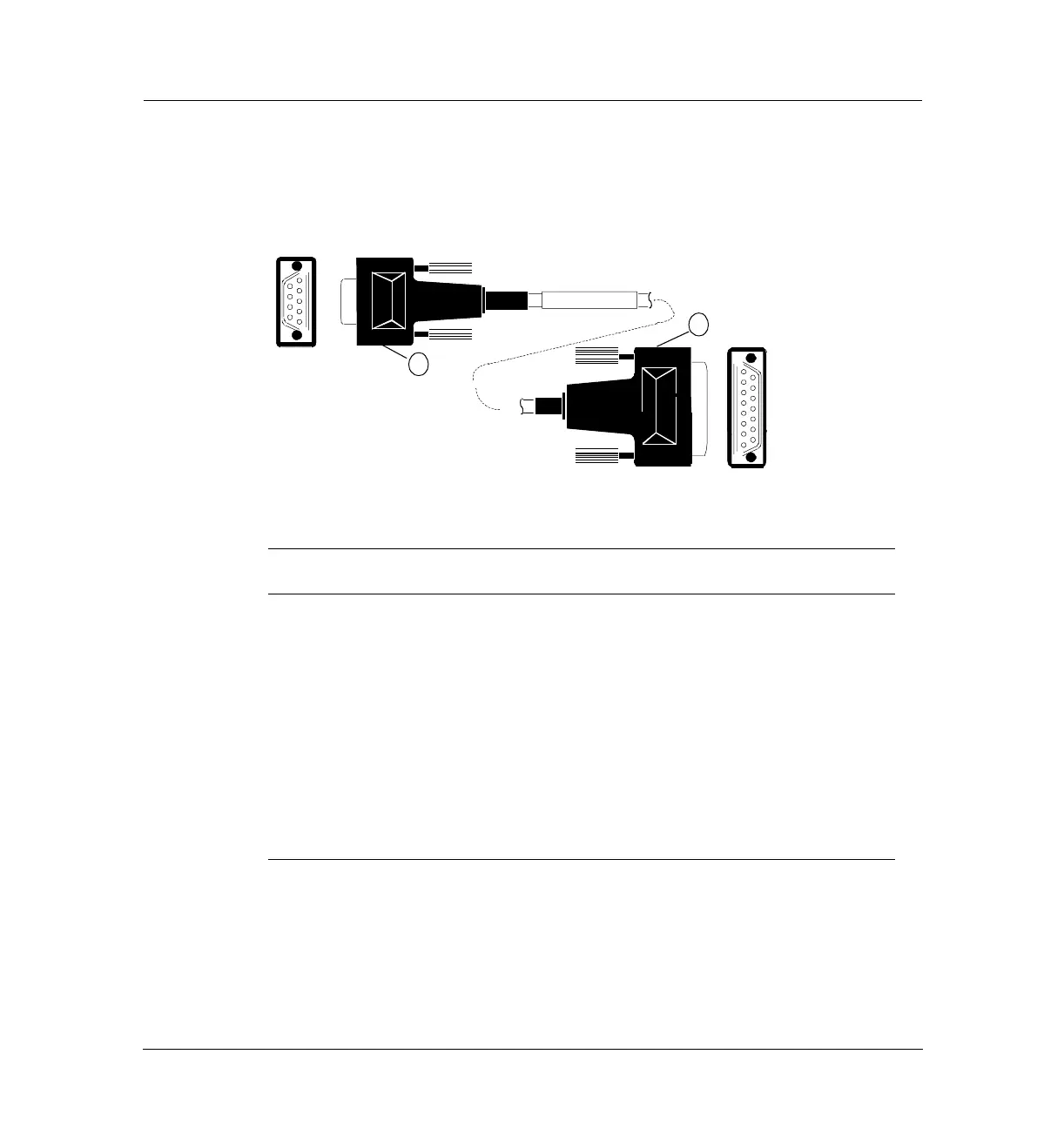

Cable pinouts, 6890 GC to 3395A/3396B Integrator
Connector 1
9 pin (male)
Signal name
Connector 2
15 pin (male)
1 GND 9 — Ground
2 Prepare NC*
3 Start 3 — Start in
4 Shut down (6890A/Plus); start relay (6890N) NC*
5 Reserved (6890A/Plus); start relay (6890N) NC*
6 Power on (6890A/Plus); no connection (6890N) NC*
7 Ready 14 — Ready
out
8 Stop NC*
9 Start request (6890A/Plus); no connection (6890N) NC*
*NC = no connection
6
9
1
5
8
1
15
9
03396-61020
Part no. 03396-61020
2
1
