Cabling Configuration and Electronics
Agilent 6890 Gas Chromatograph Service Manual
Cable Electronics 1020
Remote

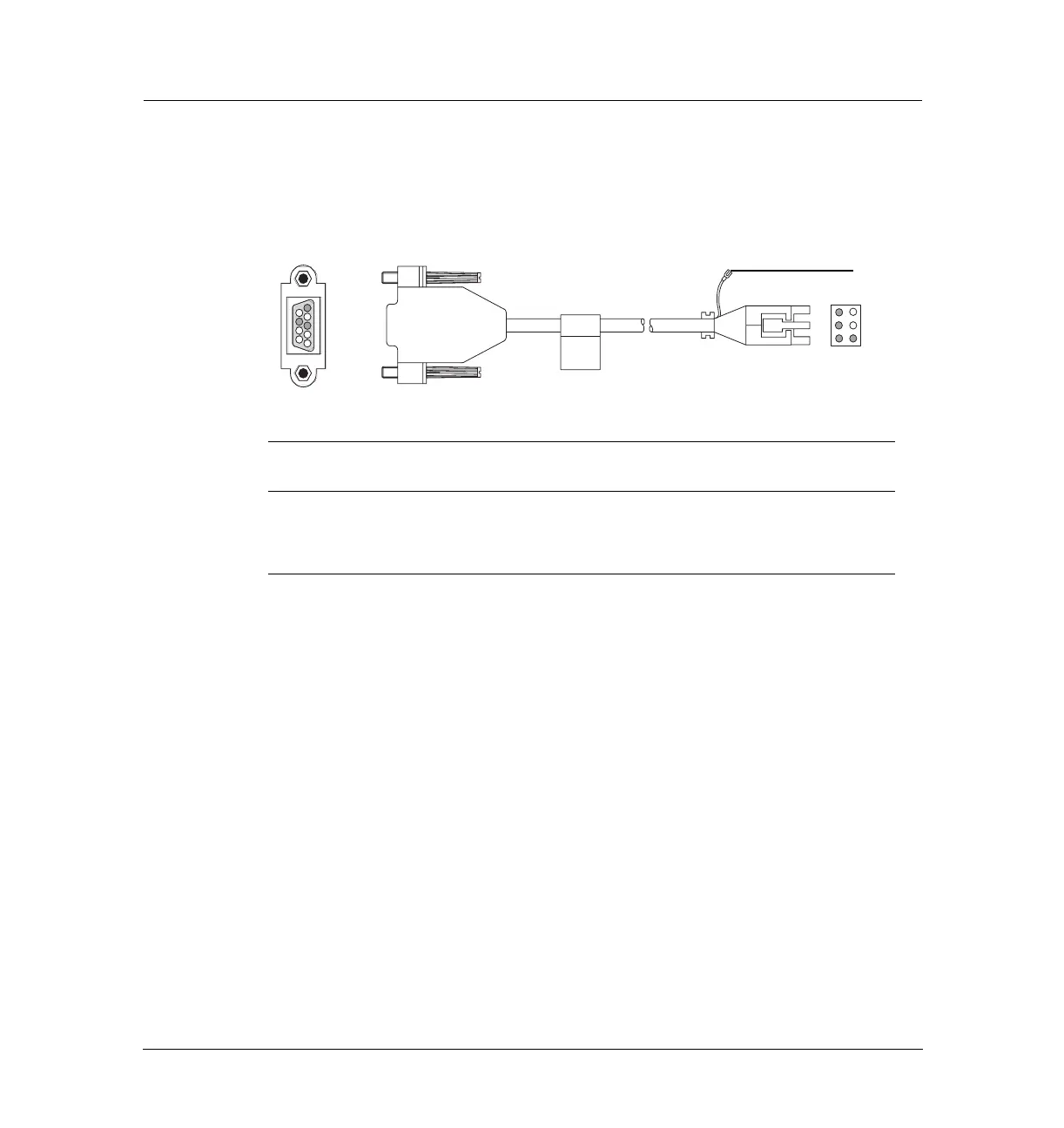

Cable pinouts, 6890 GC to 7694 Headspace Sampler
Connector 1
3-pin male
Signal name
Connector
4-pin male
1 GND 4, 5
3 Start 6
7 Ready 3
Part no. G1290-60575
G1290-
60575
1
3
7
1
3
4
6
To g r ound scr ew
