1020 Cable Electronics
Remote
18 of 18
Jun 2001
Cabling Configuration and Electronics
Agilent 6890 Gas Chromatograph Service Manual

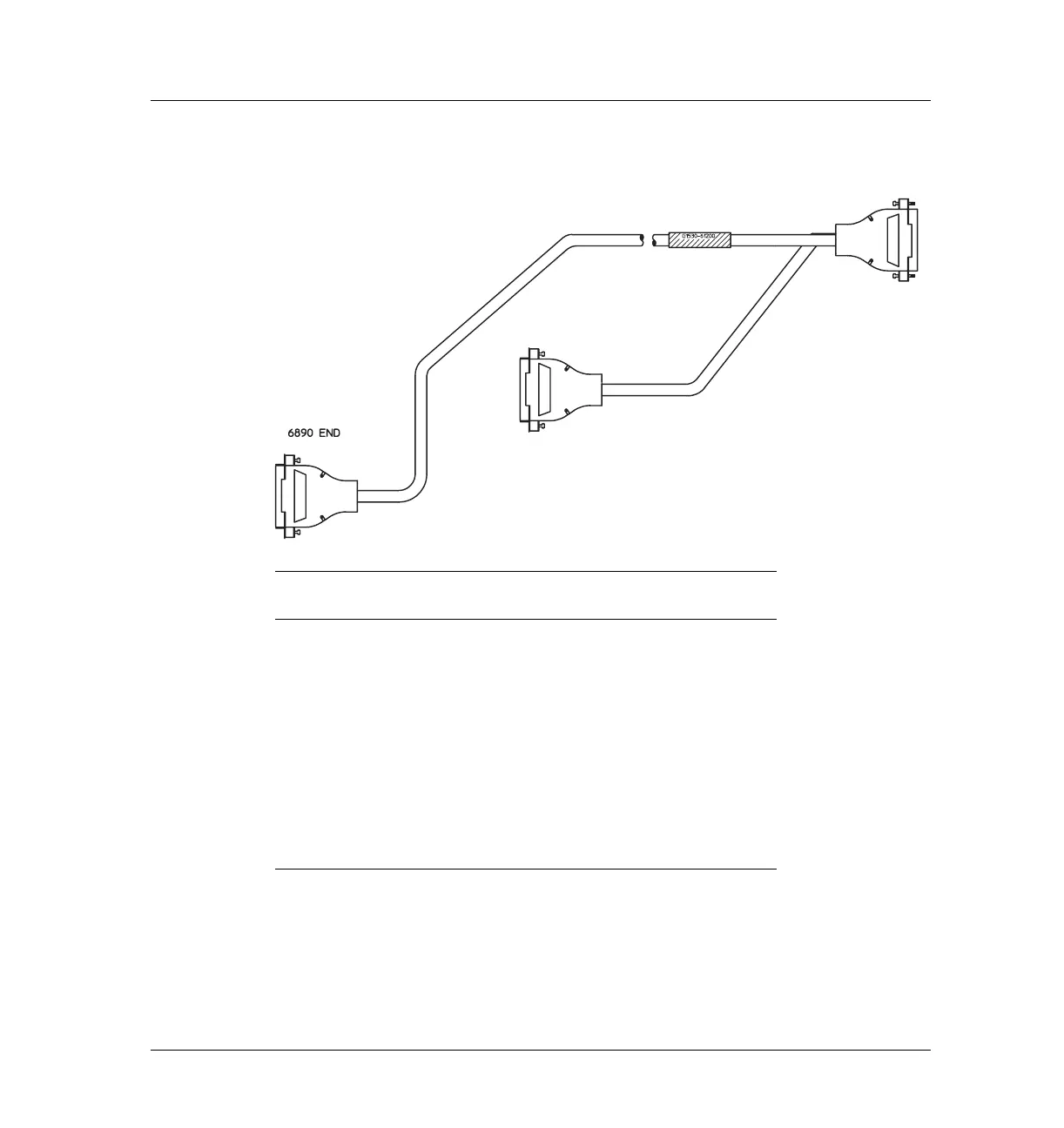

Cable pinouts, APG Remote Y-cable
Connector 1
9 pin (male)
Signal name
1 GND
2 Prepare
3 Start
4 Shut down (6890A/Plus); start relay (6890N)
5 Reserved (6890A/Plus); start relay (6890N)
6 Power on (6890A/Plus); no connection (6890N)
7 Ready
8 Stop
9 Start request (6890A/Plus); no connection (6890N)
Part no. G1530-61200
