7 of 12
Jun 2001
Valves
Agilent 6890 Gas Chromatograph Service Manual
Actuators 1130
Installing the valve actuator drivers
Install the bracket and cabling
1. Install the valve actuators as described earlier in this section before
installing the valve actuator drivers.
2. Screw the valve driver bracket into the right side of the GC using the two
captive screws.

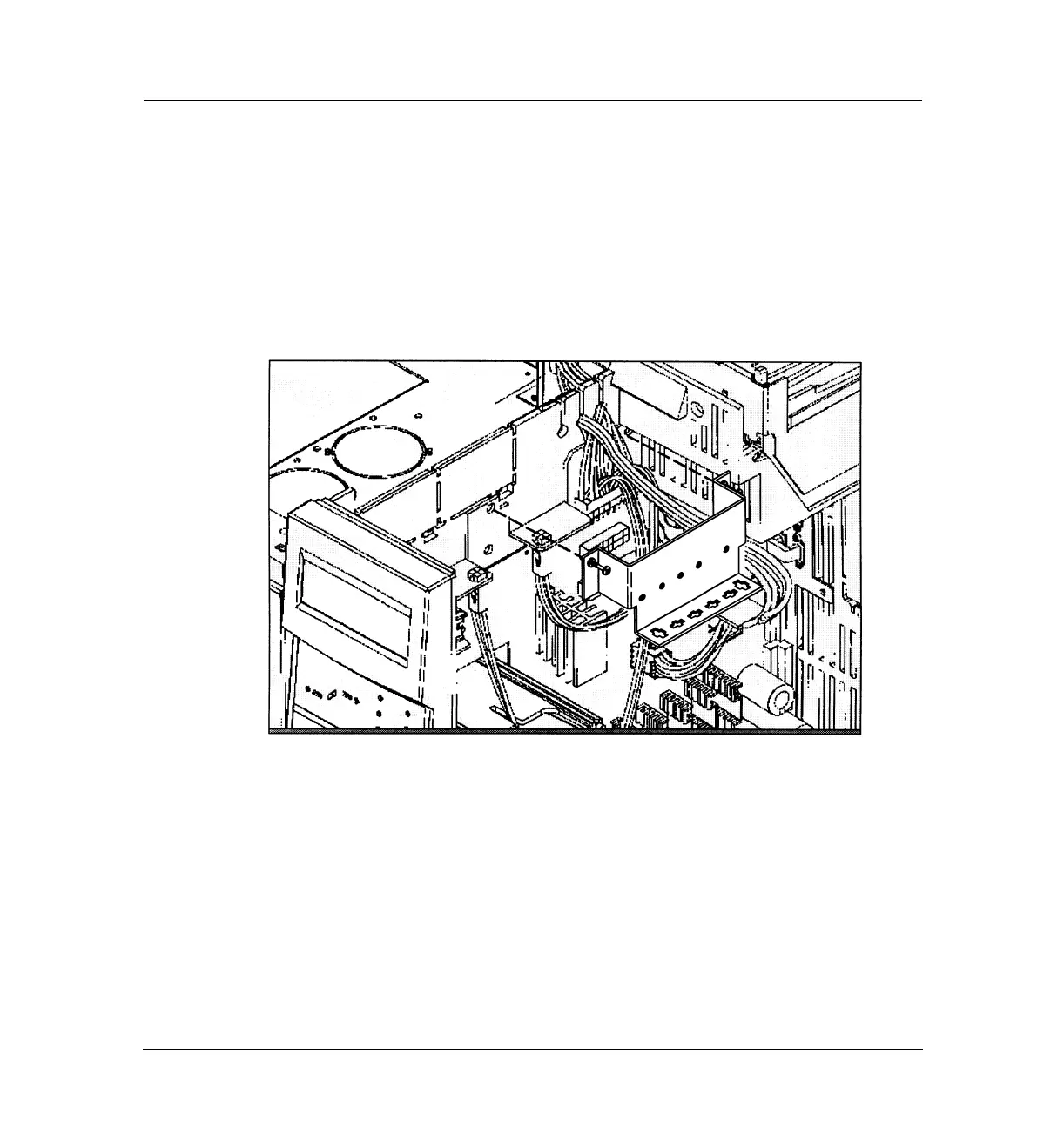

Figure 1130-5 Assembling the valve driver block
3. Plug the connectors on the valve driver cable harness up through the
slots on the valve driver bracket.
Plug the larger 2 × 2 heater sensor connectors (P1, P2) into the outside
slots and the smaller 1 × 2 valve driver connectors (P3 to P6) into the
four middle slots.
