Valves
Agilent 6890 Gas Chromatograph Service Manual

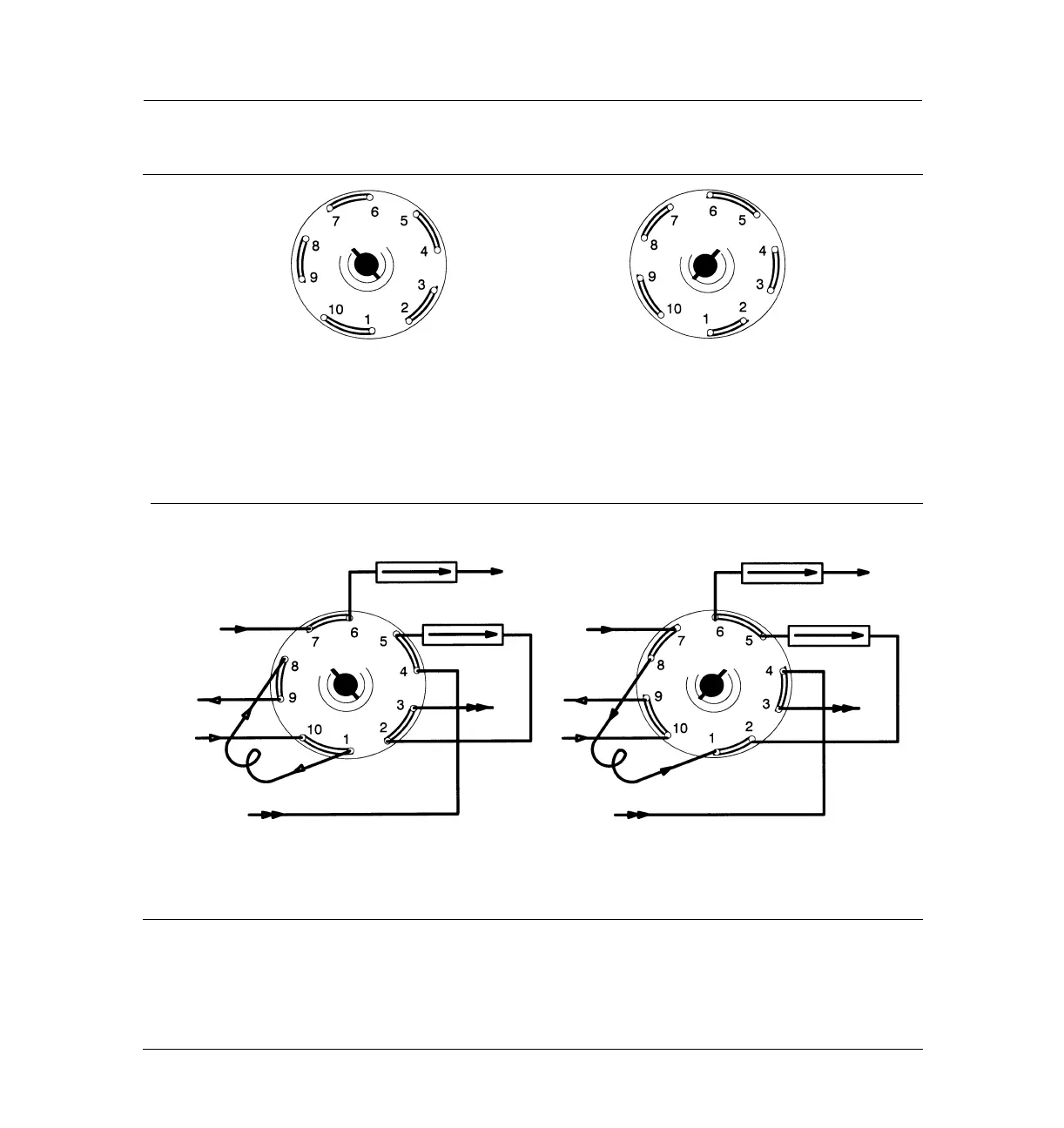

Typical Valve Configurations 1140
OFF ON
Custom Plumbing (Diagram Required), Option 800 or 830
Column
Detector
or 2nd Valve
1st Carrier
Out
S
ample
In
Loop
2nd Carrier
OFF ON
Gas Sampling with Backflush of Precolumn to Vent, Option 801 or 831
Precolumn
Vent
