1310 Inlets
PTV LCO
2
cryo assembly
26 of 36
Jun 2001
Illustrated Parts Breakdown
Agilent 6890 Gas Chromatograph Service Manual
PTV LCO
2
cryo assembly
(part no. G2617–60514)
(Recommended replacement level)

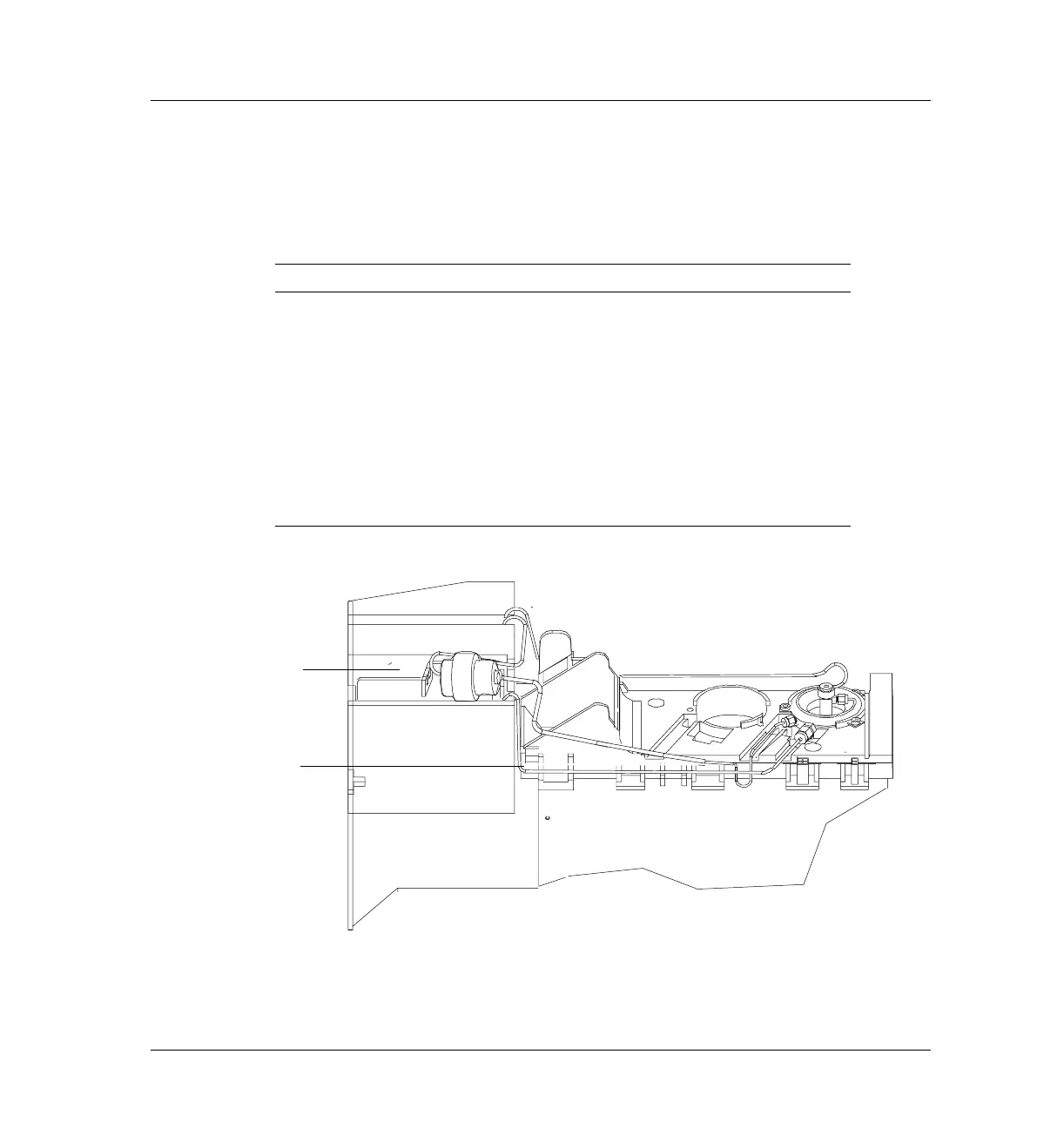

Figure 1310-13 PTV LCO
2
cryo assembly
Description Part no. Qty.
1. PTV LCO
2
brazement (valve to IP tube) G2617-80510 1
2. PTV LCO
2
valve bracket G2617-00010 1
3. CO
2
cryo valve G1565-60545 1
4. Cap prot W/O Flg 1401-0044 1
5. Scr-mach 8-32.375-inch 2510-0102 2
6. 1/8-inch male conn W/O O-ring G1543-80025 1
7. Gland seal LCO
2
G1565-20590 1
8. TFE seal G1565-20840 1
2,3
1
