Illustrated Parts Breakdown
Agilent 6890 Gas Chromatograph Service Manual
Inlets 1310
PTV LN
2
cryo assembly
PTV LN
2
cryo assembly
(part no. G2619–60504)
(Recommended replacement level)

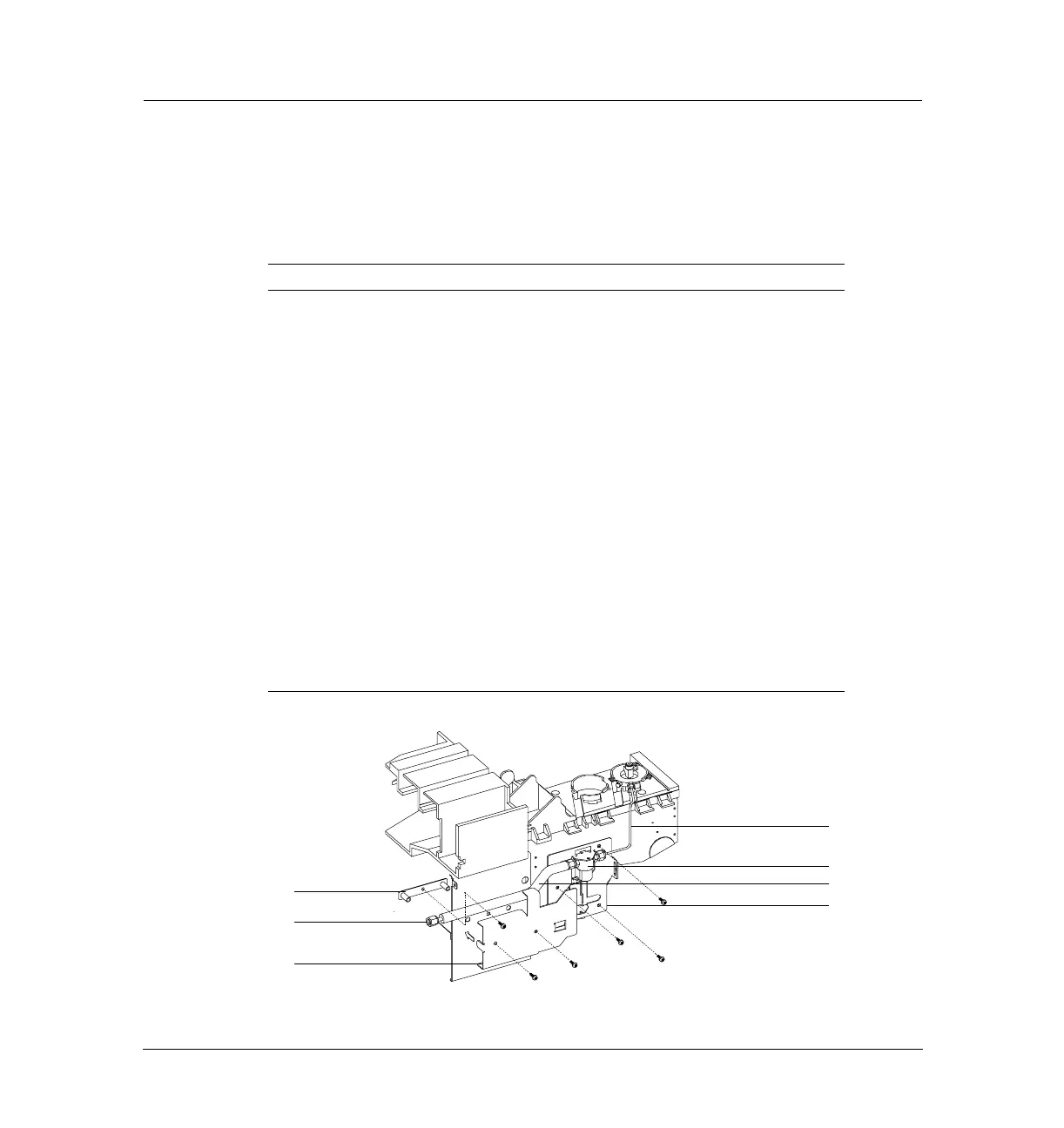

Figure 1310-14 PTV LN
2
cryo assembly
Description Part no. Qty.
1. PTV LN
2
nut plate G2619-00040 1
2. PTV LN
2
supply tube G2619-20520 1
3. PTV/CFO LN
2
insulation cover G2619-00030 1
4. PTV LN
2
-cell inlet tube G2619-20510 1
5. Cryo valve G1566-60557 1
6. PTV inlet tube insulation G2619-00010 1
7. PTV solenoid bracket G2619-00020 1
8. PTV jumper cable G2619-60502 1
9. Nut 1/4-inch tubing SS 0100-0055 1
10. Connector 0100-0112 1
11. Connector—male 0100-0208 1
12. 1/4-inch ferrule set SST 0100-1827 1
13. Tape—industrial — —
14. Cap—protective — —
15. MS 8-32.312 LG 2510-0043 2
4
1
2
3
5
6
7
