Table 36 Jets for adaptable fittings
Figure 4 ID Jet type Part number Jet tip id Length
1 Capillary with extended jet
(recommended)
G1534-80590 0.29 mm (0.11 inch) 70.5 mm
2 Capillary 19244-80560 0.29 mm (0.011 inch) 61.5 mm
3 Capillary, high-temperature 19244-80620 0.47 mm (0.018 inch) 61.5 mm
4 Packed 18710-20119 0.46 mm (0.018 inch) 63.6 mm

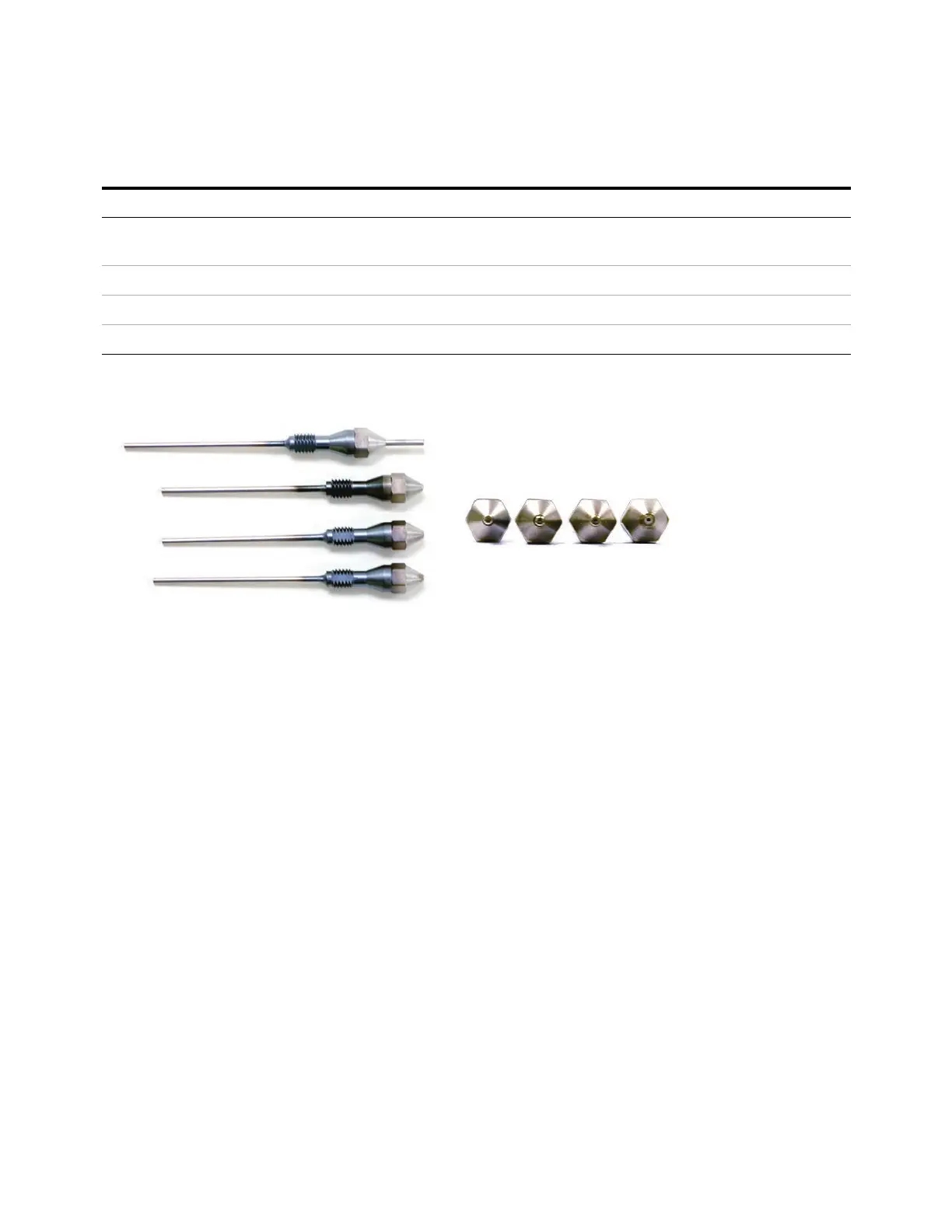

Figure 5 Adaptable NPD jets
1
2
3
4
123 4
70.5 mm
61.5 mm
61.5 mm
63.6 mm
