5b-3
Troubleshooting Information
AC Mains (Line) Fuse Removal
AC Mains (Line) Fuse Removal
To Remove the Fuse
1. Unplug the power cord from the mains (line) module.
2. Use a flat-bladed screw driver (Figure 5b-1) to pry loose and unseat the fuse housing
from the line module.
3. Remove the cartridge and inspect the fuse nearest the front of the instrument.

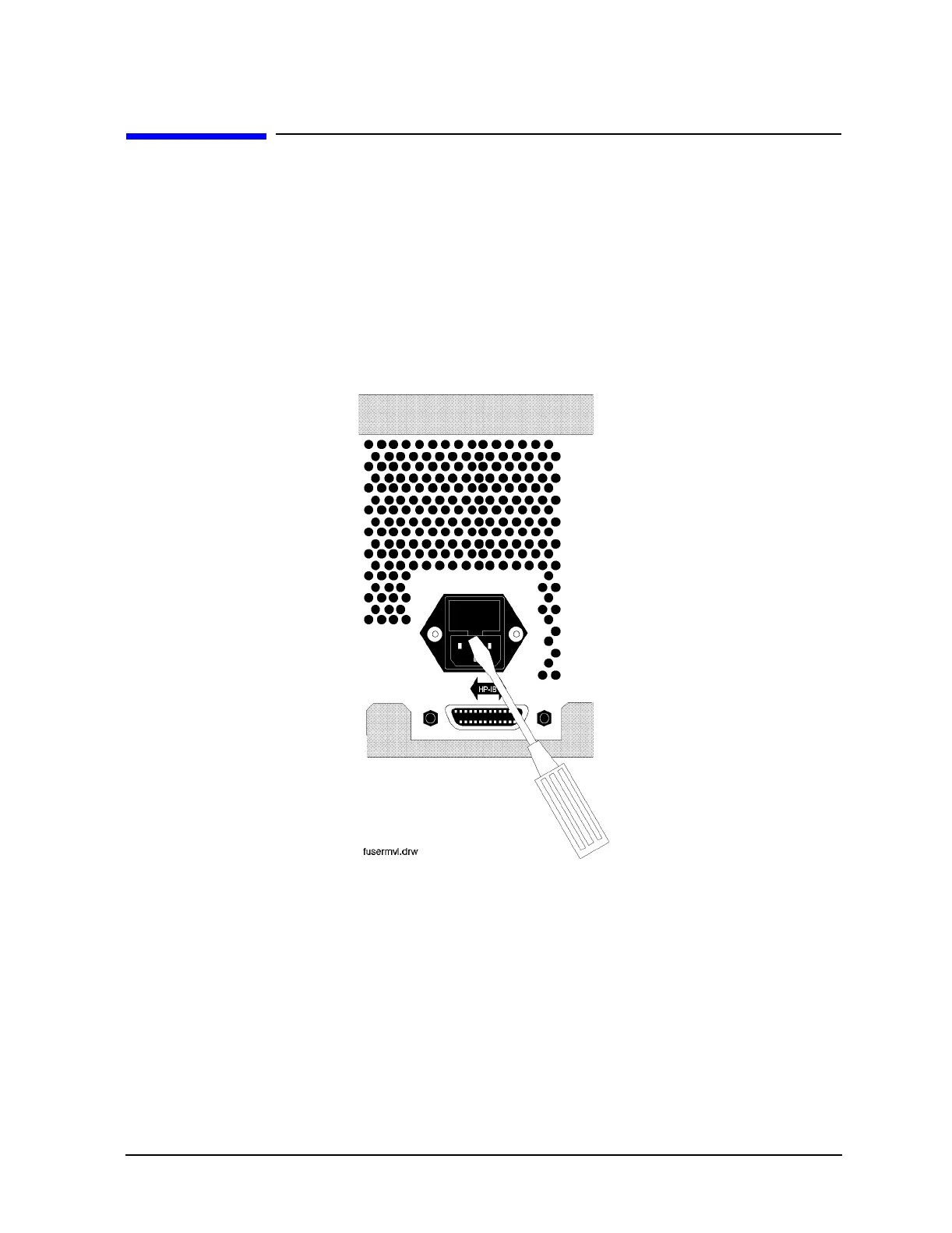

Figure 5b-1. Fuse Removal
