Operation Reference
Function
Setting Up the Pager Encoder
NOTE The pager encoder mode is available only on instruments with Option 1EP.
Option 1EP adds pager encoding/signaling capabilities to the standard
functions. Consequently the front panel of the Option 1EP instrument is
different from the standard instrument’s front panel. The green and blue
labels are incorporated for the pager encoding settings only. Therefore, these
keys have multiple functions on instruments with Option 1EP.

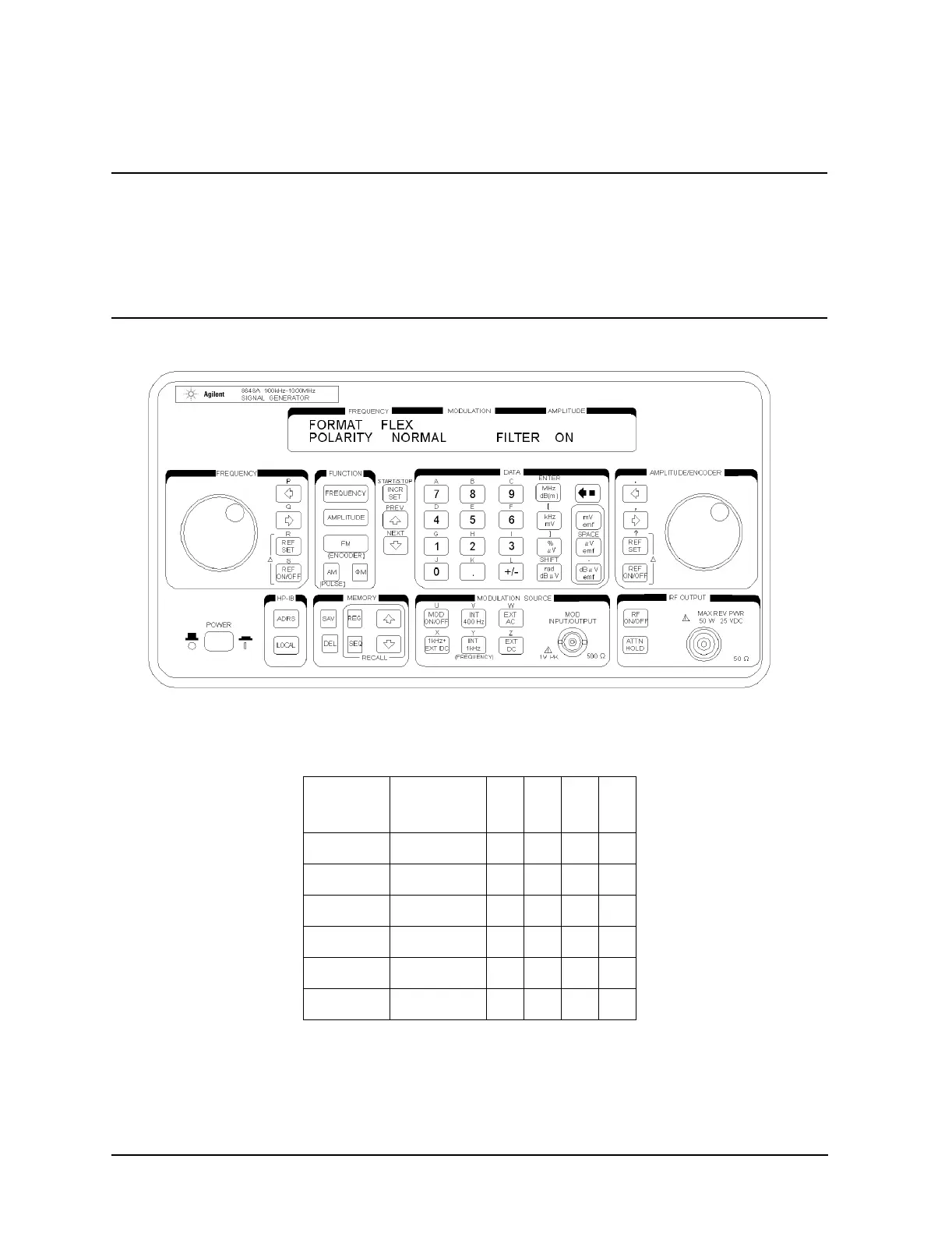

Figure 1b-1. 8648A Option 1EP Signal Generator
For numeric messages, the following keys are assigned for the special characters in
addition to the standard numeric keys (0 to 9).
Front
Panel Key
Character B3B2B1B0
S Spare 1010
U U 1011
Space Space 1100
- - (Hyphen)1101
] ] 1110
[ [ 1111
To Next Page
