Performance Tests
FM Accuracy Performance Test
FM Accuracy Performance Test
Connect the Test Equipment

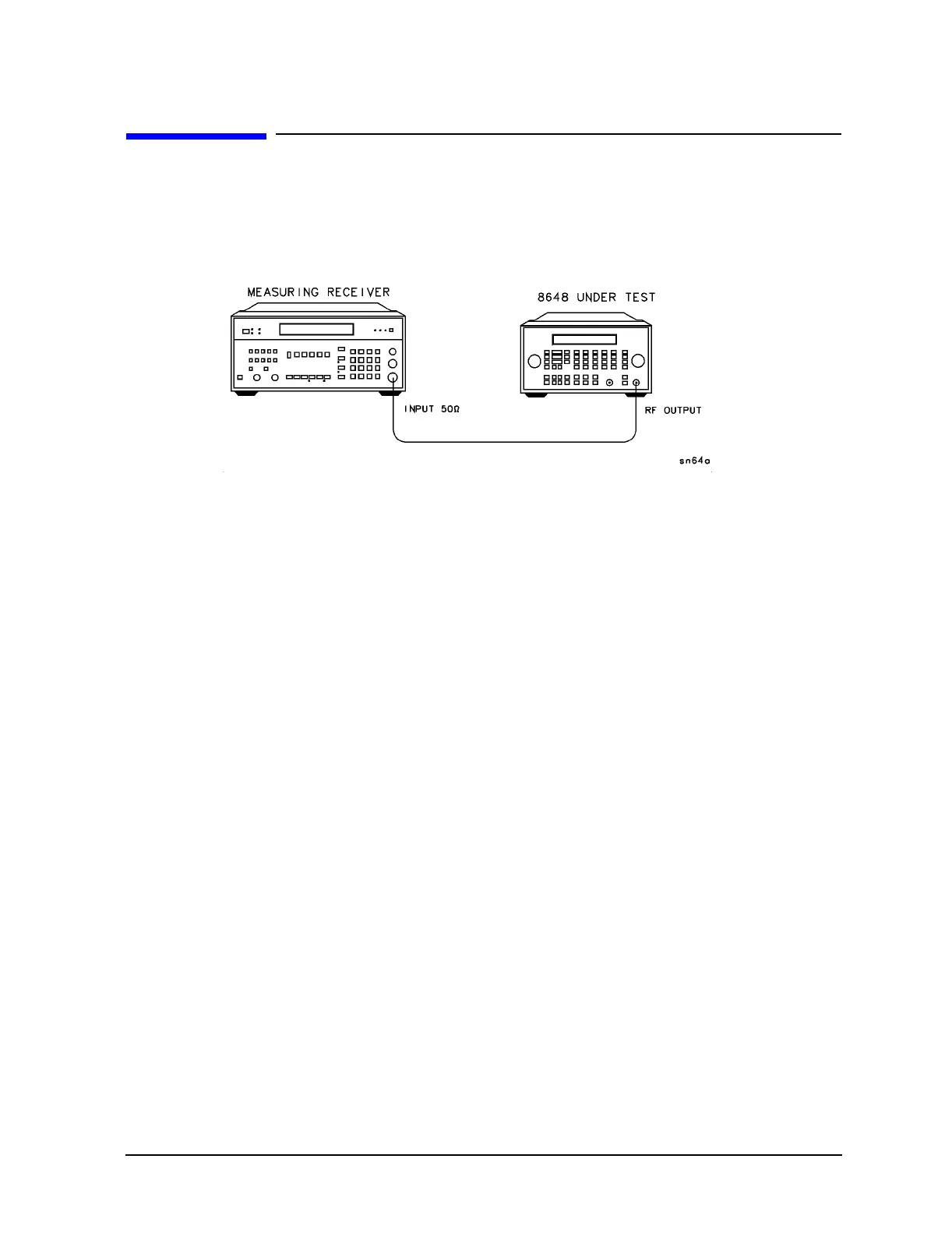

Figure 8-1. FM Accuracy Equipment Setup
Configure the Measuring Receiver
1. Reset
2. FM mode
3. Peak+ detector
4. 300 Hz high-pass filter
5. 15 khz low-pass filter
Configure the 8648
1. Turn FM on; press FM MOD ON/OFF.
2. Set the rate; press
INT 1 Khz.
3. Set the amplitude; press
AMPLITUDE 4 dB(m).
4. Turn the RF output on; press
RF ON/OFF.
Measure Deviations
1. Enter the frequencies and deviations shown in the test record.
2. Record the test results and compare the results to the limits in the test record.
Test Record
• 8648A: Table 8-5.
• 8648B: Table 8-22.
• 8648C: Table 8-47.
• 8648D: Table 8-72.
