Adjustments
Manual Adjustments
Audio Generator (Options 1E2 and 1EP Only)
Description
This program generates the offset and gain calibration values for the sinewave source on
the A14 modulation generator board.
Required Test Equipment
•DVM
Procedure

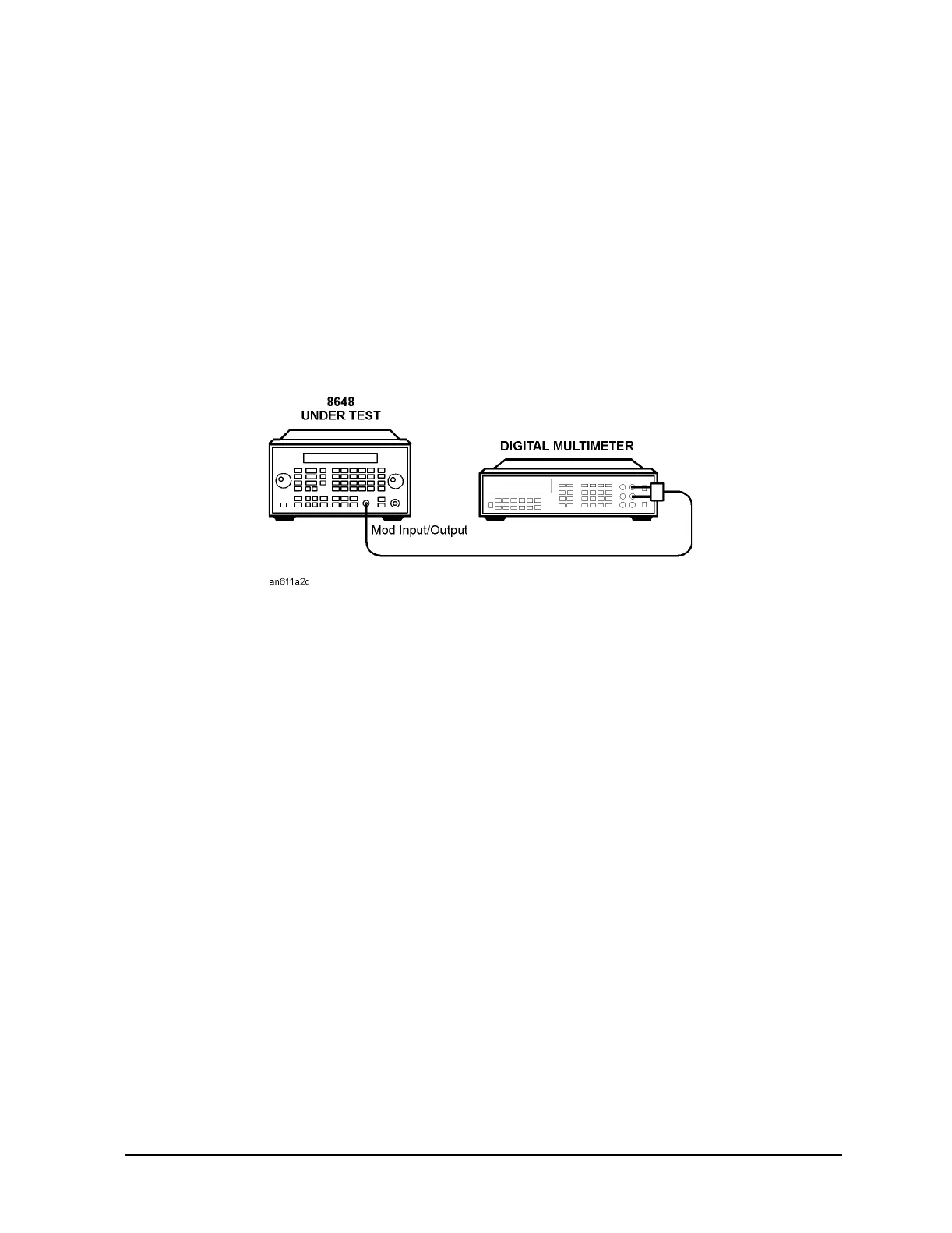

Figure 7-25. DCFM Test Setup
1. Connect the equipment as shown above.
2. Preset all of the equipment.
3. Follow the instructions as they are displayed on the PC.
