1b-29
Operation Reference
Function
Pulse Modulation
NOTE Pulse modulation is valid only for instruments with Option 1E6.

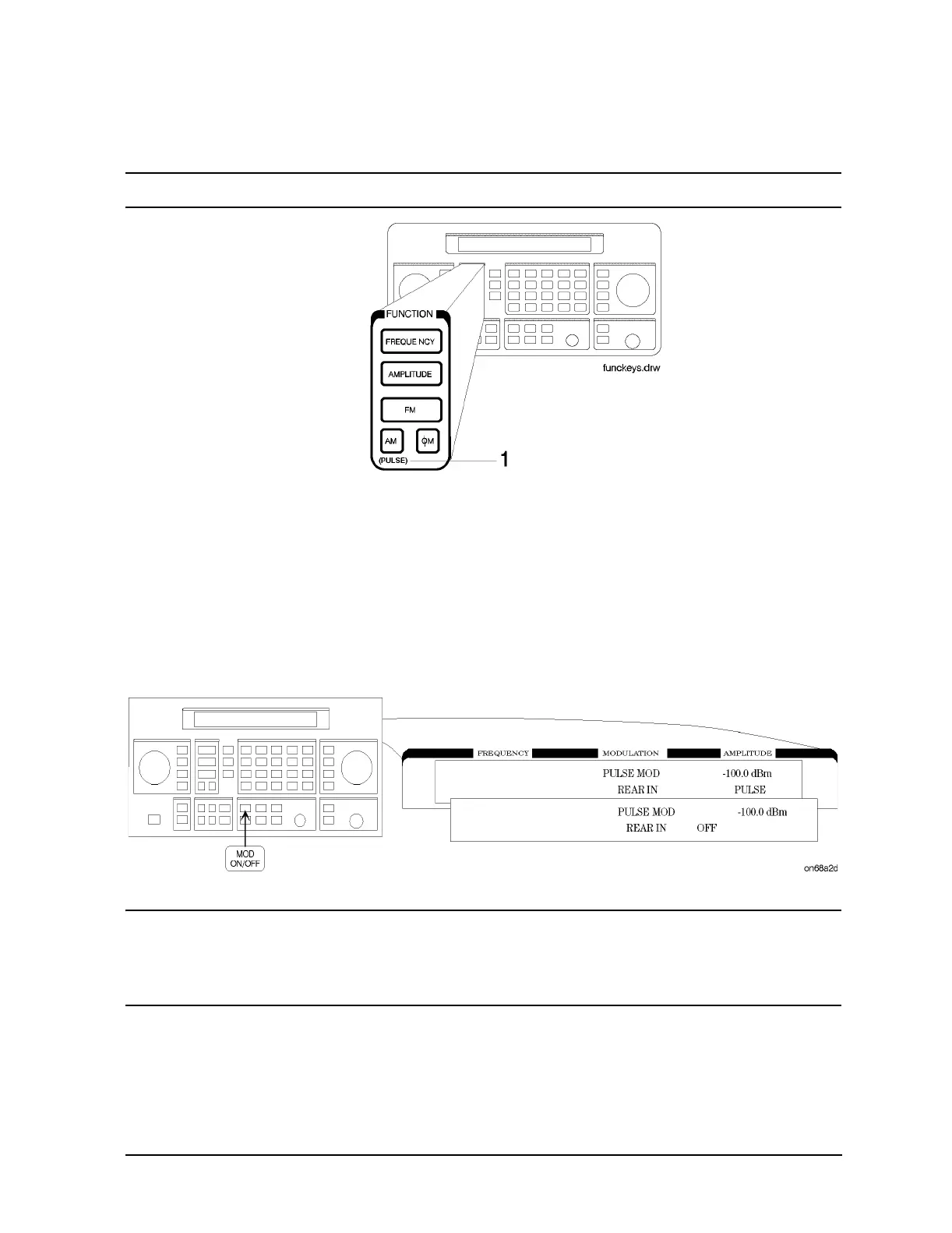

1. PULSE
To select pulse modulation, press
AM (PULSE) twice. If RF is on, the display will look like
the following representation. The
MOD ON/OFF key enables or disables the pulse
modulator.
When the instrument is in the pulse modulation mode, pulse modulation should be turned
off using
MOD ON/OFF before switching off the instrument. If the instrument is switched off
while the pulse modulation mode is turned on, the instrument will power up with no RF
output.
NOTE The word PULSE is shown in the AMPLITUDE portion of the display when
pulse modulation is enabled (
MOD ON/OFF) and the RF is turned on
(
RF ON/OFF). In this case, no RF will be present at the RF output unless a
TTL-high signal is applied to the rear-panel PULSE IN connector.
