1a-26
Operation Examples
Signaling a Numeric-Type FLEX Pager (Option 1EP Only)

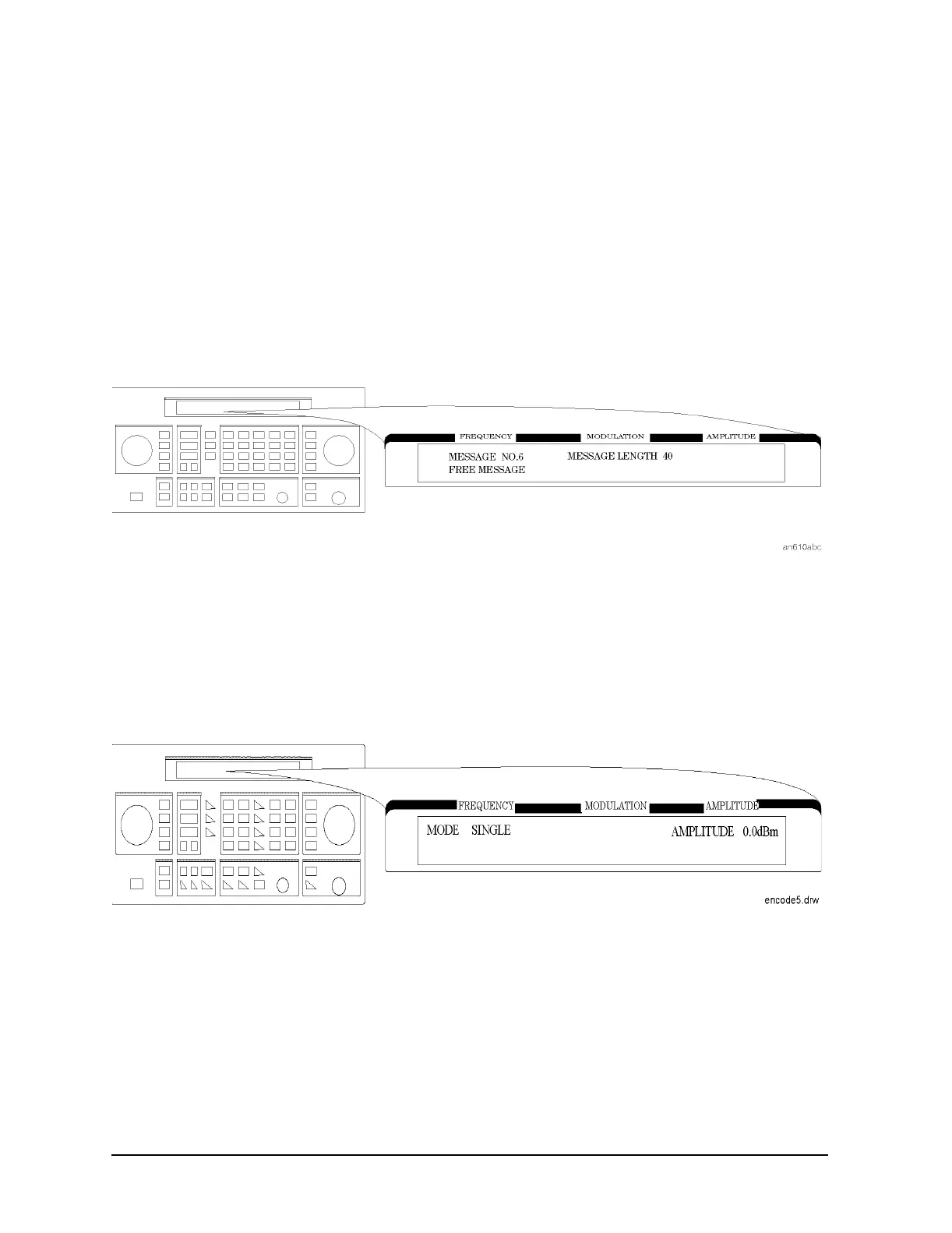

Selecting the Message Settings
5. You may choose one of the five fixed messages (only numbers one and five are useful for
numeric pagers) or you may define your own message. For this example, use your own
phone number as the user-defined message:
a. Set MESSAGE NO. to 6 and MESSAGE LENGTH to 40 using the
AMPLITUDE/ENCODER knob and the key.
b. Press the ⇓ (NEXT) key again to select the FREE MESSAGE parameter.
c. Enter your phone number with the numeric keys and terminate your entry with the
MHz dB(m) (ENTER) key.
Press the ⇓ (NEXT) key to move to the next page.
Selecting the Transmission Repetitions and Amplitude
6. Set MODE to SINGLE and AMPLITUDE to 0.0 dBm using the AMPLITUDE/ENCODER
knob and the ⇓ (NEXT) key. Enter the numeric values using the numeric keys and the
MHz dB(m) (ENTER) key.
Press the ⇓ (NEXT) key to move to the next page.
To Next Page
