Agilent Technologies 8648A User Manual

7-19
Adjustments
Manual Adjustments
Prelevel (8648B/C/D Only)
Description
This adjustment creates the slope and offset calibration data for the preleveler calibration.
The adjustment will not let you store away any calibration data unless all of the
calibration data points are run.
Required Test Equipment
• Power Meter
• Power Sensor
Procedure

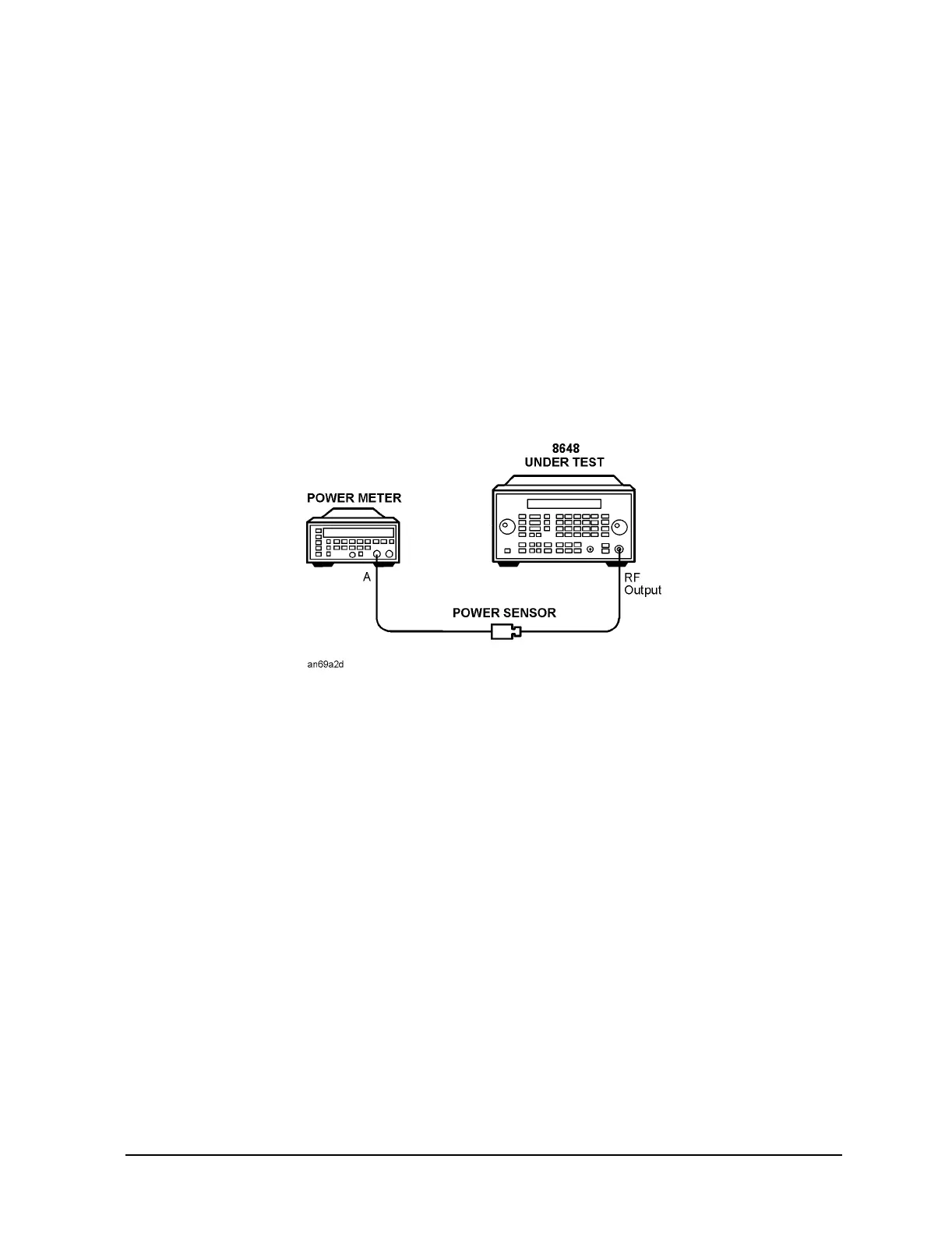

Figure 7-18. Prelevel Test Setup
1. Connect the equipment as shown above.
2. Preset all of the equipment.
3. Follow the instructions as they are displayed on the PC.
