Adjustments
Manual Adjustments
Output Level (8648A Only)
Description
This adjustment creates the slope and offset calibration data for the output section.
This adjustment will not allow any calibration data to be stored unless all of the
calibration data points are measured.
Required Test Equipment
• Power Meter
• Power Sensor
Procedure

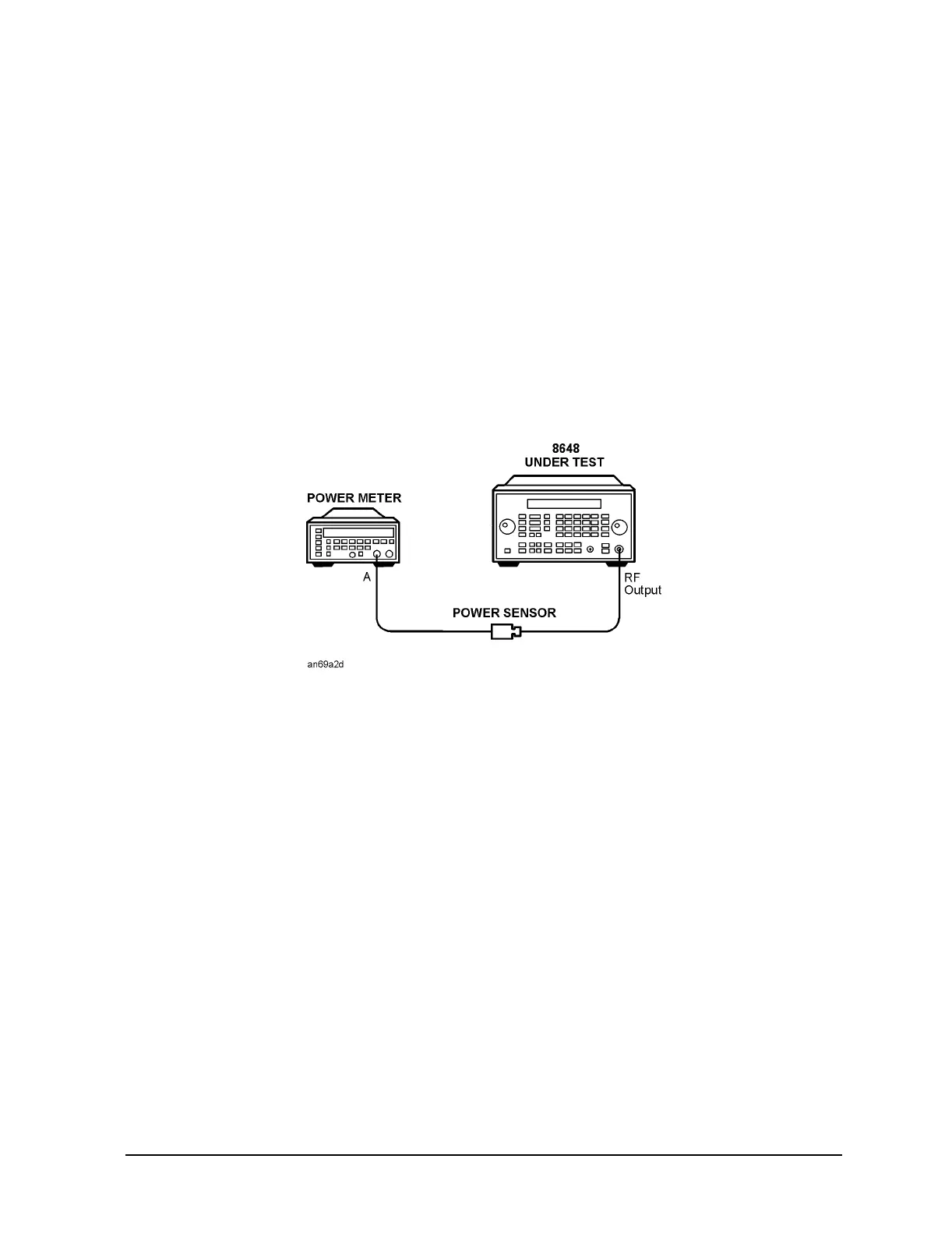

Figure 7-13. Detector Offset Test Setup
1. Connect the equipment as shown above.
2. Preset all of the equipment.
3. Follow the instructions as they are displayed on the PC.
