7-25

Adjustments

Manual Adjustments

Procedure

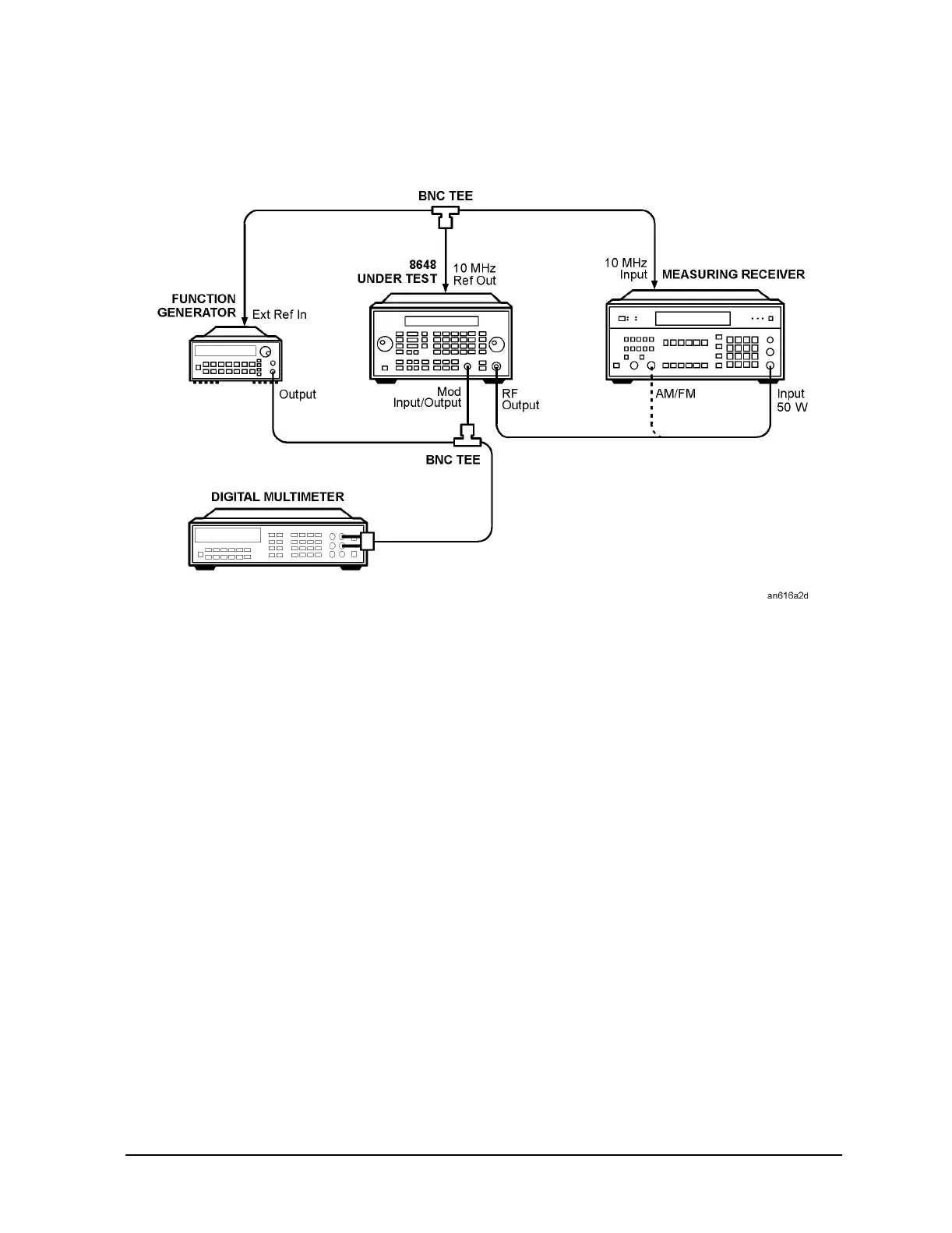

Figure 7-23. Motherboard Audio Path Test Setup

1. Connect the equipment as shown above.

2. Preset all of the equipment.

3. Follow the instructions as they are displayed on the PC.
