Agilent Technologies B1500A Self-Paced Training Manual

5-3

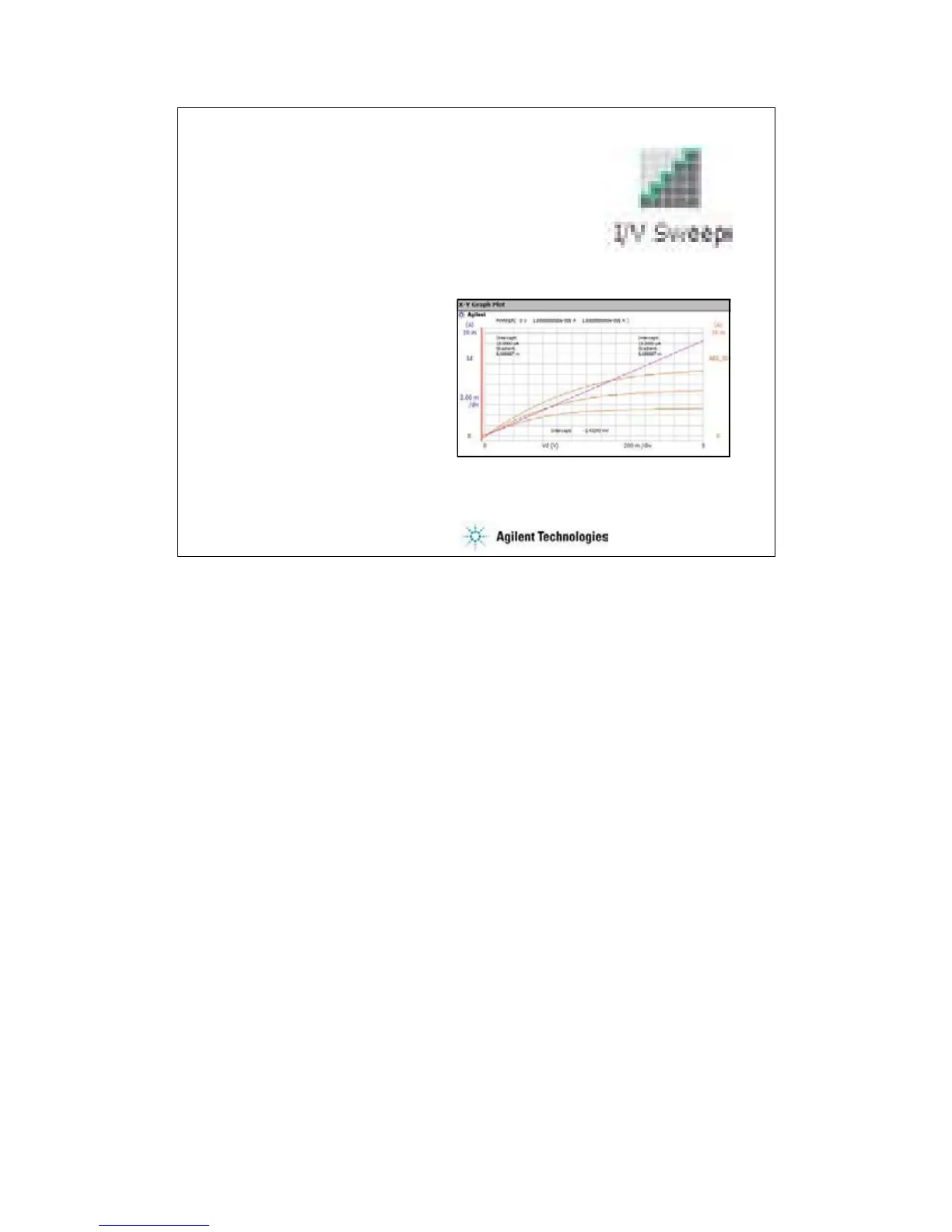

I/V Sweep Measurement
• To Define Source/Measurement Channels
• To Read Time Stamp Data and Data Index
• To Set Source Outputs (VAR1, VAR2, VAR1’, Pulse, CONST)
• To Set Timing Parameters
• To Set Sweep Abort Function
• Range, ADC/Integ, Advanced
• To Set User Functions
• To Set Analysis Functions
• To Set Auto Analysis Function
• To Set Display Parameters (X-Y Graph, Data List, Parameter)
This section explains how to perform I/V sweep measurement. You will perform the above tasks
to execute the I/V sweep measurement.
