Agilent Technologies B1500A Self-Paced Training Manual

5-4
Channel Setup
Channel Definition
-SMU
-V name/I name
-I/V/IPULSE/VPULSE/COMMON
-VAR1/VAR2/VAR1’/CONST
Setup Name
SMU1
SMU3
SMU4
SMU2

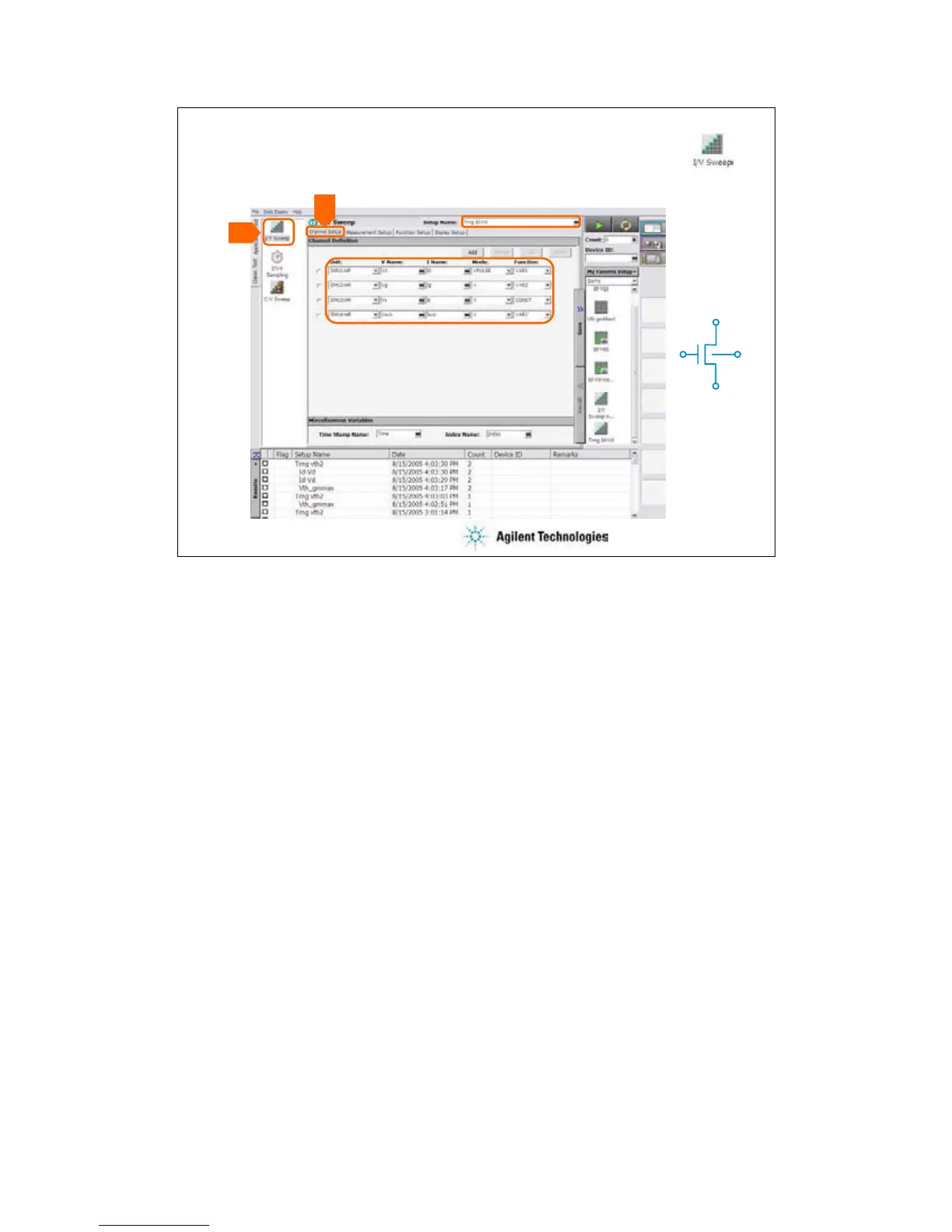

To Define Source/Measurement Channels
Click the I/V Sweep icon and open the setup editor. Then click the Channel Definition tab to
display the channel definition screen.
•Enter the Setup Name for the test setup to be defined on the setup editor.
•List SMUs used for source output or measurement, and set the following parameters.
•Unit: SMU name or number
•V Name: Variable name for the voltage measurement or source data
•I Name: Variable name for the current measurement or source data
•Mode: Source output mode, V (voltage), I (current), VPULSE (voltage pulse), IPULSE (current
pulse), or COMMON (ground)
•Function: Source output function, VAR1 (primary sweep), VAR2 (secondary sweep), VAR1’
(synchronous sweep), CONST (constant)
V Name and I Name are used to specify the parameters displayed on the Data Display window.
The display parameters are selected on the Display Setup tab screen.
