To Set SMU Outputs (CONST)
Measurement Setup

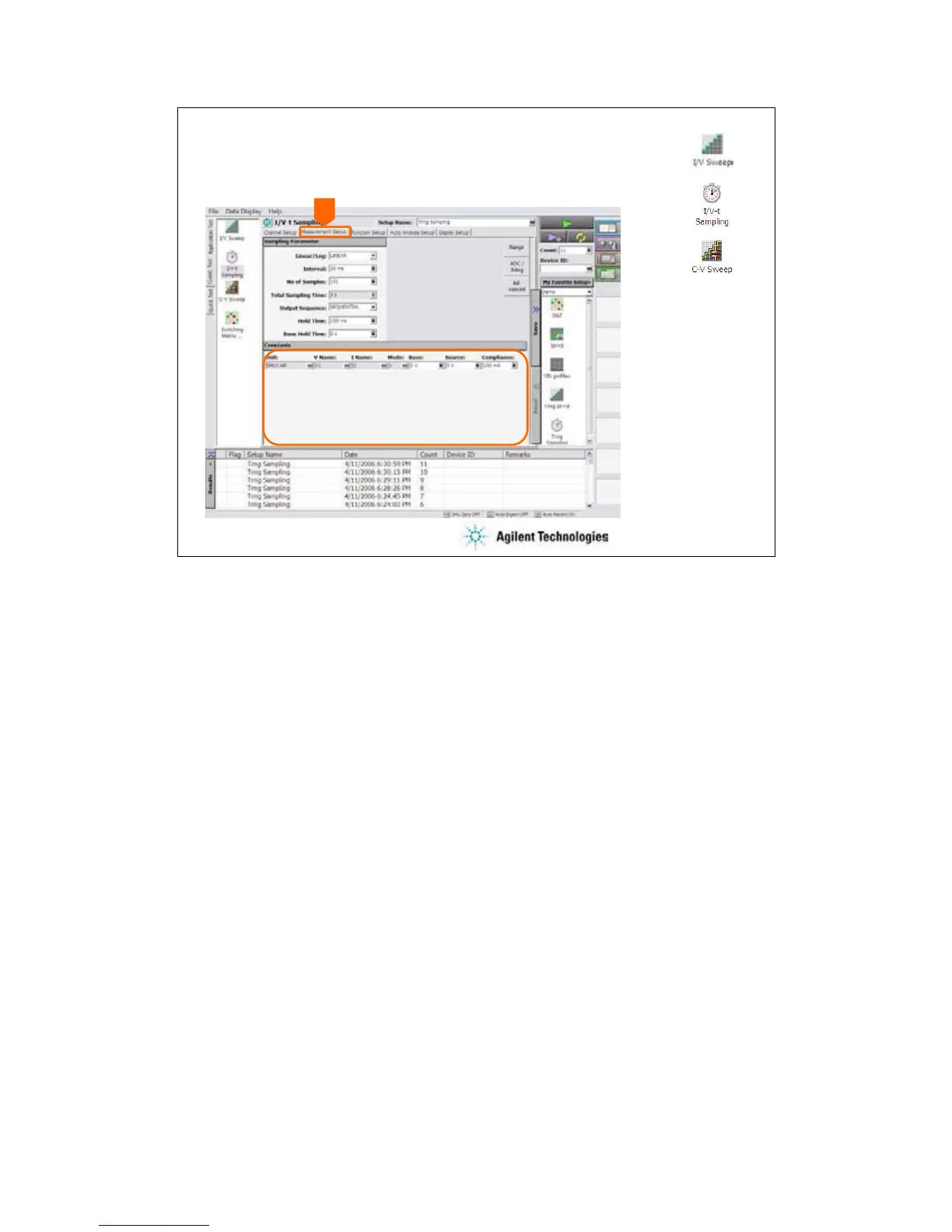

SMU constant output setup
At the Constants area, you set the SMU constant output.
•Unit: SMU name or number
•V Name: Variable name for the voltage measurement or source data
•I Name: Variable name for the current measurement or source data
•Mode: Source output mode, V (voltage), I (current), or COMMON (ground)
•Base and Source: SMU output value
•Compliance: SMU compliance value
Base value is available for all output channels for the SIMULTANEOUS mode and the last source
channel for the SEQUENTIAL mode.
