5-31
To Set Ranging Mode
Measurement Setup
Fixed range mode

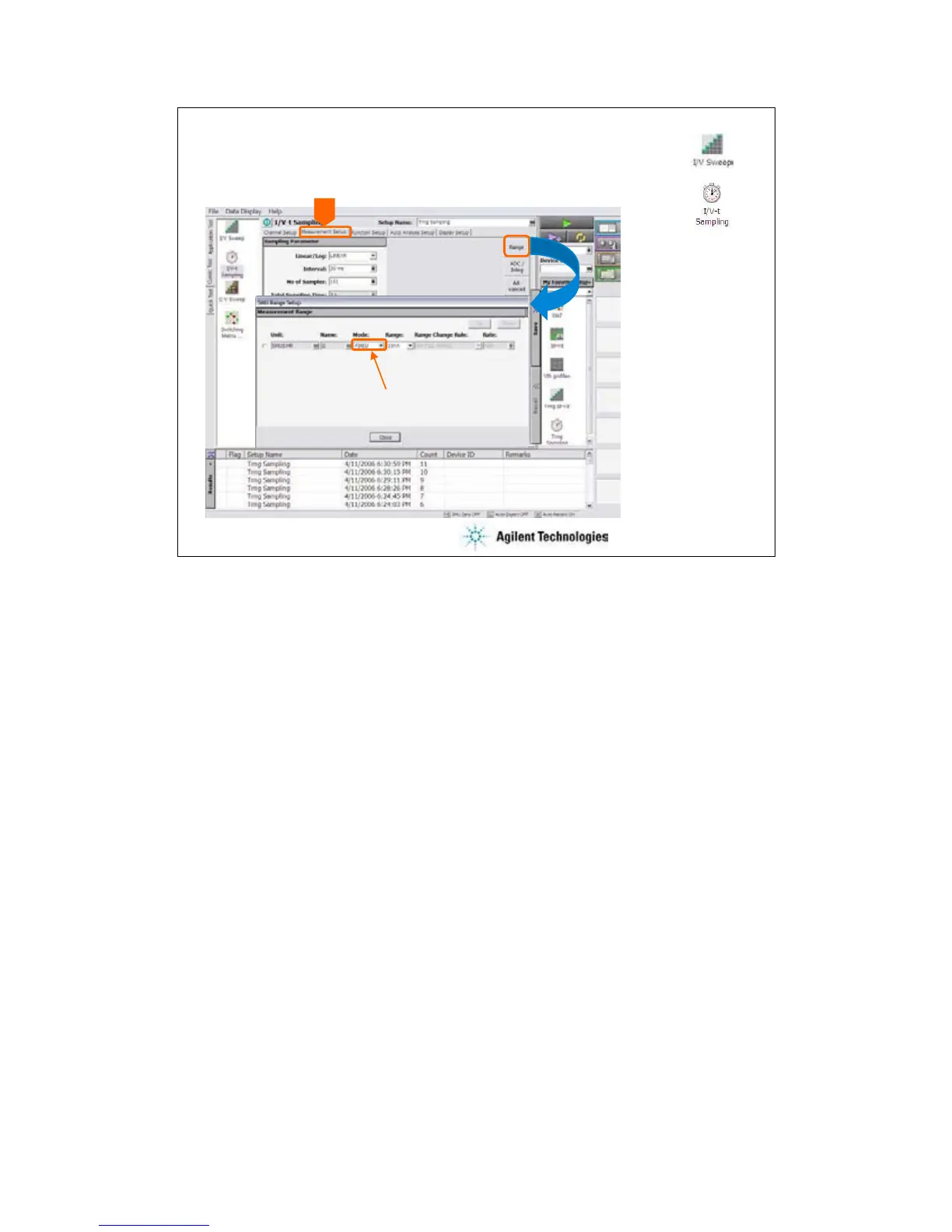

The Range button opens the SMU Range Setup dialog box. For details of the dialog box, see page
5-13.
If the range changing occurs during measurement, the SMU may not complete measurement
within the sampling interval. So use FIXED range if the sampling interval is top priority and the
resolution/sensitivity is second priority.
