Agilent Technologies B1500A Self-Paced Training Manual

4-10

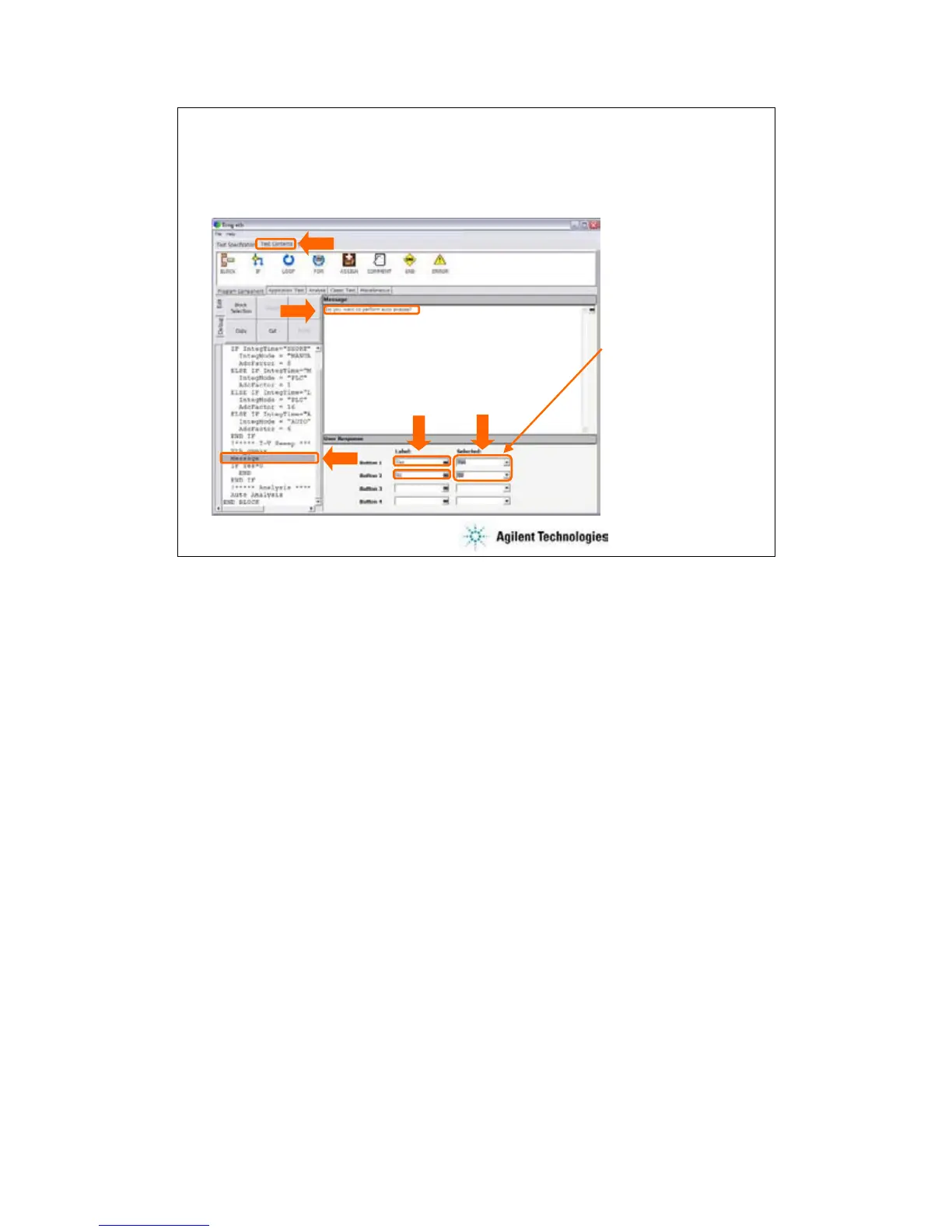

To Modify Test Definition
Define Message box
Test Definition editor
Yes and No buttons
are made on this
message box.
This message box
asks if you want to
perform auto
analysis or do not.
Variables.
Yes=1/No=0 if Yes
button is clicked.
Yes=0/No=1 if No
button is clicked.
Next, click the Message line in the program list. The editor change the display as shown above.
1. Enter the message.
2. Enter the button name.
3. Select the variable used to keep the status of the button.
4. Repeat 2 and 3 for all buttons you want to add.
