Chapter 4 103
Basic Digital Operation
Arbitrary (ARB) Waveform File Headers

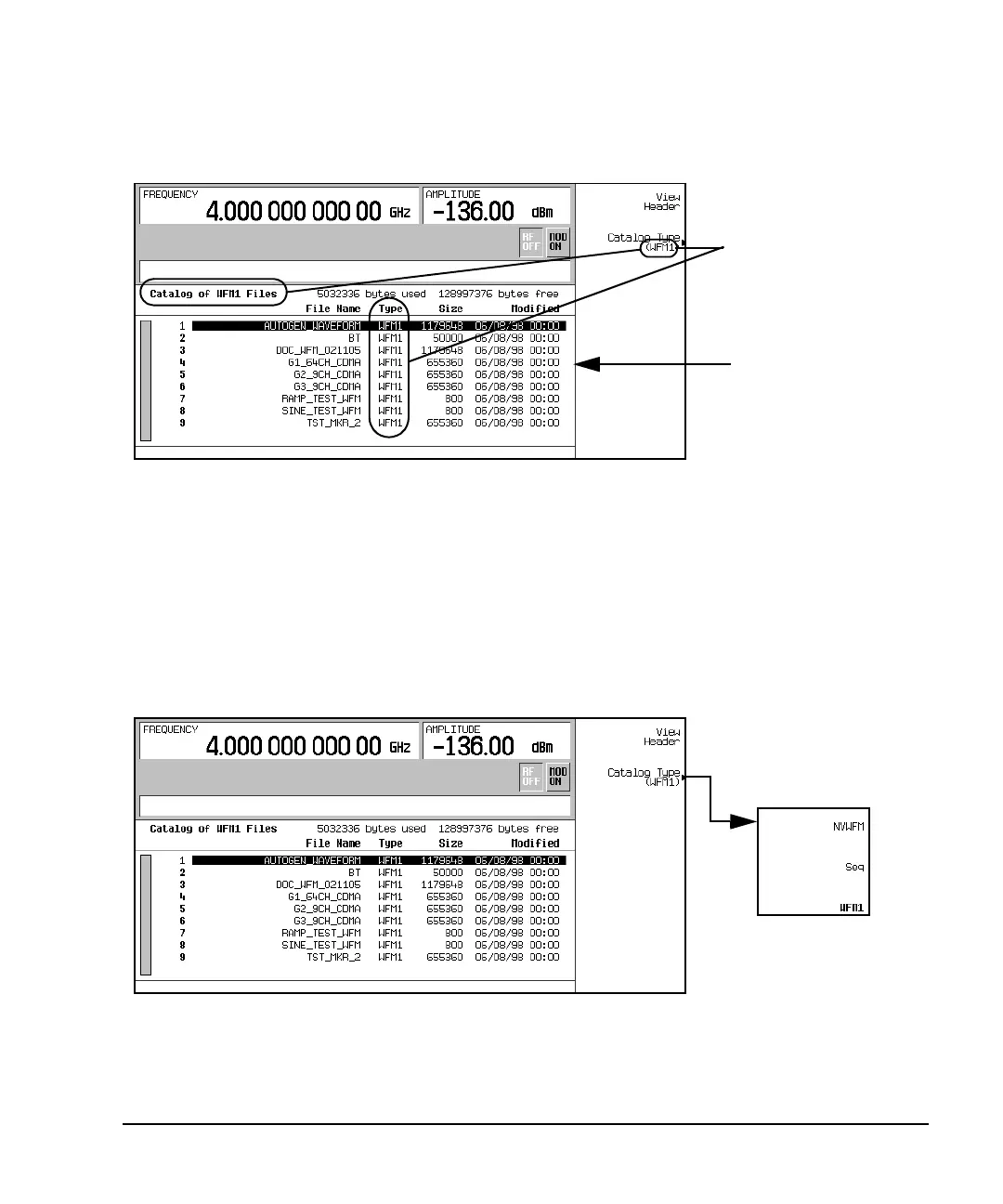

Figure 4-7 Waveform File List for Viewing a Different Header
2. Press the
Catalog Type softkey.
Now you have a choice of three waveform file types that can be displayed in the table accessed in step
one. These choices are shown in Figure 4-8.
Figure 4-8 Waveform File Type Selection
NVWFM This choice will display all of the waveform segments currently stored in
non-volatile memory.
Seq This choice will display all of the waveform sequence files.
Table
Current Waveform File
Type
To Next Page
