116 Chapter 4
Basic Digital Operation
Using the Dual ARB Waveform Player

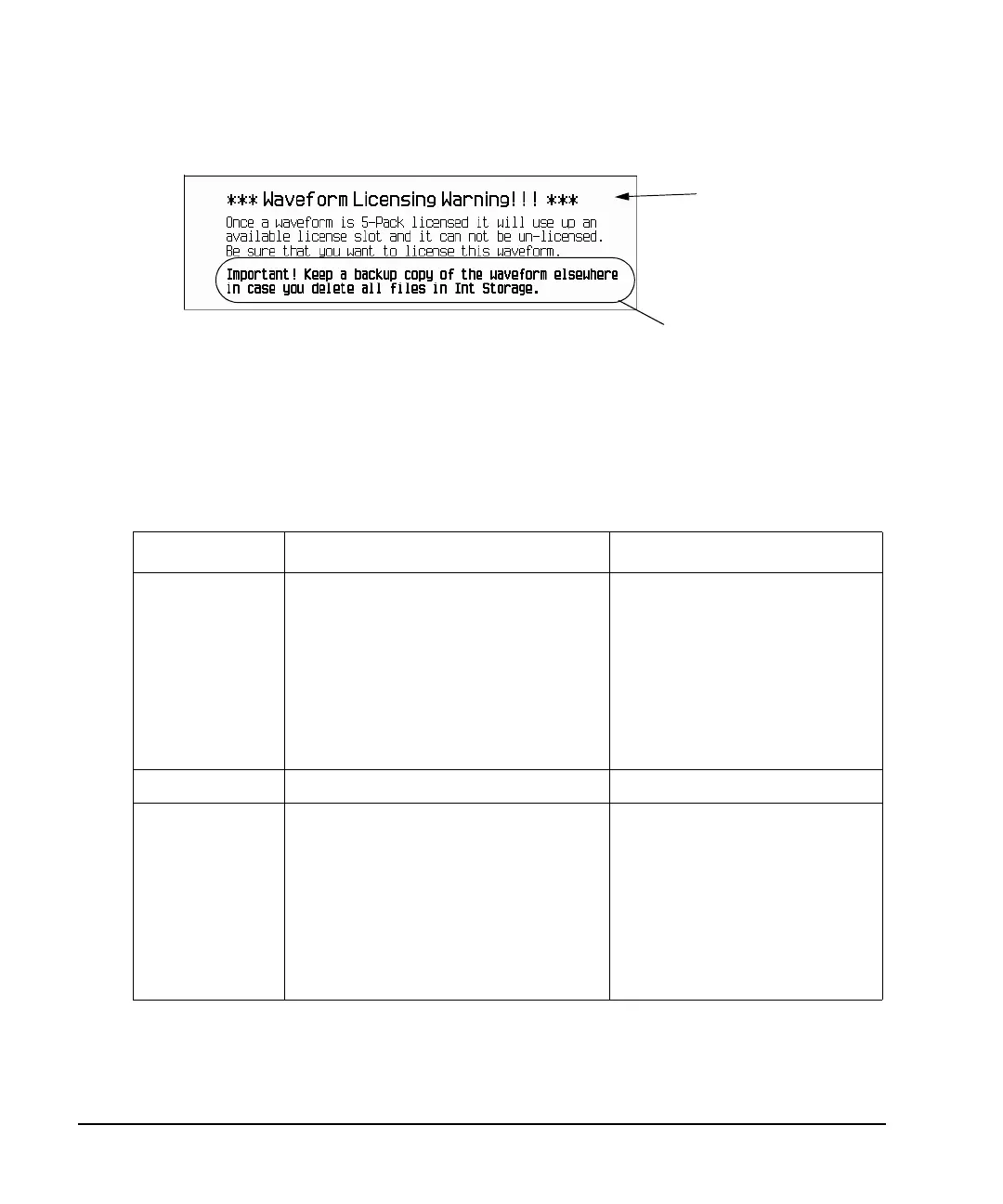

Figure 4-12 Add Waveform to 5-Pack Softkey Warning Message
d. Press
Confirm Adding Waveform to 5-Pack.
The display returns to the Catalog of WFM1 Files and the file’s Status column is now shows
5-Pack Licensed. See Table 4-1.
e. Make a backup copy of this waveform on a computer.
Table 4-1 Waveform 5-Pack Licensing Status Messages for the “Catalog of Segment Files in
NVWFM Files”
Status Message Meaning Notes
Empty field If no status message, then waveform is licensable.
Once a Trial (TRL)
a
license expires, the
waveform becomes licensable (i.e. the
status message for the TRL waveform
becomes an empty field).
If a licensed Option 22x waveform file is
downloaded to another E4438C signal
generator, the waveform becomes
licensable on that other signal generator
(i.e. the status message field is empty).
a. Trial license (TRL) is not applicable to N7699A-D01. A waveform downloaded with N7699A-D01 always has an
empty field before it is licensed with Option 22x. A Trial license is not licensable until after the 14-day trial expires.
5-Pack Licensed This waveform is licensed by Option 22x.
5-Pack License
Not Required
This message applies to:
Any free waveforms provided with the Agilent
ESG (e.g. RAMP_TEST_WFM, and
SINE_TEST_WFM, etc.)
Any customer created waveform
Any waveforms that have a valid license (e.g. Trial
(TRL) licenses, Advanced Design System (ADS),
etc.). Refer to www.agilent.com.
Once a Trial (TRL) license expires, the
waveform becomes licensable (i.e. the
status message for the TRL waveform
becomes an empty field).
If a licensed Option 22x waveform file is
downloaded to another E4438C signal
generator, the waveform becomes
licensable on that other signal generator
(i.e. the status message field is empty).
This warning message indicates that this is the last chance for verifying
that the waveform being licensed is the one you want. If the waveform
selected has
not
been verified, press Return and verify the selection.
If the waveform selected
for licensing has been
verified as the waveform
you want to be licensed,
press Confirm Adding
Waveform To 5-Pack.
Caution! This step
cannot be undone.
Important! Always backup licensed
waveforms in a separate place from the
instrument (e.g. computer, etc.).
