12.2 RO Inline™
A1
1
4
5
7
A2
A3
9
8
10
A5
2
12
11
5
2
3
6
3
1
6
4 Nm
4 Nm

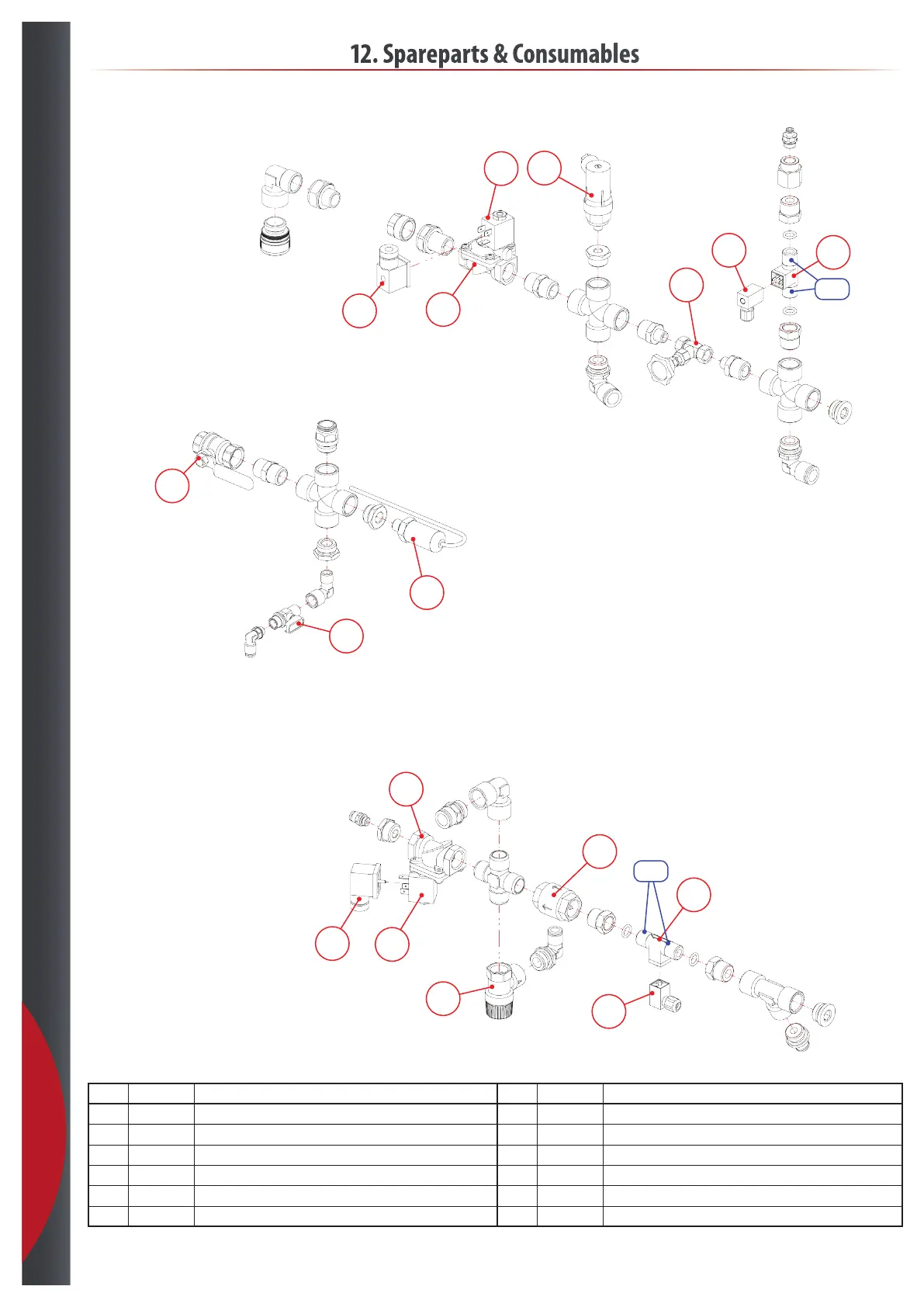

12. Spareparts & Consumables
Pos. Part no. Description Pos. Part no. Description
1 365110 Solenoid valve 1/2” 230 V AC 7 161810 Needle valve 1/4”
2 211155 Plug for 1/2” solenoid valve 8 231110 Pressure transmitter 0 - 10 bar
3 211119
Coil 230 V AC for 1/2” solenoid valve
9 203211 Ball valve 1/2”
4 365640 Pressure switch 10 711020 Ballvalve 1/8” - 1/4”
5 365089 Flow sensor 11 161720 Non return valve 1/2”
6 365643 Plug for ow sensor 12 365044 Safety valve
