12.12 HydroFlex™ S
7
6
5
4
3
1
2
9
4
5
6
3
3
6
5
4
8
6
12
5
10
6
5
11
6
5
4 Nm

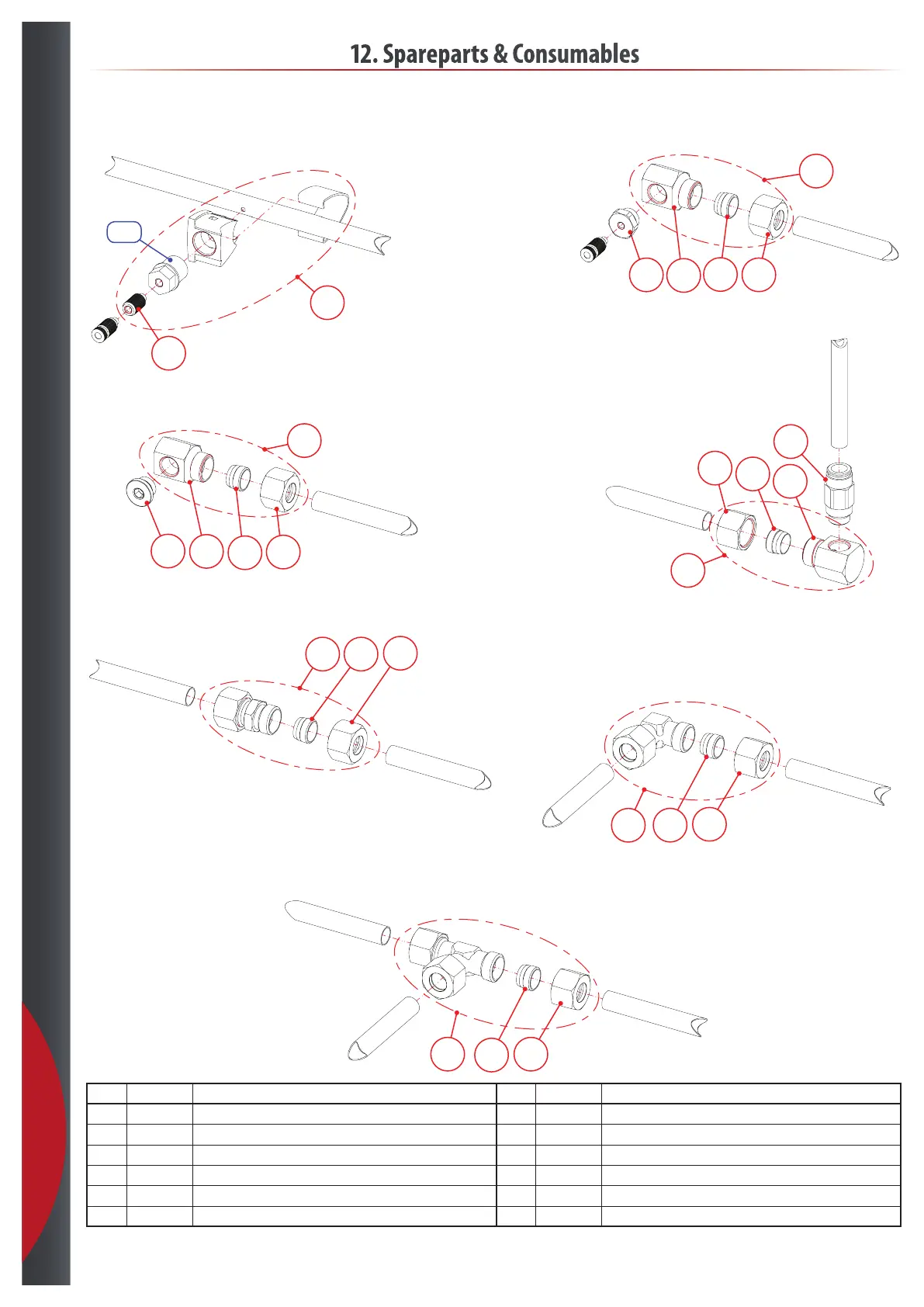

12. Spareparts & Consumables
Pos. Part no. Description Pos. Part no. Description
1 365601 Nozzleholder HydroFlex™ S 7 182351 Nozzlecarrier HydroFlex™
2 437150 Adaper from 12/24 to 10/24 thread 8 161210 Plug 1/4”
3 365776 Cutting ring tting w. 1/4” side output, complete 9 365174 Sliplock high pressure ø10 - 1/4”
4 365559 Cutting ring tting w. 1/4” side output 10 531045 Cutting ring tting straight, complete
5 300390 Cutting ring ø12 mm 11 161827 Cutting ring tting elbow, complete
6 981409 Nut for cutting ring ø12 mm 12 161828 Cutting ring tting Tee, complete
