6.8 HydroSens™ InRoom

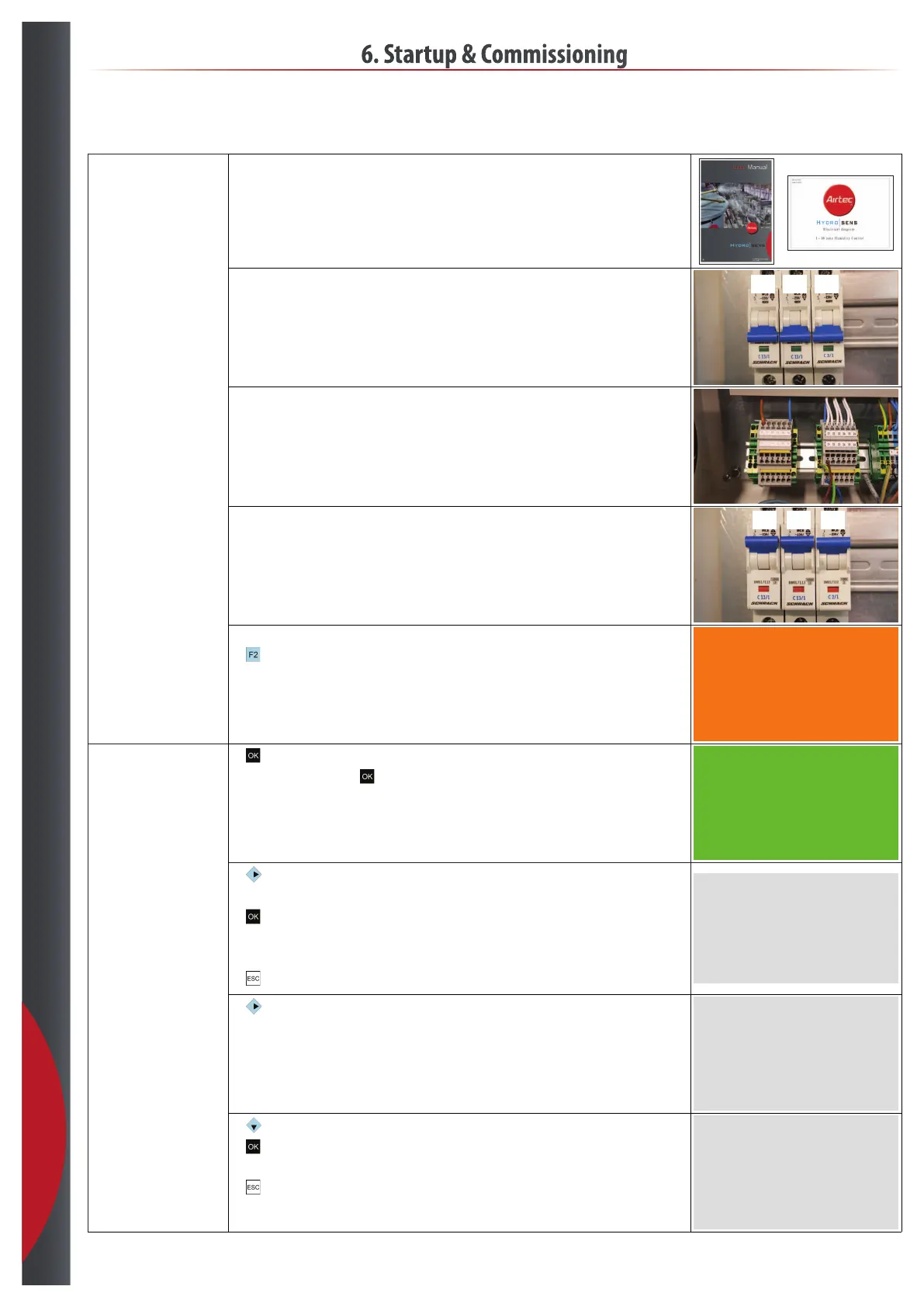

6. Startup & Commissioning
Before you start:
• Conrm that electrical diagram is available.
• Conrm that user manual is available.
Turn all fuses OFF.
• Connect the cables for the sensors and ventilators to the HydroSens™, follow the electrical
diagram.
• Connect power supply.
• Check power supply voltage.
• Check water supply is open and the water pressure.
• Turn all fuses ON.
• Wait for the display to start up.
•
to ensure that the system is stopped.
Airtec HydroSens
< InRoom %RH >
Software V. 2.04
System Stopped, F1=Start
Adjust by-pass:
•
> 2 sec. to goto ”Password” screen.
• Enter password ”9963”,
to accept, screen turns white.
Password
0000
Press OK
• to goto ”Zone Overview” screen.
• Check sensor signal.
•
to edit.
• Set all setpoints to 0%.
• Set Zone 1 setpoint above actual %RH.
•
to exit edit.
< Zone Overview >
%RH/set %RH/set
° 1 XXX/XXX ° 6 XXX/XXX
° 2 XXX/XXX 7 XXX/XXX
3 XXX/XXX ° 8 XXX/XXX
° 4 XXX/XXX 9 XXX/XXX
° 5 XXX/XXX °10 XXX/XXX
• to goto ”System” screen.
• Check the water pressure.
< System >
Operation, hours XXXXXX
Pump, hours XXXXXX
Oil, hours XXXXXX
Reset Service Yes
Pressure, Bar XX.X
Inverter, Amps XX.X
Show Service popup Yes
• to goto ”Zone Control Setup” screen.
•
to edit.
• Set Zone 1 to ”Sensor”.
•
to exit edit.
Zone Control Setup
Control Control
1 Sensor 6 Sensor
2 Ext+hyg 7 Ext+hyg
3 External 8 External
4 O 9 O
5 O 10 O
