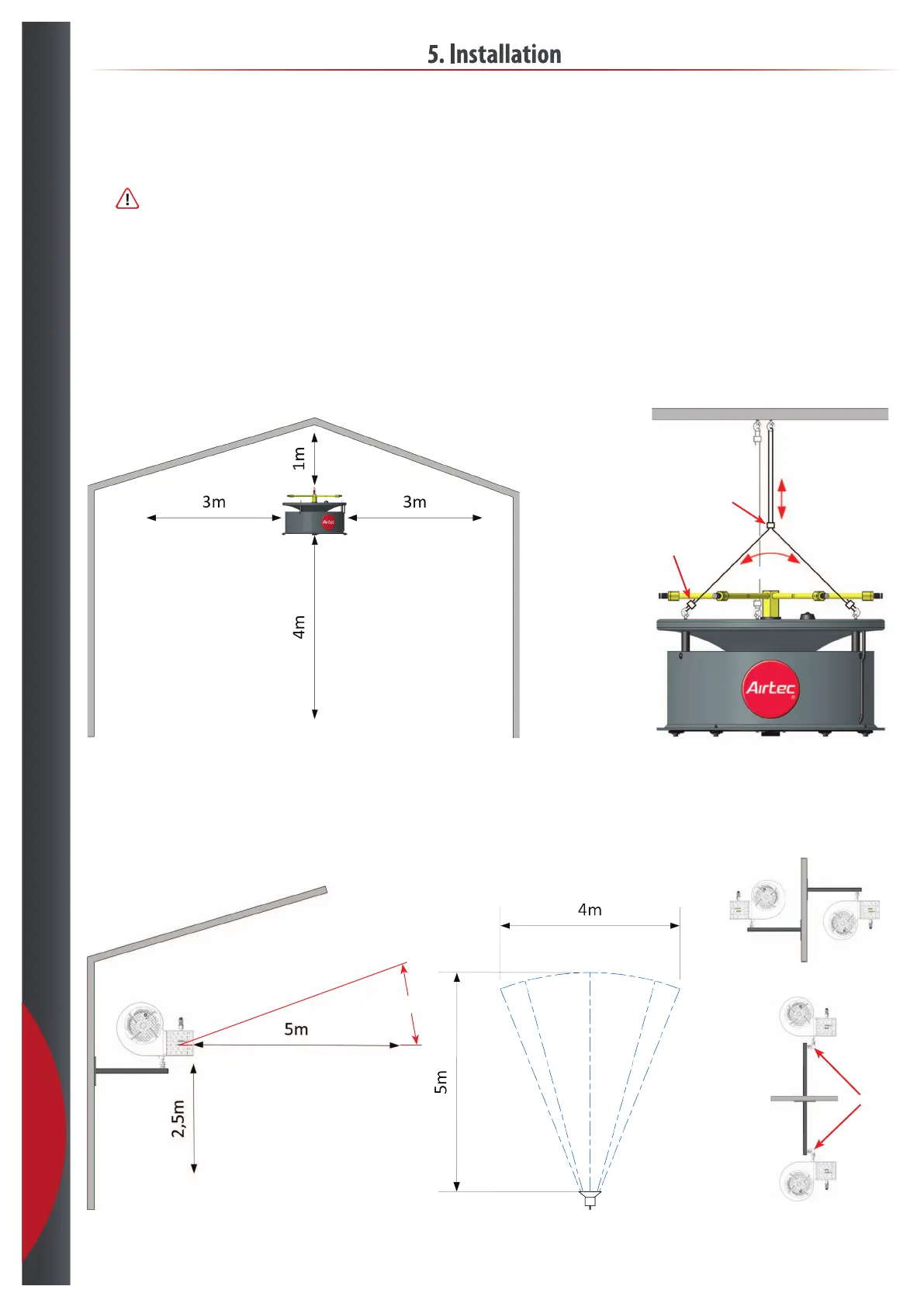

5. Installation
5.11 Atomizers
Position atomizers / HydroFlex
• Always position atomizers and ex nozzles so easy access is always available, to service the units.
•
Do not position atomizers above production equipment or stock goods.
• Follow installation specications heights, ambient operation temperature, and spray distances.
• Follow installation layout drawings and specications in order conrmation.
• Look out for air turbulence and locations with larger temperature variation.
• Do not position units and nozzles near larger gates, and doors with access direct to the outside.
- The eect of outdoor conditions can cause condensation, or larger variation in humidity.
Level back and forth
Use the wire triangle to level the HydroJet
Min. recommended installation distance at 18-20°C ≤ 65 %RH
Wirelock unpressed
Wirelock pressed
Min. recommended installation distance at 18-20°C ≤ 65 %RH Spray area Position HydroTrio
Level sideways
Elbow
