Airtec RO Plus l - Inline; Plus

32
5.6 RO Inline™
5.7
RO Plus™
80 cm
Supply water inlet Water out Drain Hygiene drain

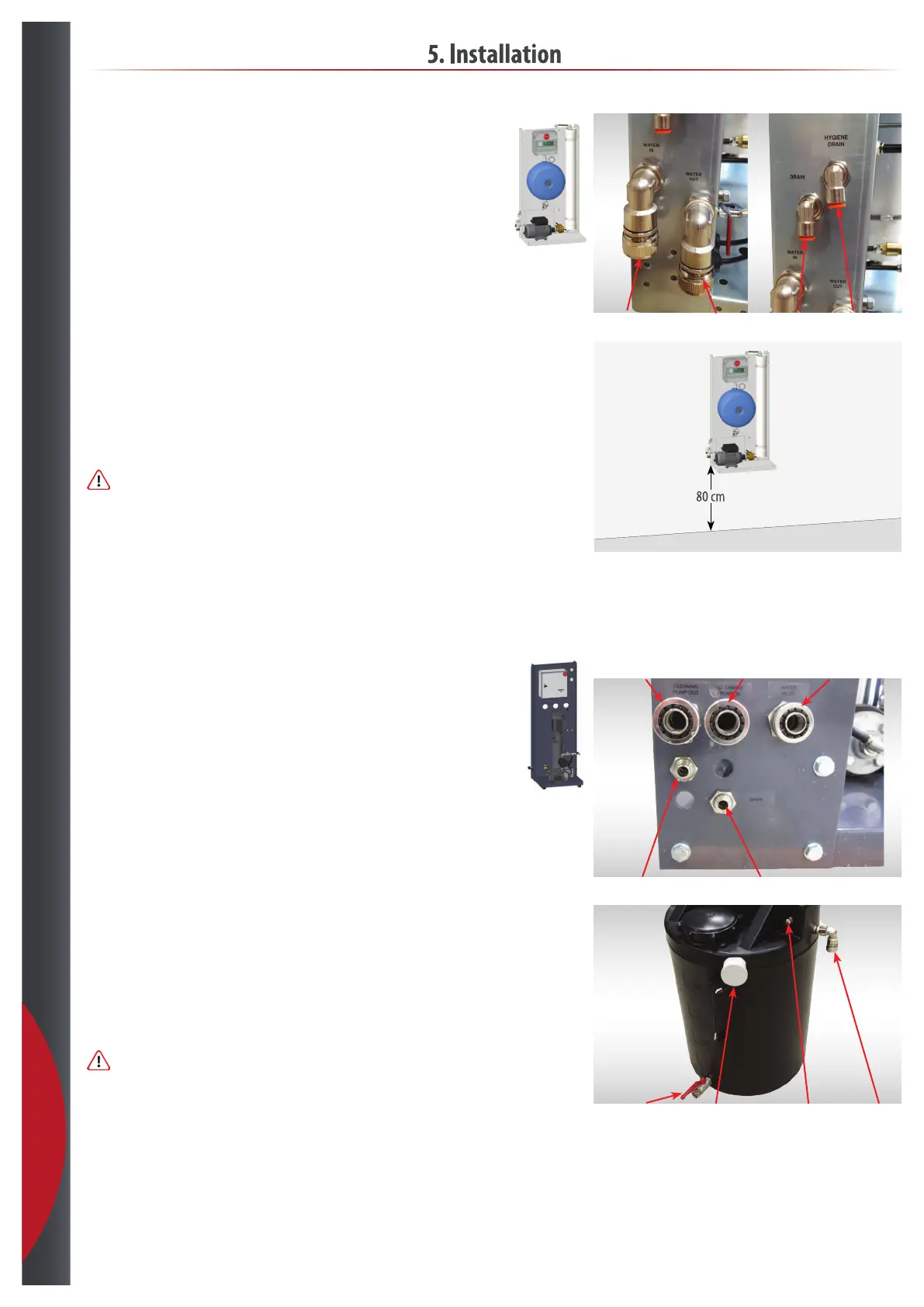

5. Installation
Positioning
• Install the RO Inline on an even surface wall with designed wall bracket
or
• Position the RO Inline on the oor against a wall and x it to the wall with
screws or a bracket.
Drain
• Drain for waste water has to be Ø40 mm, terminated 20 cm above oor level
Water connections
• Connect 10 mm hose to RO drain - lead it to drain
• Connect 10 mm hose to RO hygiene drain - lead it to drain
• Connect 3/4” hose to RO water out - lead it to drain during startup
- after startup, connect it to the humidication system
• Connect 3/4” water supply hose to RO water in
• Secure all hoses properly so they stay in position also during operation
• Turn o F1 and F2 in the control box
• Connect supply power
Make sure that all connections between RO and drain has no physical contact due to hygiene
Positioning
• Position the RO Plus on the oor 35 - 50 cm from the wall
- The booster supply pump should be below water outlet on tank
Drain
• Drain for waste water has to be Ø40 mm, terminated 20 cm above oor level
Water connections
• Connect water supply to water inlet on RO Plus™
• Connect 10 mm hose from permeate outlet
- Connect it to tank inlet
• Connect 10 mm hose from RO drain
- Lead it to drain
• Connect 3/4” hose from tank outlet
- Connect to Booster pump inlet
• Connect 3/4” hose from Booster pump outlet
- Connect to consumer
• Secure all hoses proper so they stay in position also during operation
• Install wire from RO control
- Connect it to connection box on the water tank
Make sure that all connections between RO and drain has no physical contact due to hygiene
Permeate outlet Drain
Tank outlet Connection box Tank inlet Tank overow
Booster pump outlet Booster pump inlet Supply water inlet
