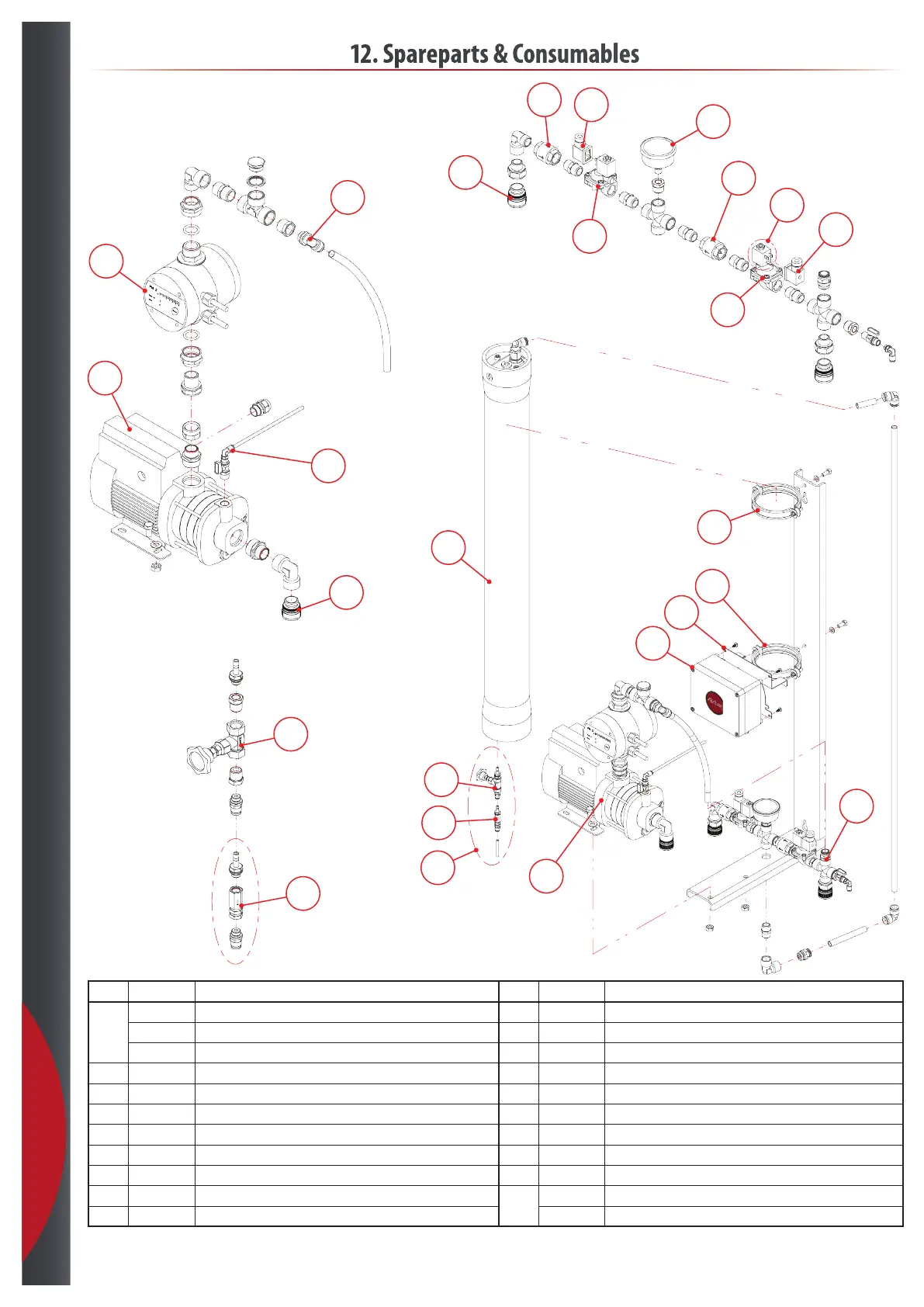

12. Spareparts & Consumables
Pos. Part no. Description Pos. Part no. Description
A1
176376 Pump RO Basic, complete - Sno. 327 - xx 8 211120 Solenoid valve 1/2” 24 AC
176369 Pump RO Basic, complete - Sno. 305 - 326 9 211116 Coil 24 V AC for 1/2” solenoid valve
176375 Pump RO Basic, complete - Sno. xx - 304 10 176410 Pressure gauge 0-10 bar
A4 365215 Non return valve for RO Basic, complete 11 202090 Membrane clamp
1 176319 Pump 12 365201 Mount for RO Basic controle box (needed for Sno. < 388)
2 161841 Press control 13 365214 Controlbox for RO Basic
3 365188 Valve for venting air 14 161810 Needle valve 1/4”
4 161312 Union 3/4” w/o-ring for 3/4” hose 15 161710 Non return valve 1/8”
5 164020 Sliplock elbow ø14 mm - 1/2” 16 177000 RO Basic drain
6 161720 Non return valve 1/2”
17
176224 Membrane Sno. 305 - xx
7 211155 Plug for 1/2” solenoid valve 176221 Membrane Sno. xx - 304
201218
