21
A1
A2
8
10 Nm
10 Nm
3/8” 15 Nm
1/2” 20 Nm

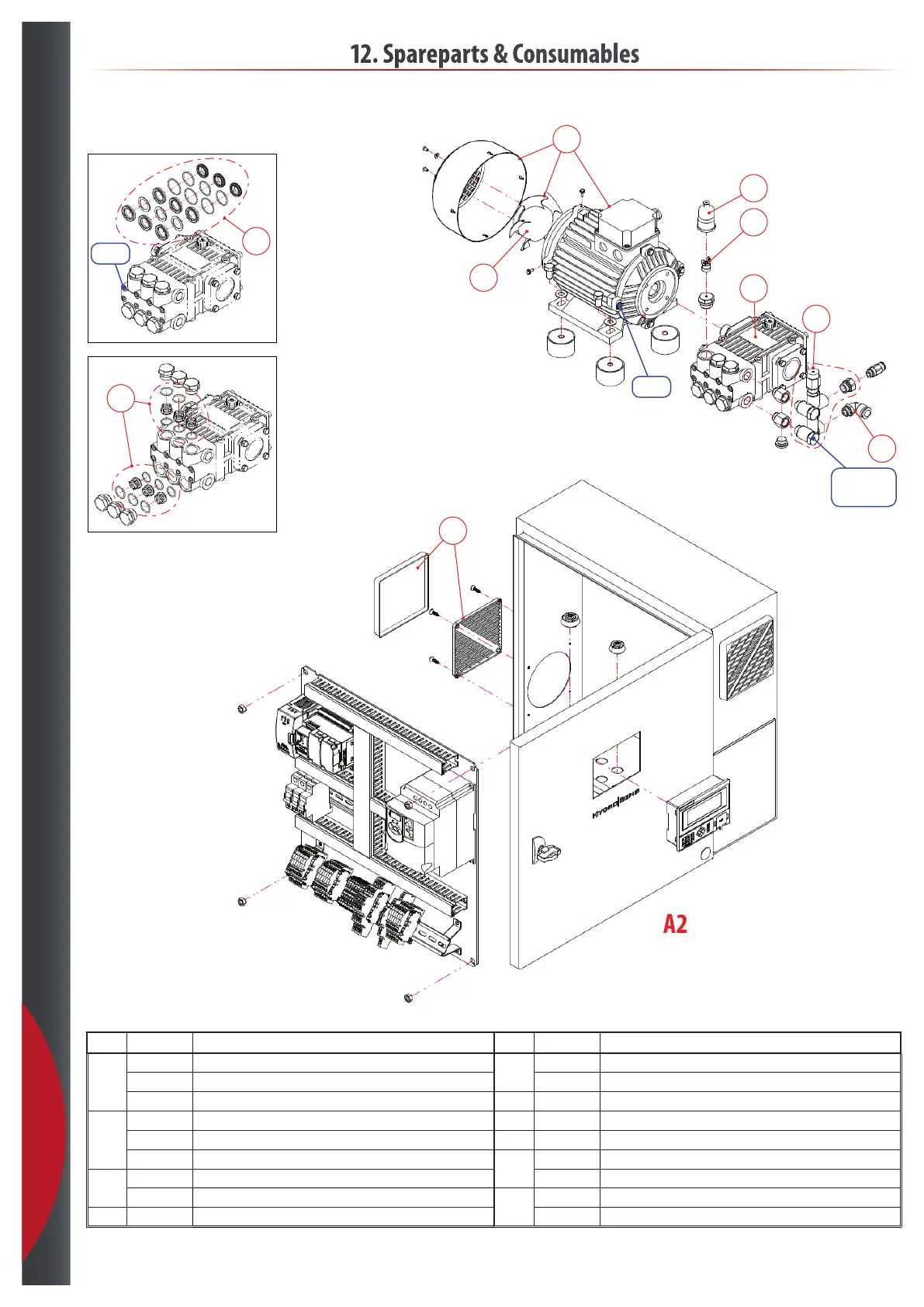

12. Spareparts & Consumables
Pos. Part no. Description Pos. Part no. Description
1
365325 Electrical motor complete 1,1 kw
5
111337 External ventilator 1,1 kW & 1,5 kW
365378 Electrical motor complete 1,5 kW 111370 External ventilator 2,2 kW
365382 Electrical motor complete 2,2 kW 6 365394 Temperature switch
2
201310 Pump 600 l/h 7 365638 Cap for temperature switch
201320 Pump 800 l/h 8 231250 Filter for control unit
201340 Pump 1200 l/h
9
201430 Sealing kit 600 l/h & 800 l/h
3
201410 By-pass 600 l/h & 800l/h 201432 Sealing kit 1200 l/h
201413 By-pass 1200 l/h
10
201420 Valve kit 600 l/h & 800 l/h
4 164025 Sliplock elbow ø14 mm - 3/8” 201437 Valve kit 1200 l/h
12.5 HydroSens™
201218
