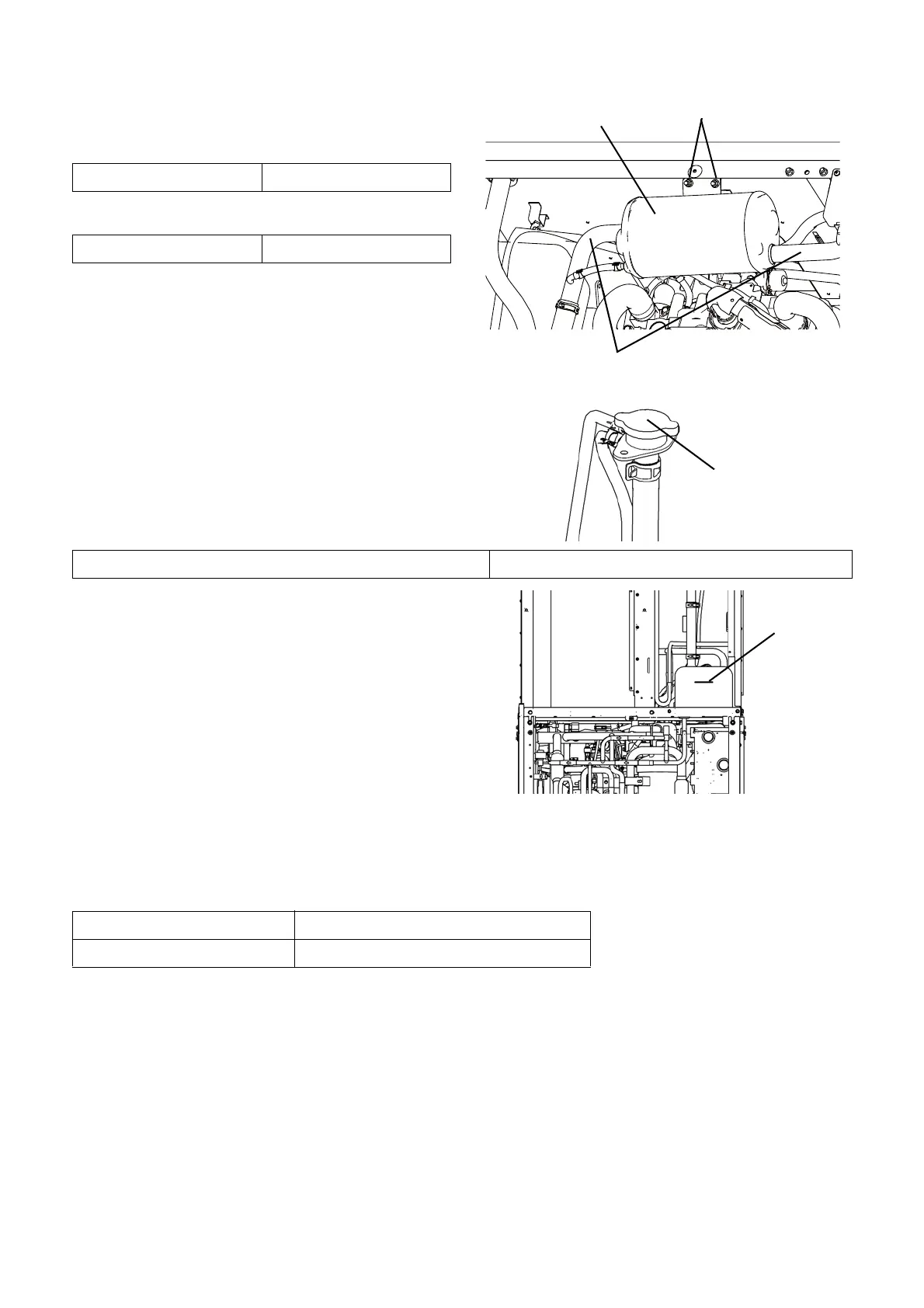

REPLACEMENT OF MAIN COMPONENTS
12. Mount the muffler.
1) Mount the muffler to the stay and tighten 2 nuts
lightly.
2) Tighten 2 nuts firmly.
NOTE) Be sure to tighten 2 nuts lightly and firmly.
3) Connect the 2 pipes at the outlet and inlet ports of
muffler, and install the muffler.
13. Refill the engine coolant.
1) Check that all the hoses are securely fixed.
2) Remove all the hose clippers clamping the hoses.
3) Open the radiator cap, and fill the radiator with the
engine coolant to the full capacity.
4) Check the engine coolant level in the reserve tank,
and refill the engine coolant until the engine coolant
reaches the reference line.
5) Run the engine coolant pump using check mode
"engine coolant refill mode (code No. OA)" of the
board maintenance functions.
6) Check the engine coolant level in the radiator. If the
level is low, refill the engine coolant until the engine
coolant level reaches the full level.
7) Repeat items 5) and 6) until the engine coolant level in the radiator does not lower any more, and close the cap.
8) Check the engine coolant level in the reserve tank, and refill the engine coolant until the engine coolant reach-
es the reference line.
14. Using a compression gauge, check that fuel gas is compressed to the specified pressure.
15. Run the engine and check that the engine runs without problems such as leakage of oil or engine coolant.
Muffler
Nuts
Pipes
Tightening torque 8.9 lb·ft (12.0 N·m)
Tightening torque 8.9 lb·ft (12.0 N·m)
Radiator cap
Engine coolant concentration (volumetric concentration) 50~60 vol% (engine coolant: 0.55, water: 0.45).
Reference line
Compression limit 160 psi (1.1 MPa)
Specified compression value 203 psi (1.4 MPa) or higher
