AISIN SEIKI E1 Series - Exhaust Water Drain Filter Inspection; Refilling

46
PERIODIC INSPECTION
6) Exhaust Water Drain Filter Inspection / Refilling

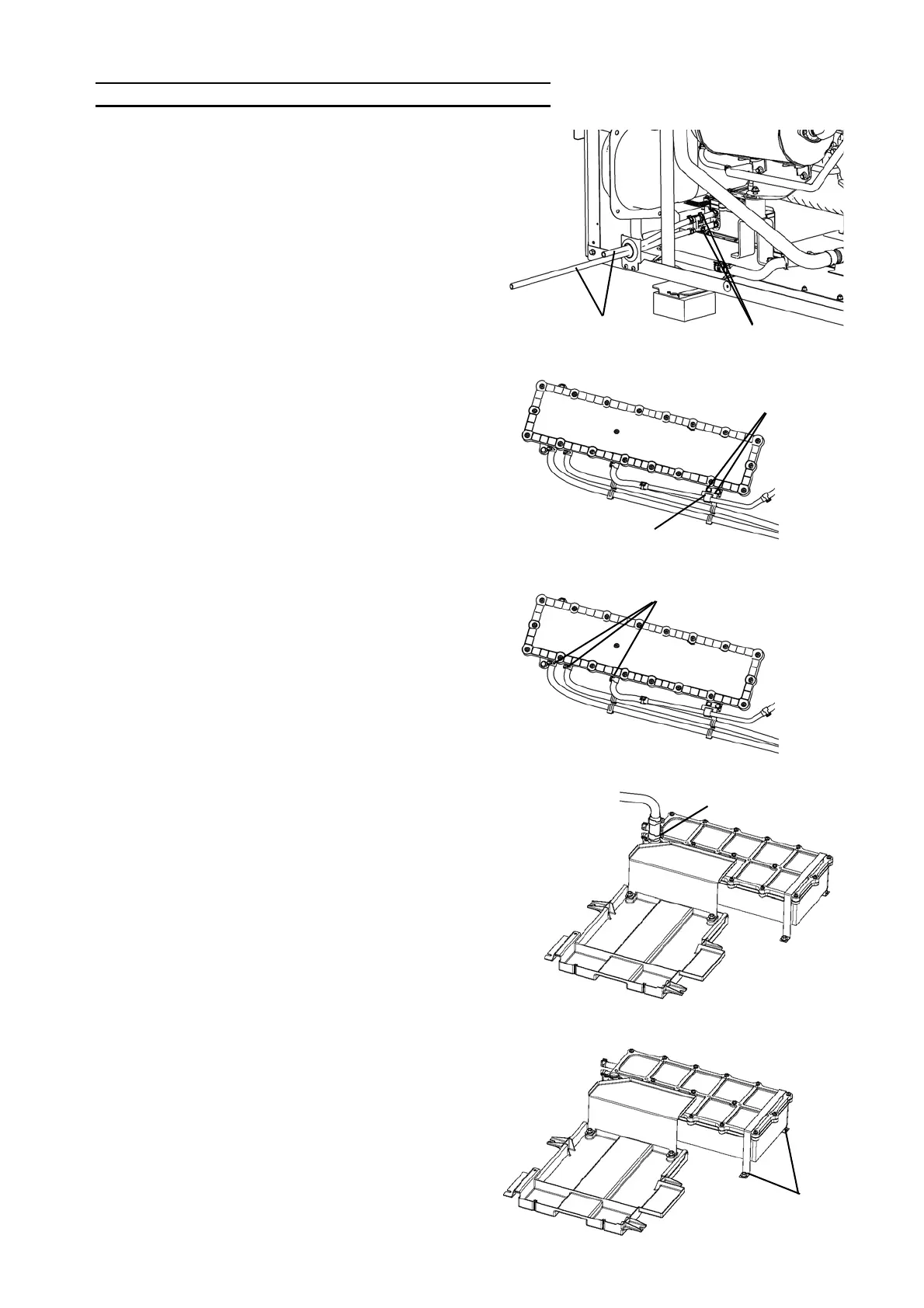

1. [ Unit with drain heater kit only ]
Move 2 clamps in the rear of the outdoor unit, and
remove the 2 exhaust water drain hose.
2. [ 8 TON only ]
1) Unscrew 2 bolts to remove the stay.
2) Move 3 hose clamps to pull the SUS pipe and the
3 exhaust water drain hoses.
3. [ 15 TON only ]
Move a lower clamp to remove the exhaust water
drain hose.
4. [ 15 TON only ]
Unscrew 2 nuts to remove the stay.
Exhaust water drain hoses
Clamps
Bolts
Stay
Clamps
Clamp
Nuts
