TROUBLESHOOTING
53) Check for Readings of the Outdoor Temperature Sensors
1. Check each outdoor temperature with the monitor mode of the board maintenance functions.
2. Measure actual temperature with a thermometer, and check for the sensor reading's extreme deviation from the
actual temperature.
3. Measure each sensor's resistance value at the terminals on the main board, and check for extreme deviation
from the standard value.

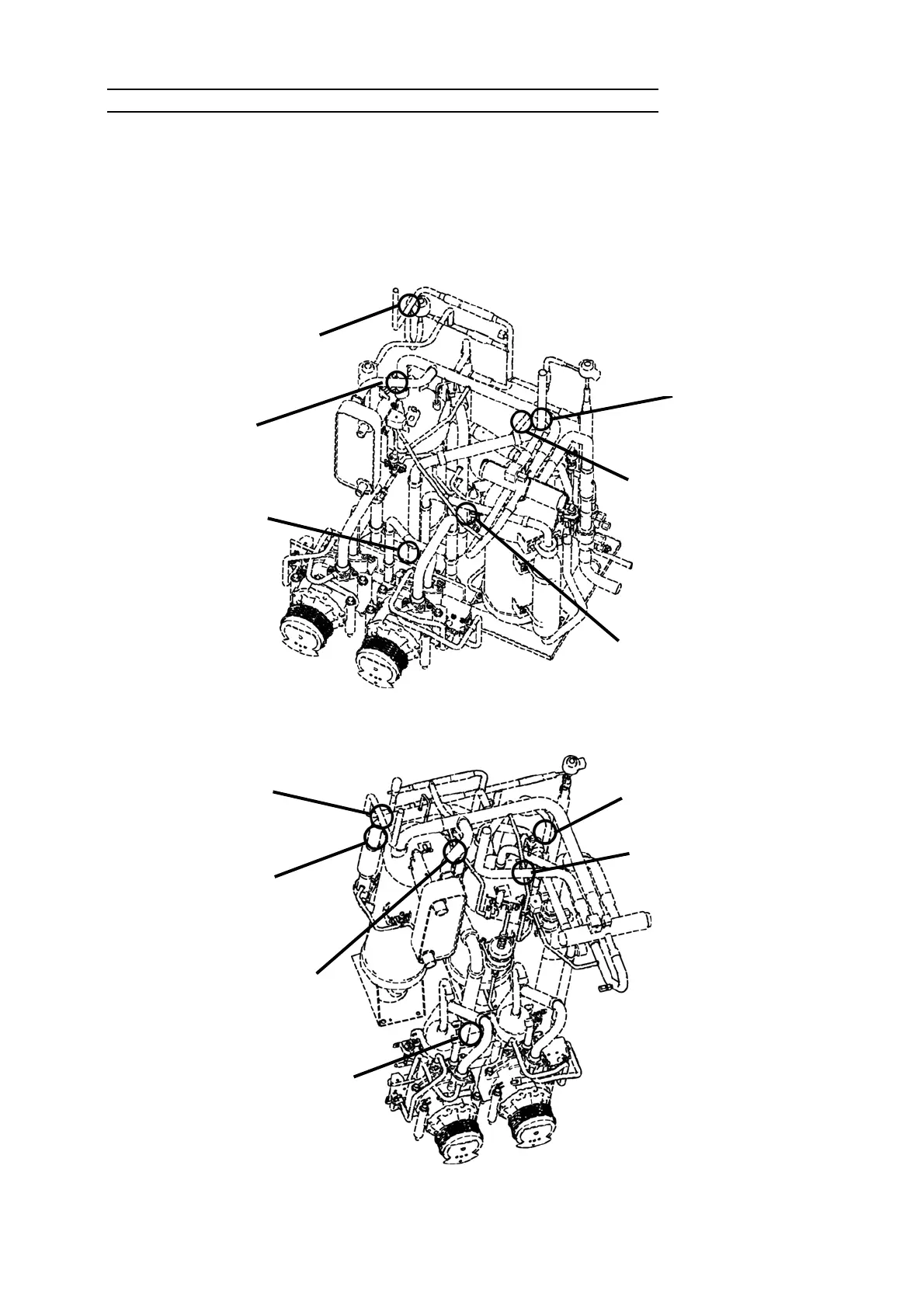

[ 8 TON ]
[ 15 TON ]
※ Engine compartment temperature sensor is attached on the top panel
Sub heat exchanger liquid
temperature sensor
Accumulator outlet temperature
sensor
Outdoor heat exchanger liquid
pipe temperature sensor
Outdoor liquid pipe temperature
sensor
Outdoor heat exchanger vapor
pipe temperature sensor
Compressor intake temperature
sensor
Compressor intake temperature
sensor
Outdoor heat exchanger vapor
pipe temperature sensor
Outdoor liquid pipe temperature
sensor
Sub heat exchanger liquid
temperature sensor
Accumulator outlet temperature
sensor
Outdoor heat exchanger liquid pipe
temperature sensor
※ Engine compartment temperature sensor is attached on the top panel
To Next Page
