29
Introduction

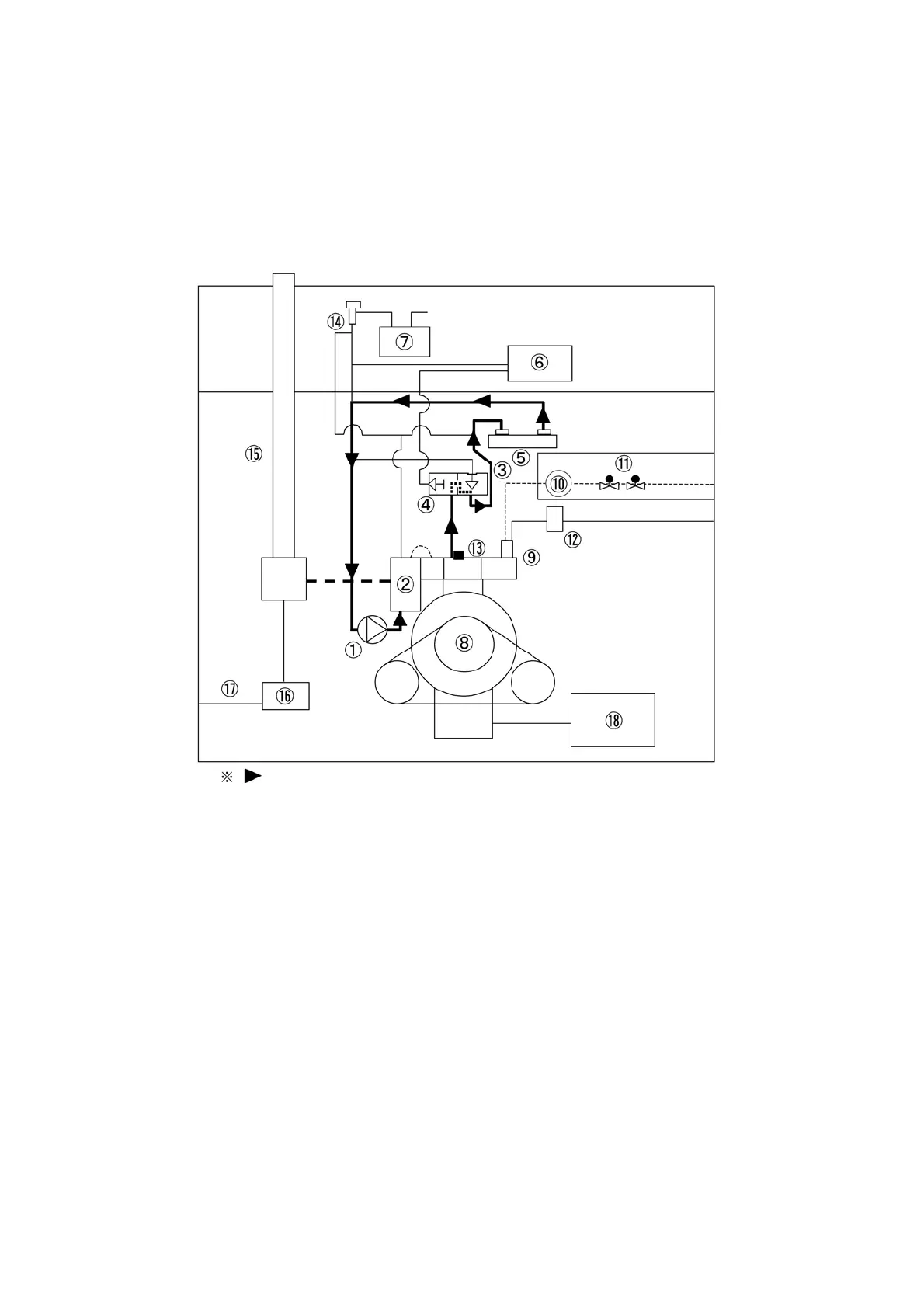

Engine coolant · · · b) When the engine coolant temperature is 140℉ (60 ℃ ) or higher and lower than 158 ℉ (70 ℃ )
Engine coolant flows into the sub heat exchanger ( ⑤ ) and heats refrigerant to increase
heating efficiency in heating operation. In low-temperature cooling, engine coolant enhanc-
es evaporation efficiency.
① : Engine coolant pump ⑦ : Engine coolant reserve tank ⑬ : Engine coolant temperature sensor
② : Exhaust air heat exchanger ⑧ : Engine ⑭ : Radiator cap
③ : Thermostat (140 ℉ (60 ℃ ) ⑨ : Gas mixer ⑮ : Exhaust air pipe
④ : Thermostat (158 ℉ (70 ℃ ) ⑩ : Gas regulator ⑯ : Exhaust water drain filter
⑤ : Sub heat exchanger ⑪ : Electromagnetic gas valve ⑰ : Exhaust water drain hose
⑥ : Radiator ⑫ : Air filter ⑱ : Sub oil reservoir
shows the coolant flow direction
