32
Introduction
Intake Air and
Exhaust Air · · ·

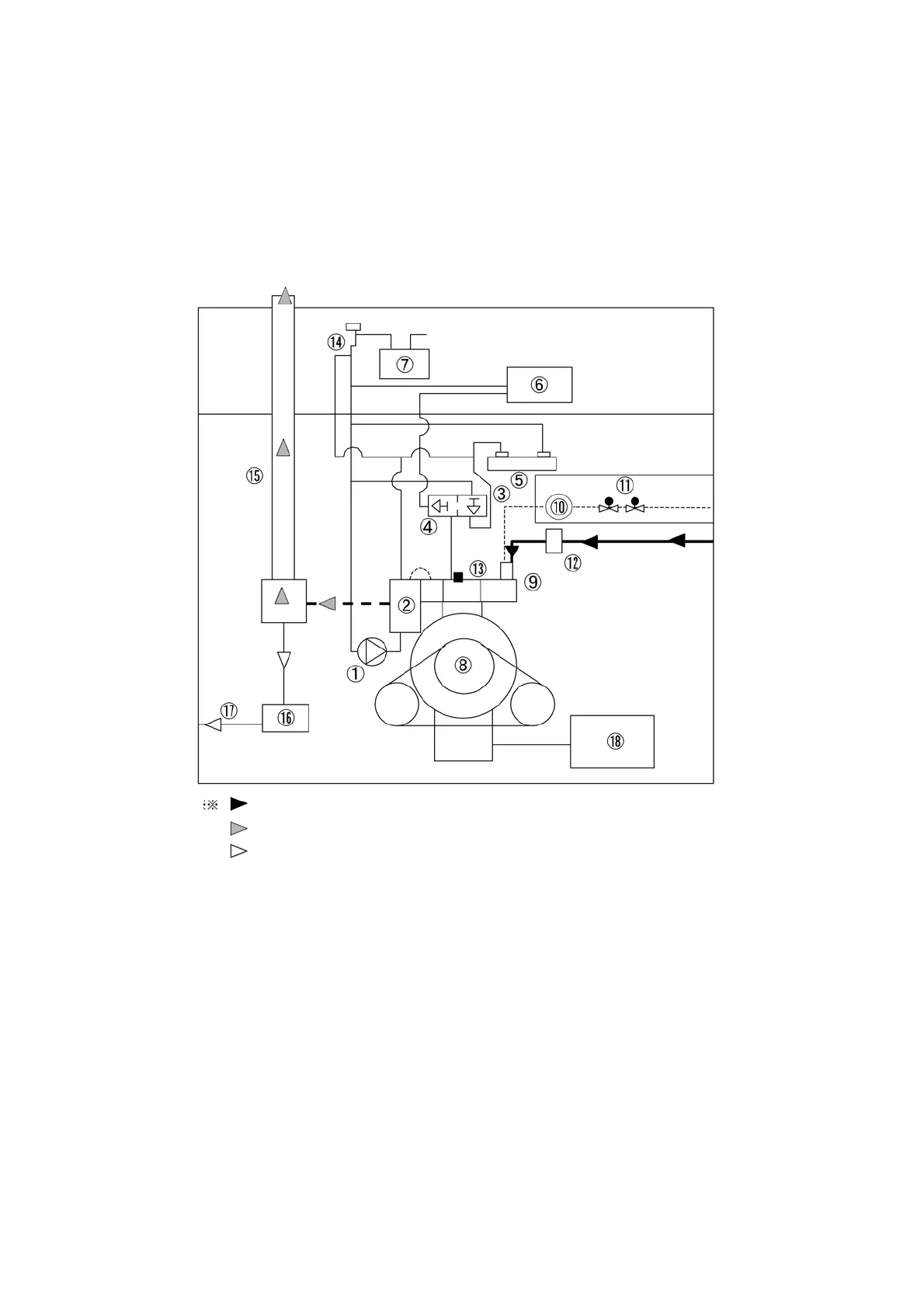

Intake air enters the gas mixer ( ⑨ ) through the air filter ( ⑫ ) to be mixed with the fuel. The air/fuel
mixture then flows into the engine ( ⑧ ) cylinder.
Exhaust air dissipates heat at the exhaust air heat exchanger ( ② ), and is emitted into the atmo-
sphere through an exhaust air pipe ( ⑮ ).
Condensed water produced by exhaust air heat dissipation is neutralized at the exhaust water
drain filter ( ⑯ ), and discharged from the unit through the exhaust water drain hose ( ⑰ ).
① : Engine coolant pump ⑦ : Engine coolant reserve tank ⑬ : Engine coolant temperature sensor
② : Exhaust air heat exchanger ⑧ : Engine ⑭ : Radiator cap
③ : Thermostat (140 ℉ (60 ℃ ) ⑨ : Gas mixer ⑮ : Exhaust air pipe
④ : Thermostat (158 ℉ (70 ℃ ) ⑩ : Gas regulator ⑯ : Exhaust water drain filter
⑤ : Sub heat exchanger ⑪ : Electromagnetic gas valve ⑰ : Exhaust water drain hose
⑥ : Radiator ⑫ : Air filter ⑱ : Sub oil reservoir
shows the intake air flow direction
shows the condensed water flow direction
shows the exhaust air flow direction
